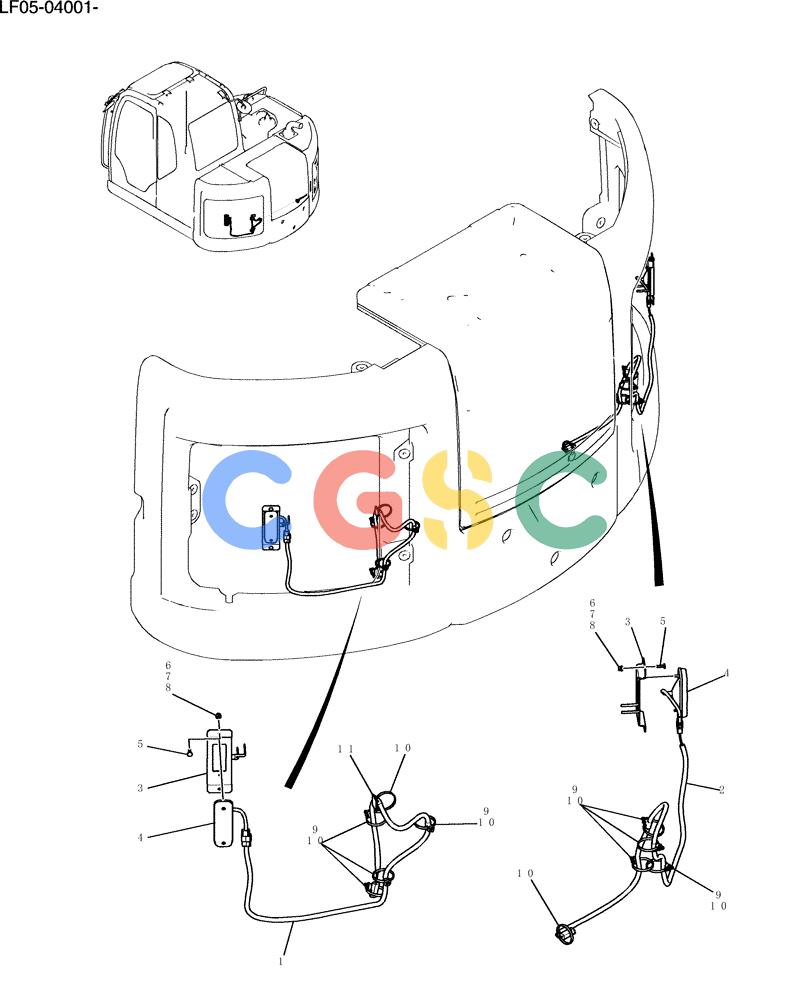

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (307-17[1]) - LAMP INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
529 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT80E00015F1 | [1] | Lamp Instal | |
| 1. | YT80E01013P1 | [1] | HARNESS | KOB |
| 2. | YT80E01014P1 | [1] | HARNESS | KOB |
| 3. | YY21C02749P1 | [2] | BRACKET | KOB |
| 4. | YY80S00001F1 | [2] | LAMP | KOBAssy |
| 5. | PH22C01023P1 | [4] | BOLT | KOB |
| 6. | ZN18C05004 | [4] | NUT | KOB |
| 7. | ZW16H05000 | [4] | WASHER | KOB |
| 8. | ZW26X05000 | [4] | LOCK WASHER | KOBLock |
| 9. | PY01P01043D3 | [10] | CABLE TIE,188mm L | KOB |
| 10. | YN13E01375P1 | [8] | CLIP,M8 x 8.20mm Shank | KOB |
| 11. | YT11E01043P1 | [1] | SPRING | SMClip |
