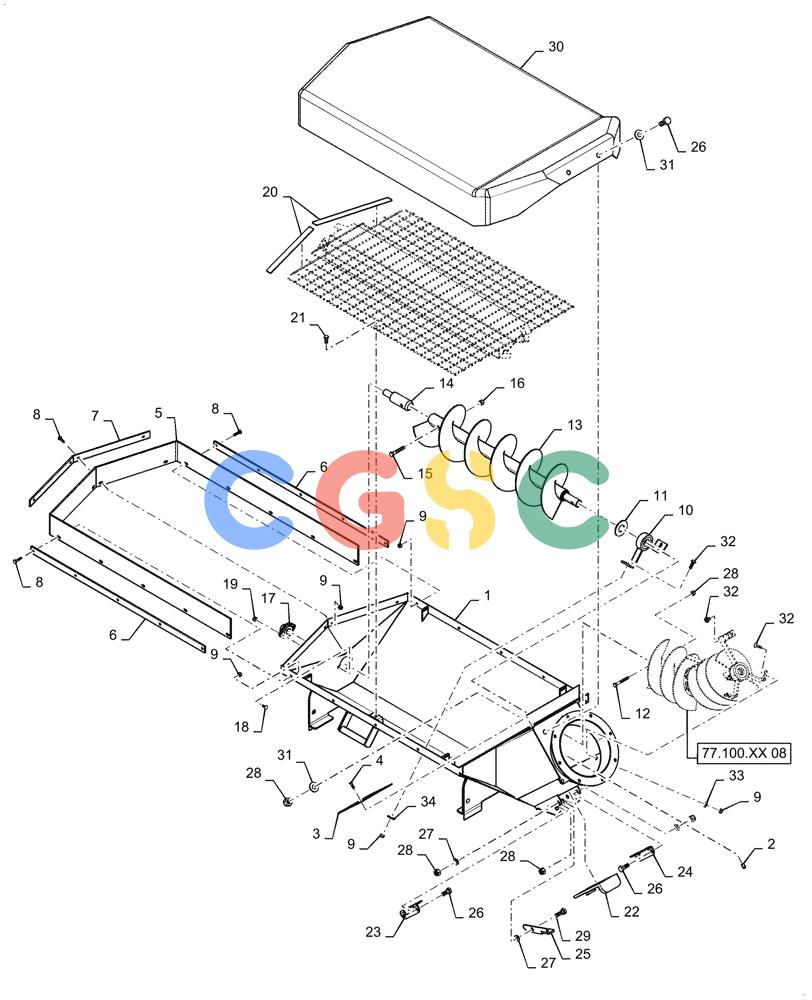

| 1. |
47773944
|
[1] |
TANK
|
SAS
Auger Hopper
|
| 2. |
87556072
|
[4] |
NUT,Flng, 11.8mm OD x 19.8mm L
|
ZED
|
| 3. |
47782500
|
[1] |
COVER
|
SAS
Acess With Decal
|
| 4. |
43127
|
[4] |
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 5. |
47780103
|
[1] |
TOP COVER
|
SAS
Rubber Hopper
|
| 6. |
47780570
|
[2] |
STRAP
|
SAS
Securing Side Black
|
| 7. |
47392035
|
[1] |
SECURING STRAP
|
SAS
End
|
| 8. |
43128
|
[14] |
BOLT,M8 x 1.25 x 30mm, Cl 8.8
|
NH
|
| 9. |
86629542
|
[19] |
NUT,M8 x 1.25, Cl 8.8
|
ZED
|
| 10. |
47842671
|
[1] |
SUPPORT
|
SAS
Auger
|
| 11. |
87370
|
[1] |
WASHER,1.38" ID x 3" OD x 0.17" Thk
|
GI
|
| 12. |
83931335
|
[1] |
BOLT,Hex, M10 x 1.5 x 75mm, Cl 8.8
|
ZED
|
| 13. |
47869113
|
[1] |
AUGER FLIGHT
|
SAS
Hopper
|
| 14. |
GL-655
|
[1] |
SHORT SHAFT
|
FLX
Bearing Stub
|
| 15. |
86505259
|
[1] |
BOLT,Hex, M12 x 1.75 x 70mm, Cl 10.9
|
NH
|
| 16. |
87533547
|
[1] |
NUT,Prev Torque, M12, 1.75mm Pitch, Cl 10
|
WIC
|
| 17. |
9549
|
[1] |
FLANGED BEARING
|
FLX
2 Hole Superseded by part number: 50591, 84330070, 47577183
|
| 18. |
280497
|
[2] |
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 3/4", Gr 5, Full Thd
|
NH
|
| 19. |
86629544
|
[2] |
NUT,5/16” – 18, GR B
|
NH
Superseded by part number: 280736
|
| 20. |
47776922
|
[2] |
SCREEN
|
SAS
Grate Hopper
|
| 21. |
81821889
|
[1] |
BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd
|
BAS
Superseded by part number: 280643
|
| 22. |
47408276
|
[1] |
DOOR
|
SAS
Cleanout
|
| 23. |
47411825
|
[1] |
CLIP
|
SAS
Door Left
|
| 24. |
47428381
|
[1] |
CLIP
|
SAS
Door Right
|
| 25. |
47411827
|
[1] |
LATCH
|
SAS
Cleanout Door
|
| 26. |
43139
|
[6] |
BOLT,M10 x 1.5 x 25mm, Cl 8.8
|
NH
Superseded by part number: 11106231
|
| 27. |
86511323
|
[5] |
WASHER,10.5mm ID x 20mm OD x 2mm Thk
|
NH
Superseded by part number: 14496621
|
| 28. |
100037
|
[8] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 29. |
43140
|
[1] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 30. |
47782726
|
[1] |
COVER
|
SAS
Hopper
|
| 31. |
378244
|
[4] |
WASHER,10.5mm ID x 24mm OD x 2mm Thk
|
NH
|
| 32. |
308761
|
[5] |
CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8
|
NH
|
| 33. |
86639313
|
[3] |
WASHER,9mm ID x 24mm OD x 2mm Thk
|
RAC
|
| 34. |
12644301
|
[2] |
WASHER,M10 x 35 x 3
|
TTF
Superseded by part number:
|
