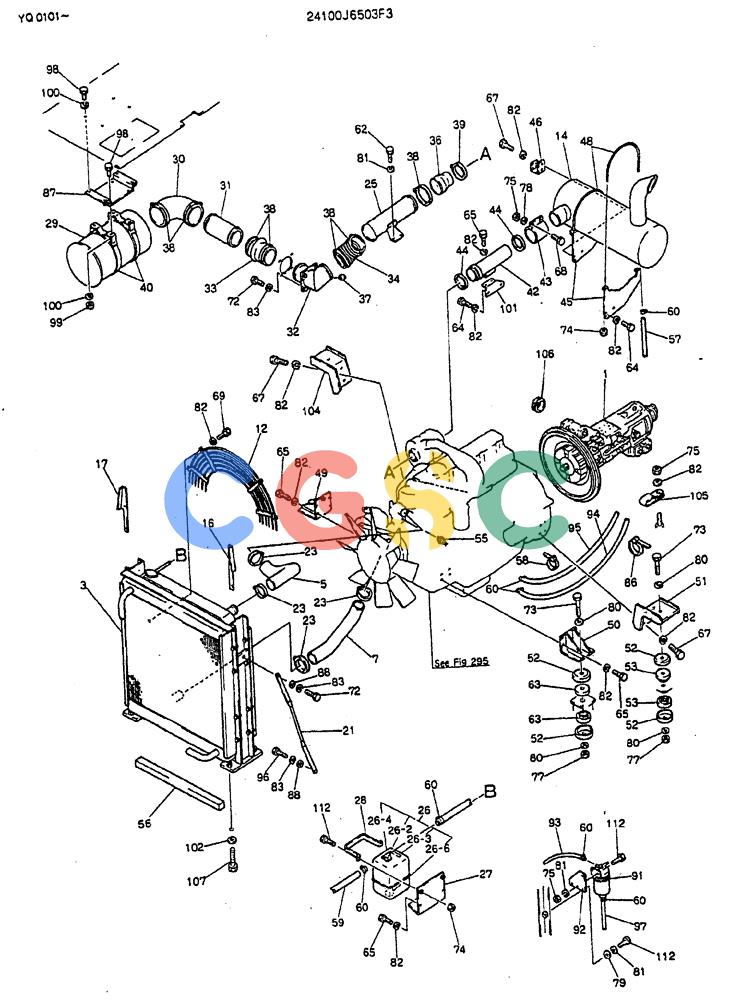

| . . | 24100J6503F3 | [1] | POWER PLANT ASSY | POWER PLANT ASSY |
| 1. | NSS | [1] | NOT SOLD SEPARAT | CONPUMP ASSY, CONNECT, SEE FIGURE 05-003 |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONRADIATOR ASSY, SEE FIGURE 05-005 |
| 5. | 2444R978 | [1] | FLEXIBLE HOSE | KOB |
| 7. | 2444R977 | [1] | FLEXIBLE HOSE | KOB |
| 12. | 2414N3901 | [1] | GUARD | KOB Superseded by part number: 2427N3151 |
| 14. | 2427U347D2 | [1] | MUFFLER | KOBMUFFLER Superseded by part number: 2427U347D3 |
| 16. | 2418T17523 | [1] | PLATE | PLATE |
| 17. | 2418T17524 | [1] | PLATE | PLATE |
| 21. | 2416T13420 | [2] | STAY | KOB |
| 23. | ZC15X06000 | [4] | CLIP | KOB |
| 25. | 2418P18247 | [1] | PIPE | KOB |
| 26. | 2427U203F3 | [1] | TANK | KOB |
| 26-2. | 2427U203S2 | [1] | HYD CONNECTOR | KOB |
| 26-3. | 2427U203S3 | [1] | LABEL | KOBPLATE, CAUTION |
| 26-4. | 2427U203S4 | [1] | TANK | KOB |
| 26-6. | 2427U203S6 | [1] | SWITCH | KOBRadiator Over Flow Level |
| 27. | 2416P8513 | [1] | BRACKET | BRACKET |
| 28. | 2415T10844 | [1] | BRACKET | |
| 29. | NSS | [1] | NOT SOLD SEPARAT | CONCLEANER ASSY, AIR, SEE FIGURE 05-004 |
| 30. | 2444Z1600D3 | [1] | ELBOW UNION | KOBUnion Elbow Superseded by part number: 2444R620 |
| 31. | 2418T17431 | [1] | PIPE | KOB |
| 32. | 2418P12383 | [1] | PIPE | |
| 33. | 2444Z1412D3 | [1] | PIPE | KOB |
| 34. | 2444R969 | [1] | FLEXIBLE HOSE | KOB |
| 35. | 2444Z2411 | [1] | FLEXIBLE HOSE | KOB |
| 37. | 2450R163F1 | [1] | INDICATOR | KOB Superseded by part number: LE11P01015F1 |
| 38. | ZC15X10500 | [7] | CLIP | KOBBAND |
| 39. | ZC15X07000 | [1] | CLIP | KOBBAND |
| 40. | 2432Z162D10 | [2] | BAND | BAND |
| 42. | 2418P12255 | [1] | EXHAUST SYSTEM PIPE | KOB |
| 43. | 2432R218 | [1] | CLAMP | KOB |
| 45. | 2416T13364 | [1] | BRACKET | BRACKET |
| 46. | 2416T20450 | [1] | BRACKET | BRACKET |
| 48. | 242074489 | [2] | U-BOLT | |
| 49. | 2416P8748 | [1] | BRACKET | BRACKET |
| 50. | 2416P8564 | [1] | BRACKET | KOB |
| 51. | 2416P5584D1 | [1] | BRACKET | KOB |
| 52. | 2414T1512 | [8] | COVER | KOB |
| 53. | 2416R145D2 | [4] | RUBBER SLEEVE | KOBCUSHION |
| 55. | 2479R546 | [1] | THERMOSTAT | KOBSWITCH |
| 56. | 2479T1181 | [1] | INSULATOR | KOB |
| 57. | 2420Z795D3 | [1] | HOSE | KOB Superseded by part number: HX11Y07100DX |
| 58. | 2432Z290D3 | [7] | CLIP | KOBWire Ties -- 154mm Long Superseded by part number: PY01P01043D3 |
| 59. | 2420Z912D7 | [1] | FLEXIBLE HOSE | KOB |
| 60. | ZC15X01000 | [10] | CLIP | KOB |
| 52. | ZS13C08025 | [2] | SCREW | KOBM08x1.25x25mm Superseded by part number: ZS18C08025, 77276313 |
| 53. | 2416R235D1 | [4] | RUBBER SLEEVE | KOBCUSHION |
| 54. | ZS13C10020 | [9] | SCREW | KOBM10x1.50x20mm Superseded by part number: ZS18C10020 |
| 65. | ZS13C10025 | [11] | CAPSCREW | KOBSCREW M10x1.50x25mm Superseded by part number: ZS18C10025 |
| 67. | ZS13C10030 | [10] | SCREW | KOBM10x1.50x30mm Superseded by part number: ZS18C10030 |
| 68. | ZS13C10035 | [2] | SCREW | KOBM10x1.50x35mm Superseded by part number: ZS18C10035 |
| 69. | ZS18F10020 | [4] | BOLT,Hex, M10 x 20mm | KOBM10x1.25x20mm |
| 72. | ZS13C12025 | [6] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 73. | ZS13C18120 | [4] | CAPSCREW M18x2.0x120mm | CAPSCREW M18x2.0x120mm |
| 74. | ZN13C08007 | [14] | NUT | KOBM08x1.25mm Superseded by part number: ZN18C08007 |
| 75. | ZN13C10008 | [5] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 77. | ZN13C18015 | [4] | NUT | KOBM18x2.5mm |
| 78. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 79. | ZW11X08000 | [2] | WASHER | KOBID 09 x OD 17 x Th 1.6mm Superseded by part number: ZW16X08000 |
| 80. | R16T0152D13 | [8] | WASHER | KOBFlat -- ID 19 x OD 40 x Th 4.5mm |
| 81. | ZW22X08000 | [5] | LOCK WASHER | KOBID 08 x OD 15.4 x Th 2.0mm Superseded by part number: 83990583 |
| 82. | ZW22X10000 | [33] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 83. | ZW22X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 86. | 2432Z290 | [6] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 87. | 2416P8730 | [1] | BRACKET | KOB |
| 88. | ZW13H12000 | [4] | WASHER | KOB |
| 91. | NSS | [1] | NOT SOLD SEPARAT | CONFILTER ASSY, SEE FIGURE 05-007 |
| 92. | 2418T17674 | [1] | PLATE | |
| 93. | 4O18Z1D33 | [1] | HOSE | |
| 94. | 4018Z1D28 | [1] | TUBE | KOB |
| 95. | 4018Z1D7 | [1] | HOSE | KOB |
| 96. | ZS13C12035 | [2] | CAPSCREW | KOBSCREW M12x1.75x35mm Superseded by part number: ZS18C12035 |
| 97. | 4018Z1D12 | [1] | HOSE | HOSE |
| 98. | ZS18C10025 | [8] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 99. | ZN16C10008 | [4] | NUT | KOBM10x1.50mm Superseded by part number: ZN18C10008 |
| 100. | ZW26X10000 | [8] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 101. | 2416T13363 | [1] | BRACKET | KOB |
| 102. | ZW16X16000 | [4] | WASHER | KOBID 16 x OD 30 x Th 3.2mm |
| 104. | 2416P5584D2 | [1] | BRACKET | KOB |
| 105. | ZC47X16011 | [2] | CLIP | KOB |
| 106. | 2420T3483 | [1] | GROMMET | KOB |
| 107. | ZS13C16070 | [4] | SCREW | KOBM16x2.0x70mm |
| 112. | ZS13C08030 | [6] | SCREW | KOBM08x1.25x30mm Superseded by part number: ZS18C08030 |
| 44. | VAME013710 | [2] | SEAL RETAINER | KOBRING, MITSUBISHI PARTS NO. |
