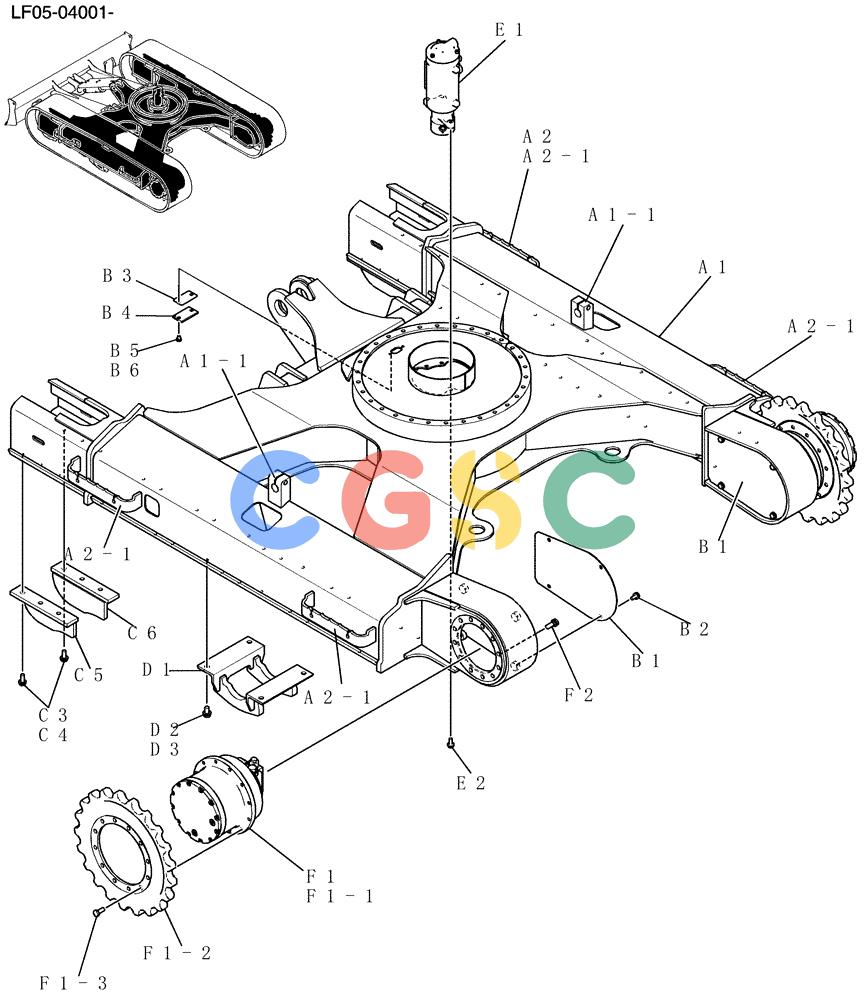

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (330-18[1]) - FRAME ASSY, LOW New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
546 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF02F00015F1 | [1] | Frame Assy, Low | |
| . . | LF02F00016F1 | [1] | Frame Assy, Low | |
| A1. | LF02F00017P1 | [1] | Frame, Low | |
| A1-1. | YT07F01080P1 | [2] | SUPPORT | KOB |
| A2. | YT02F00076P1 | [1] | FRAME | KOBFrame, Low |
| A2-1. | YY41C00013P1 | [4] | STEP | KOB Superseded by part number: YY41C00021P1 |
| . . | YT01F00007F1 | [1] | Low Group | |
| B1. | YT01F01019P1 | [2] | COVER | KOB |
| B2. | ZM73C12025 | [8] | BOLT,M12x25mm - Course Thread | KOBSems |
| B3. | 2418T12274 | [1] | PACKING | KOBRubber |
| B4. | 2422T556 | [1] | PLATE | KOB |
| B5. | ZW26X10000 | [2] | LOCK WASHER | KOB |
| B6. | ZS18C10014 | [2] | SCREW,Hex, M10 x 14mm | KOBCap |
| . . | YT01F00008F1 | [1] | Low Group | |
| C3. | 2418T17441D1 | [12] | WASHER | KOB |
| C4. | ZS13C14035 | [12] | CAPSCREW | KOBSCREW Cap Superseded by part number: ZS18C14035 |
| C5. | YT01F01015P1 | [2] | GUIDE | KOB |
| C6. | YT01F01016P1 | [2] | GUIDE | KOB |
| . . | YT01F00009F1 | [1] | Low Group | |
| D1. | YT63D00005P1 | [2] | GUIDE | KOBTrack |
| D2. | ZW16H16000 | [8] | WASHER | KOB |
| D3. | ZS18C16030 | [8] | SCREW,Hex, M16 x 30mm | KOBCap |
| . . | YT19H00026F1 | [1] | Joint Instal, Swivel | |
| E1. | YT55V00009F1 | [1] | SWIVEL PIVOT | KOBJoint Assy |
| E2. | ZM73C12030 | [3] | BOLT,M12x30mm - Course Thread | KOBSems |
| . . | YT53D00001F1 | [1] | Motor Instal, Propel | |
| F1. | YT53D00002F1 | [2] | HYDRAULIC MOTOR | KOBMotor Assy, Propel |
| F1-1. | YT15V00012F1 | [1] | MOTOR | KOBAssy, Propel |
| F1-2. | 2404N267 | [1] | SPROCKET | KOB |
| F2. | LE53D01001P1 | [24] | SCREW | KOBCap |
