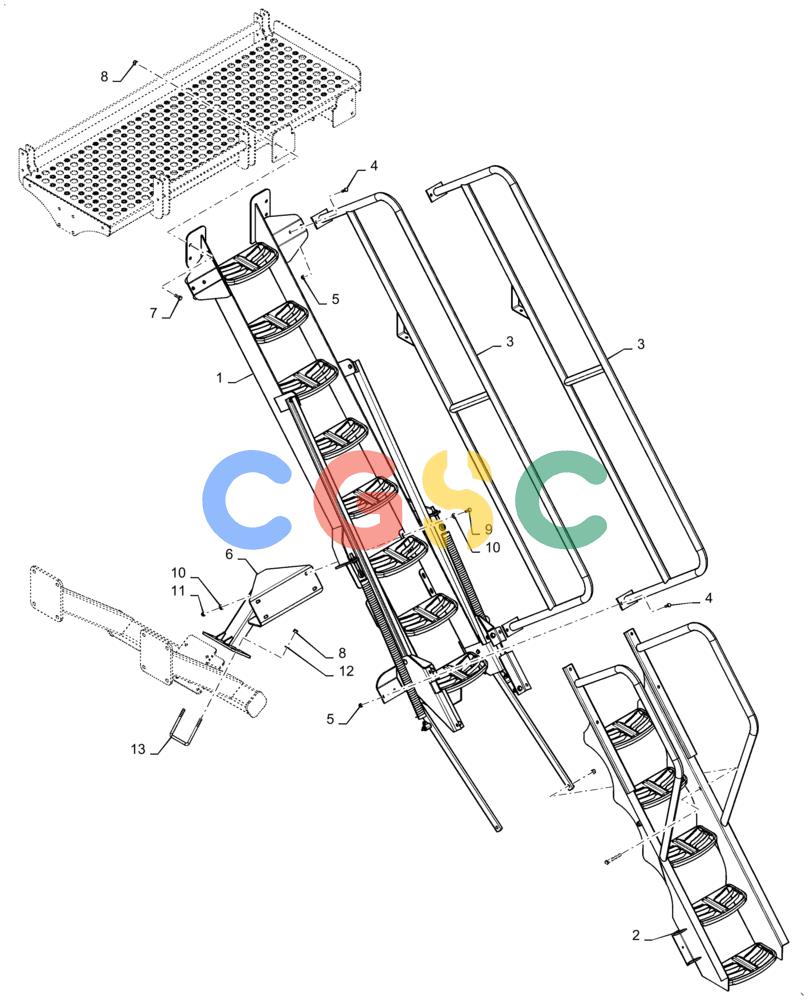

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (80.150.AJ[06]) - FOLDING STAIRS 350,435,460,555,580 BUSHELL Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
873 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47466088
|
[1] |
LADDER
|
SAS
Upper Black
|
| 2. |
47543077
|
[1] |
LADDER
|
SAS
Lower Black
|
| 3. |
47457717
|
[2] |
HANDRAIL
|
SAS
|
| 4. |
43140
|
[8] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 5. |
100037
|
[8] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 6. |
47461783
|
[1] |
BRACKET
|
SAS
Mounting Stairs Tow Behind
|
| 6. |
47538165
|
[1] |
BRACKET
|
SAS
Mounting Tow Between
|
| 7. |
9706687
|
[4] |
BOLT,M12 x 1.75 x 30mm, Cl 8.8
|
NH
|
| 8. |
100038
|
[8] |
NUT,M12 x 1.75, Cl 8
|
NH
|
| 10. |
86625253
|
[8] |
WASHER,11mm ID x 24mm OD x 2mm Thk
|
FAR
|
| 12. |
86511324
|
[4] |
WASHER,13mm ID x 24mm OD x 2.5mm Thk
|
NH
Superseded by part number: 87364
|
| 13. |
47592783
|
[2] |
U-BOLT,M12 x 1.75, Square, 106mm W x 140mm L
|
SAS
|
