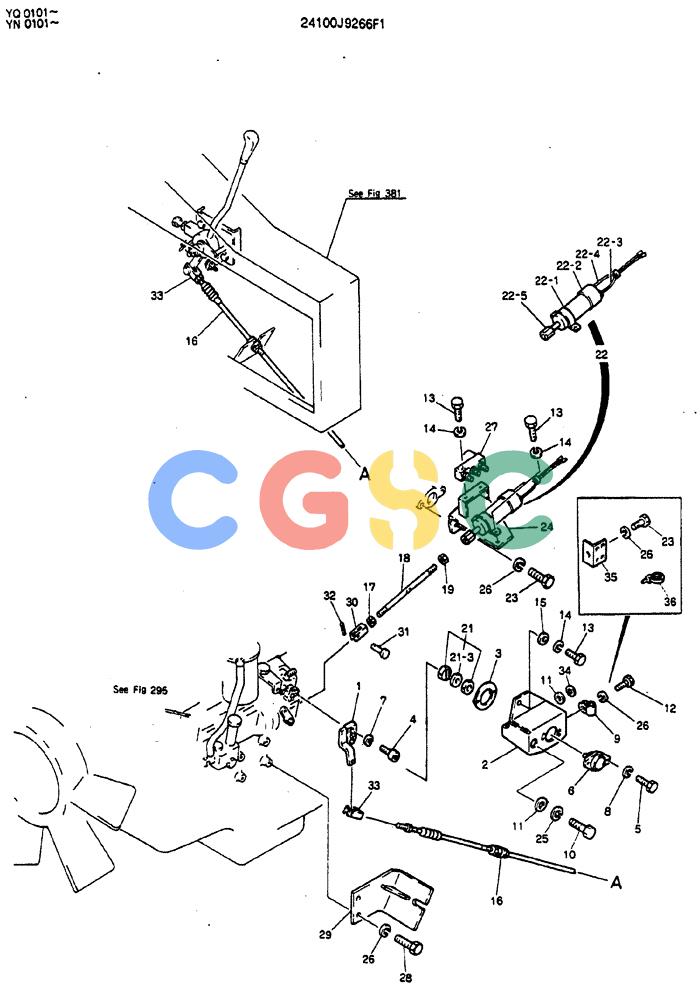

| . . | 24100J9266 F1 | [1] | CONTROL ASSY, ENGINE | |
| 1. | 2406T2629 | [1] | LEVER | KOB |
| 2. | 2416N3398 | [1] | BRACKET, Serial Range: YQ0101-YQ0571 | |
| . . | 2416N5337 | [1] | BRACKET | KOB, Start Serial: YQ0572 |
| 3. | 2418T18121 | [1] | PLATE | KOB |
| 4. | ZS23C06020 | [2] | SCREW,Hex Socket Head, M6 x 20mm | KOBM06x1.0x20mm Superseded by part number: ZS28C06020 |
| 5. | ZS18C05020 | [2] | BOLT,Hex, M5 x 20mm | KOBM05x0.8x20mm |
| 6. | 2489Z315 | [1] | POTENTIOMETER | KOBSENSOR Potentiometer |
| 7. | ZW22K06000 | [2] | LOCK WASHER | KOBID 06 x OD 10 x Th 1.5mm |
| 8. | ZW26X05000 | [2] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 9. | ZC45X19011 | [1] | CLIP | CLIP |
| 10. | ZS23C08012 | [1] | SCREW,Hex Socket Head, M8 x 12mm | KOBM08x1.25x12mm |
| 11. | ZW16X08000 | [1] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm, Serial Range: YQ0101-YQ0118 |
| . . | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm, Start Serial: YQ0119 |
| 12. | ZS18C10016 | [1] | SCREW,Hex, M10 x 16mm | KOBM10x1.50x16mm, Serial Range: YQ0101-YQ0133 |
| 13. | ZS18C06020 | [5] | SCREW,Hex, M6 x 20mm | KOBM06x1.0x20mm |
| 14. | ZW26X06000 | [5] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 15. | ZW16H06000 | [1] | WASHER | KOBID 06 x OD 15 x Th 3.2mm |
| 16. | 2406R245D5 | [1] | FLEXIBLE CONTROL | KOB Superseded by part number: 2406R265D5 |
| 17. | 2420T4495 | [1] | NUT | KOB |
| 18. | 2420T4557 | [1] | ROD | KOB |
| 19. | ZN18C06005 | [1] | NUT | KOBM06x1.0mm |
| 21. | 2418Z724 | [1] | COUPLING | KOB, Serial Range: YQ0101-YQ0564 Superseded by part number: 2418R528 |
| . . | 2418Z741 | [1] | COUPLING | KOB, Start Serial: YQ0565 Superseded by part number: 2418R528 |
| 21-3. | 2418Z724S3 | [1] | COUPLING DISK, TORQUE, Serial Range: YQ0101-YQ0564 | COUPLING DISK, TORQUE, Serial Range: YQ0101-YQ0564 |
| . . | 2418Z741S3 | [1] | DISK DRILL | KOBTORQUE, Start Serial: YQ0565 |
| 22. | 2480R157F1 | [1] | SOLENOID | KOB |
| 22-1. | 2479U722 | [1] | SOLENOID | KOB |
| 22-2. | 2414Z284 | [1] | BOOT | KOB Superseded by part number: 2414Z287 |
| 22-3. | 2479Z1432 | [1] | WIRE HARNESS | KOB |
| 22-4. | 2479Z1431 | [1] | HARNESS | HARNESS |
| 22-5. | 2420Z1213 | [1] | FLEXIBLE JOINT | KOB |
| 23. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm, Serial Range: YQ0101-YQ0133 |
| . . | ZS18C10020 | [3] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm, Start Serial: YQ0134 |
| 24. | 2416P12118 | [1] | BRACKET | KOB |
| 25. | ZW22K08000 | [1] | LOCK WASHER | KOBID 08 x OD 13 x Th 2.0mm |
| 26. | ZW26X10000 | [5] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 28. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 29. | 2416P12067 | [1] | BRACKET | KOB |
| 30. | R06T0042D3 | [1] | ROD | KOBEND |
| 31. | 2419T3314 | [1] | PIN | KOB |
| 32. | ZP15K01610 | [1] | COTTER PIN | KOBSPLIT Superseded by part number: ZP15K01615 |
| 33. | 2406T2373 | [2] | ROD | KOBEND Superseded by part number: PH03M01517F1 |
| 34. | ZW26X08000 | [1] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm, Start Serial: YQ0119 Superseded by part number: 83990583 |
| 35. | 2416T20163 | [1] | BRACKET, Start Serial: YQ0134 | |
| 36. | 2432Z290D3 | [2] | CLIP | KOBWire Ties -- 154mm Long, Start Serial: YQ0134 Superseded by part number: PY01P01043D3 |
| 27. | VAME067626 | [1] | RELAY | KOBHEATER, MITSUBISHI PARTS NO. Superseded by part number: VAME049306 |
