纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (421-71-1[1]) - DOZER ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
358 次

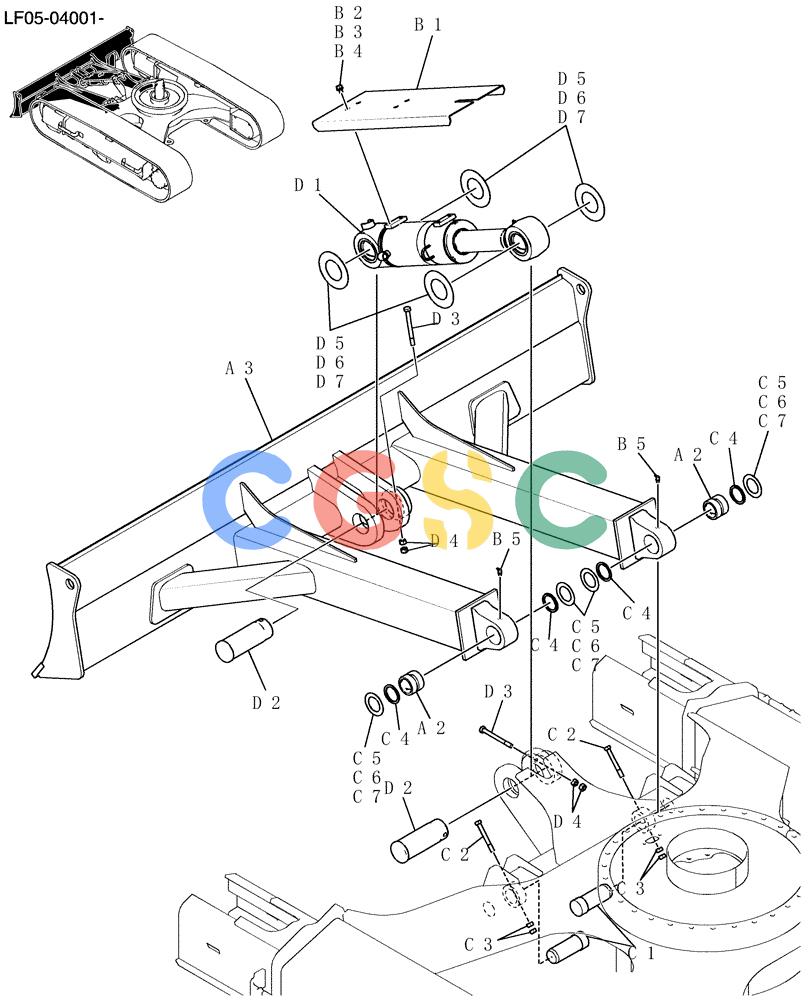

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | LF51B00038F2 | [1] | Dozer Assy | |
| . . | LF51B00034F2 | [1] | DOZER BLADE | KOBDozer Assy |
| A2. | YT51B01002P1 | [2] | BUSHING | KOB |
| A3. | NSS | [1] | NOT SERVICED SEPARATELY | CONDozer |
| . . | YT51B00003F1 | [1] | DOZER | KOBGroup |
| B1. | YT51B01006P1 | [1] | COVER | KOB |
| B2. | ZS18C10016 | [4] | SCREW,Hex, M10 x 16mm | KOBCap |
| B3. | ZW16X10000 | [4] | WASHER | KOB |
| B4. | ZW26X10000 | [4] | LOCK WASHER | KOB |
| B5. | ZG91V02000 | [2] | LUBE NIPPLE | KOBGrease |
| . . | YT51B00059F1 | [1] | Dozer Instal | |
| C1. | YT51B01109P1 | [2] | PIN | KOB |
| C2. | HS18C12100G2 | [2] | SCREW | KOBCap |
| C3. | ZN18C12010 | [4] | NUT | KOB |
| C4. | 2445R138D1 | [4] | SEAL,50mm ID x 64mm OD | KOBDust |
| C5. | B16T0442D25 | [2] | SHIM,80mm OD x 52mm ID x 1.2mm Thk | KOB |
| C6. | B16T0442D23 | [2] | SHIM,80mm OD x 52mm ID x 1.6mm Thk | KOB(1. 6) |
| C7. | B16T0442D24 | [2] | SHIM,80mm OD x 52mm ID x 2.3mm Thk | KOB |
| . . | LF51B00041F1 | [1] | Cylinder Instal | |
| D1. | LF01V00008F1 | [1] | LIFT CYLINDER | KOBAssy, Dozer |
| D2. | YT51B01004P1 | [2] | PIN | KOB |
| D3. | HS18C12125G2 | [2] | SCREW | KOBCap |
| D5. | B16T0442D1 | [2] | SHIM,130mm OD x 72mm ID x 1.2mm Thk | KOB(1. 2) |
| D6. | B16T0442D2 | [2] | SHIM,130mm OD x 72mm ID x 1.6mm Thk | KOB(1. 6) |
| D7. | B16T0442D5 | [2] | SHIM,130mm OD x 72mm ID x 2.3mm Thk | KOB(2. 3) |
