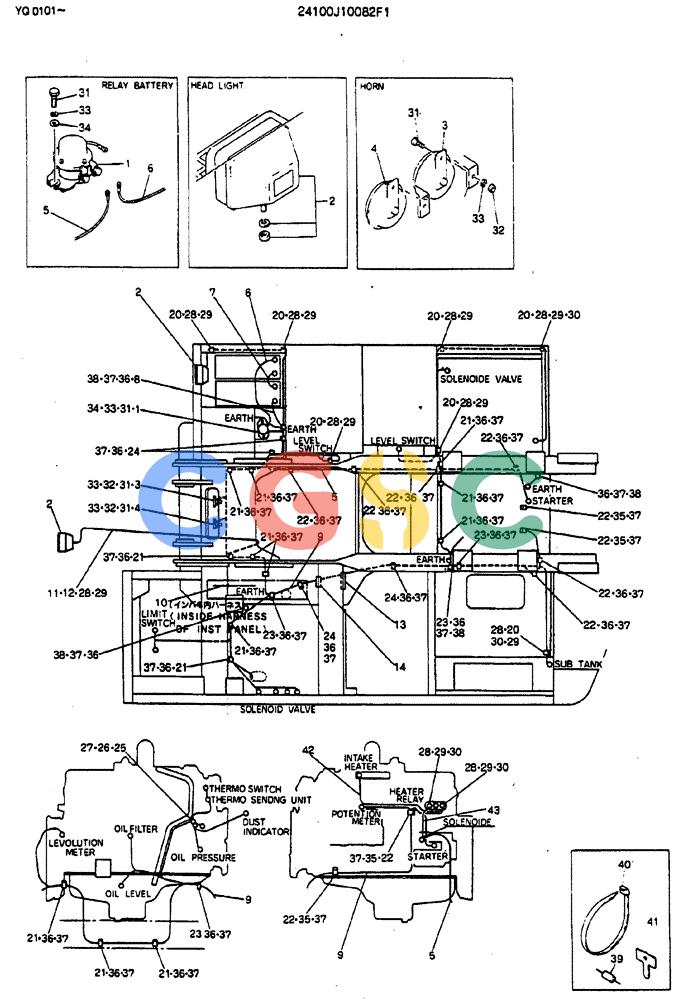

| . . | 24100J10082F1 | [1] | WIRING ASSY, ELEC | |
| 1. | 2479R1368 | [1] | RELAY | KOBBATTERY |
| 2. | NSS | [2] | NOT SOLD SEPARAT | CONLIGHT ASSY, SEE FIGURE 05-015, Serial Range: YQ0101-YQ0263 |
| . . | NSS | [2] | NOT SOLD SEPARAT | CONLIGHT ASSY, SEE FIGURE 05-015, Start Serial: YQ0264 |
| 3. | 2479U240F1 | [1] | HORN | KOBHORN ASSY Superseded by part number: CM53S00002F1 |
| 4. | 2479U240F2 | [1] | HORN | KOBHORN ASSY Superseded by part number: CM53S00002F2 |
| 5. | 2486R72D1 | [1] | NEG BATTERY CABLE | KOB |
| 6. | 2486R72D10 | [1] | NEG BATTERY CABLE | KOB |
| 7. | 2486R72D3 | [1] | NEG BATTERY CABLE | KOB |
| 8. | 2486R72D4 | [1] | NEG BATTERY CABLE | KOB |
| 9. | 2479U998 | [1] | HARNESS | KOB |
| 10. | 2479U840 | [1] | HARNESS, WIRING | HARNESS, WIRING |
| 11. | 2479Z1005 | [1] | WIRE HARNESS | KOB |
| 12. | 2432Z270 | [5] | CLAMP | KOB |
| 13. | 2420Z1188 | [1] | GROMMET | KOB |
| 14. | 2420Z699 | [1] | GROMMET | KOB |
| 15. | 2420R372D19 | [2] | GROMMET | KOB |
| 20. | 2432R225D1 | [7] | CLIP | KOBClamp, Single -- ID 06 x 29.8mm Long |
| 21. | 2432R225D5 | [9] | CLIP | KOB, Serial Range: YQ0101-YQ0391 Superseded by part number: ZC46X12011 |
| . . | 2432R225D5 | [10] | CLIP | KOB, Start Serial: YQ0392 Superseded by part number: ZC46X12011 |
| 22. | 2432R225D6 | [8] | CLIP | KOB |
| 23. | 2432R225D8 | [3] | CLIP | KOBClamp, Single -- ID 19.1 x 51.55mm Long Superseded by part number: ZC46X19011 |
| 24. | 2432R225D9 | [3] | CLIP | KOBClamp, Single -- ID 22 x 54mm Long, Serial Range: YQ0101-YQ0391 Superseded by part number: ZC46X22011 |
| . . | 2432R225D9 | [4] | CLIP | KOBClamp, Single -- ID 22 x 54mm Long, Start Serial: YQ0392 Superseded by part number: ZC46X22011 |
| 25. | ZS31C05010 | [1] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 26. | ZW26X05000 | [1] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 27. | ZW16K05000 | [1] | WASHER | KOBID 05 x OD 10 x Th 1.0mm |
| 28. | ZN18C06005 | [14] | NUT | KOBM06x1.0mm |
| 29. | ZW26X06000 | [14] | LOCK WASHER | KOBID 06 x OD 07 x Th 1.5mm |
| 30. | ZW16K06000 | [4] | WASHER | KOBID 06 x OD 11.5 x Th 1.6mm |
| 31. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 32. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
| 33. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 34. | ZW16K08000 | [2] | WASHER,8mm ID x 15.5mm OD x 1.6mm Thk | KOBID 08 x OD 15.5 x Th 1.6mm |
| 35. | ZS18C10014 | [2] | SCREW,Hex, M10 x 14mm | KOBM10x1.50x14mm |
| 36. | ZN18C10008 | [24] | NUT | KOBM10x1.50mm, Serial Range: YQ0101-YQ0391 |
| . . | ZN18C10008 | [26] | NUT | KOBM10x1.50mm, Start Serial: YQ0392 |
| 37. | ZW26X10000 | [26] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm, Serial Range: YQ0101-YQ0391 |
| . . | ZW26X10000 | [28] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm, Start Serial: YQ0392 |
| 38. | ZW16X10000 | [4] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 39. | 2475R129 | [9] | DIODE | KOB, Serial Range: YQ0101-YQ0156 |
| . . | 2475R129 | [10] | DIODE | KOB, Start Serial: YQ0157 |
| 40. | 2432Z290 | [10] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 41. | 2432Z309D1 | [5] | CLAMP | KOB |
| 42. | 2479Z1423 | [1] | HARNESS | KOB |
| 43. | 2479Z1424 | [1] | HARNESS | KOB |
