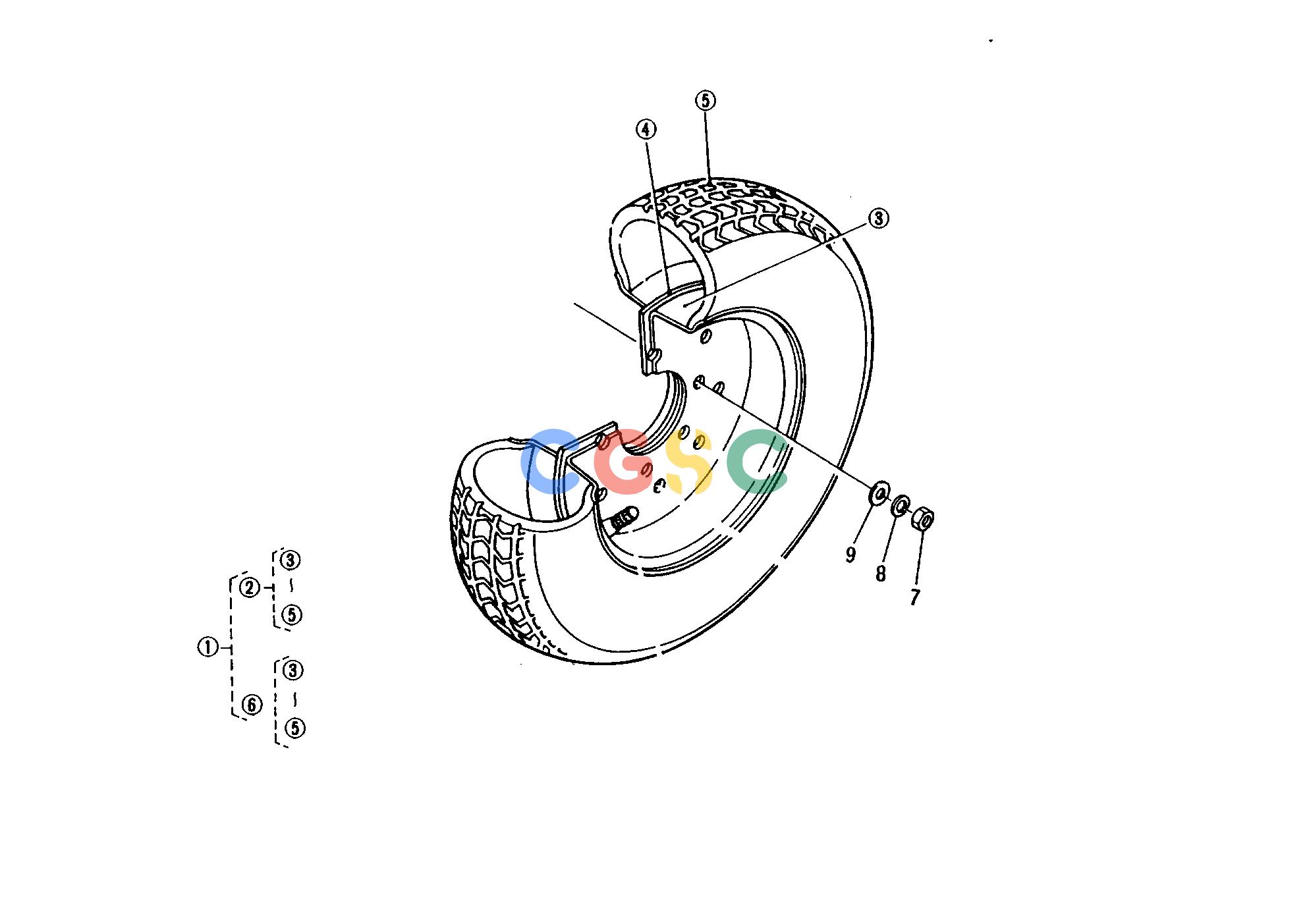

久保田零件查询T06400 FRONT WHEEL GROP [PT] FRONT AXLE/FRONT WHEELEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
449 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
9601610110
|
[1] |
ASSY FRONT WHEEL
|
0.0000(lbs); 0.000
|
| 002. |
9601611100
|
[1] |
ASSY FRONT WHEEL RH
|
0.0000(lbs); 0.000
|
| 003. |
9301601530
|
[2] |
WHEEL
|
0.0000(lbs); 0.000
|
| 004. |
9301601120
|
[2] |
TUBE
|
1.5400(lbs); 0.700
|
| 005. |
9601611130
|
[2] |
TIRE(6-12)
|
9.6800(lbs); 4.400
|
| 006. |
9601611010
|
[1] |
ASSY FRONT WHEEL LH
|
0.0000(lbs); 0.000
|
| 007. |
0217450120
|
[8] |
NUT
|
0.0220(lbs); 0.010
|
| 008. |
0451250120
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 009. |
0401350120
|
[8] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
