神钢零件查询(MD200BLC) - EXCAVATOR BTW YQ0101 - YQ0564 (1/80-12/06) (06-001) - INSTAL, LOW Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
534 次

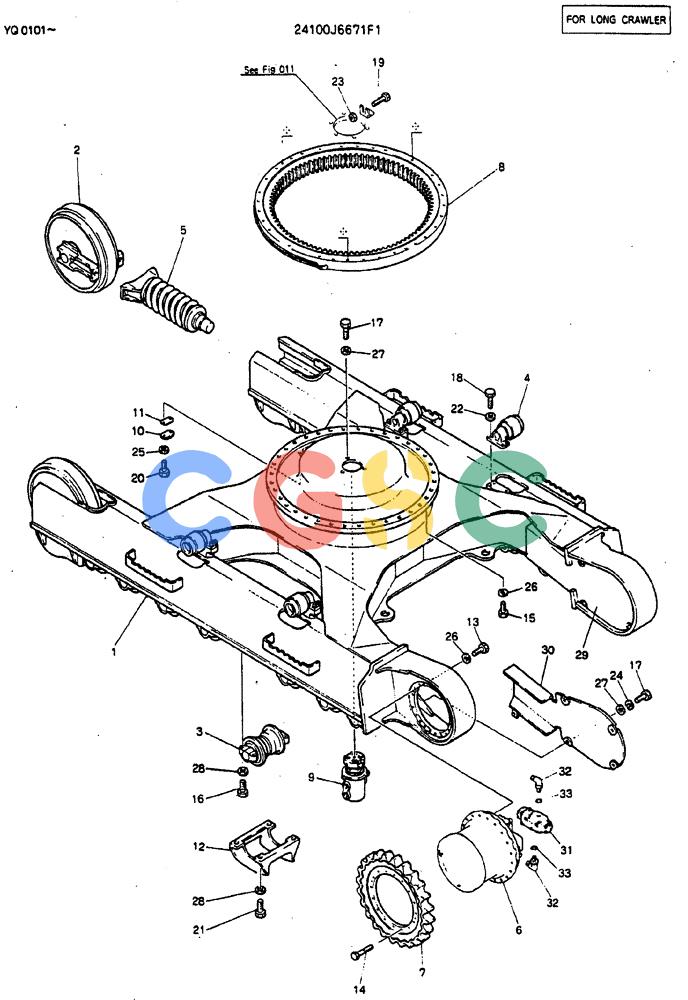

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6671F1 | [1] | INSTAL, LOW | |
| 1. | 2422J1901 | [1] | FRAME, LOW | |
| 2. | NSS | [2] | NOT SOLD SEPARAT | CONIDLER ASSY, SEE FIGURE 06-002 |
| 3. | NSS | [16] | NOT SOLD SEPARAT | CONROLLER ASSY, SEE FIGURE 06-003 |
| 4. | NSS | [4] | NOT SOLD SEPARAT | CONROLLER ASSY, SEE FIGURE 06-004 |
| 5. | NSS | [2] | NOT SOLD SEPARAT | CONSPRING ASSY, TRACK, SEE FIGURE 06-005 |
| 6. | NSS | [2] | NOT SOLD SEPARAT | CONREDUCTION UNIT, SEE FIGURE 06-006 |
| 7. | 2404N251 | [2] | SPROCKET | SPROCKET |
| 8. | NSS | [1] | NOT SOLD SEPARAT | CONBEARING ASSY, SEE FIGURE 06-007 |
| 9. | 24100J5144F4 | [1] | FLEXIBLE JOINT | KOBSWIVEL Superseded by part number: 24100U1524F1 |
| 10. | 2422T556 | [1] | PLATE | KOB90x50x Th 06mm |
| 11. | 2418T12274 | [1] | PACKING | KOB90x50x Th 05mm -- Rubber |
| 12. | 2422N880 | [2] | GUIDE | KOBCRAWLER TRACK |
| 13. | ZS13C20065 | [38] | SCREW | KOBM20x2.50x65mm |
| 14. | ZS13C20055 | [40] | SCREW | KOBScrew -- M20x2.50x55mm |
| 15. | ZS13F20070 | [36] | SCREW | KOBM20x1.50x70mm |
| 16. | ZS13F18075 | [64] | SCREW | KOBCAP |
| 17. | ZS13C12025 | [13] | SCREW | KOBM12x1.75x25mm Superseded by part number: ZS18C12025 |
| 18. | ZS13C16050 | [16] | SCREW | KOBM16x2.0x50mm |
| 19. | ZS13C16110 | [1] | SCREW | KOBM16x2.0x110mm |
| 20. | ZS13C10014 | [2] | SCREW | KOBM10x1.50x14mm Superseded by part number: ZS18C10014 |
| 21. | ZS13F18045 | [8] | SCREW | HITCAP |
| 22. | ZW13H16000 | [16] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 23. | ZN13C16013 | [1] | NUT | KOBM16x2.0mm |
| 24. | ZW22X12000 | [10] | LOCK WASHER | KOBID 12 x OD 21.5 x Th 3.0mm Superseded by part number: ZW26X12000 |
| 25. | ZW22X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
| 26. | ZW13H20000 | [74] | WASHER | KOBID 20 x OD 40 x Th 4.5mm |
| 27. | ZW11X12000 | [13] | WASHER | KOBID 12 x OD 24 x Th 2.3mm Superseded by part number: ZW16X12000 |
| 28. | 2418T17441D2 | [72] | WASHER | KOB |
| 29. | 2414N3936D1 | [1] | COVER ASSY | KOB |
| 30. | 2414N3936D2 | [1] | COVER ASSY | KOB |
| 31. | 2436U1233F1 | [2] | BRAKE VALVE | KOB |
| 32. | ZA33F28016 | [4] | ELBOW | KOB |
| 33. | ZD12P02900 | [4] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
