神钢零件查询(MD200BLC) - EXCAVATOR BTW YQ0101 - YQ0564 (1/80-12/06) (06-004) - ROLLER ASSY, (UPPER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
681 次

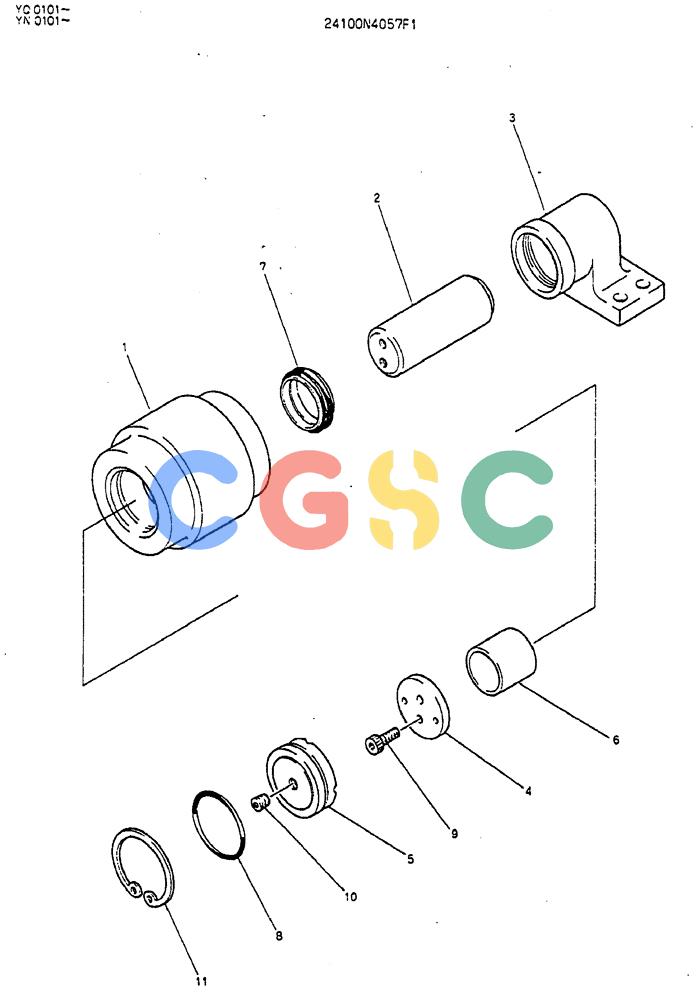

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N4057F1 | [1] | TRACK ROLLER | KOBASSY |
| 1. | 2413N416 | [1] | ROLLER | KOB |
| 2. | 2419P1718C2 | [1] | SHAFT | KOB |
| 3. | 2416N3301 | [1] | BRACKET | KOB |
| 4. | 2418T17501 | [1] | PLATE | KOB Superseded by part number: 2418T21108 |
| 5. | 2414P4076 | [1] | COVER | KOB |
| 6. | 2405T852 | [1] | BUSHING,45mm ID x 50mm OD x 50mm L | KOBID 45 x OD 50 x 50mm Long |
| 7. | R45P0018D3 | [1] | SEAL | KOB Superseded by part number: ZD57F04825 |
| 3. | ZD11P06500 | [1] | O-RING | KOBID 64.6 ± 0.57 x OD 75mm |
| 9. | ZS23C10020 | [2] | SCREW,Hex Socket Head, M10 x 20mm | KOBM10x1.50x20mm |
| 10. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 11. | ZR26X07500 | [1] | RING | KOBRetaining -- ID 75 x OD 79.5 x Th 2.5mm |
| . . | 2416N4057R100 | [1] | SHAFT | KOBCONSISTS OF REF 2 & 3 |
