神钢零件查询(MD200BLC) - EXCAVATOR BTW YQ0101 - YQ0564 (1/80-12/06) (06-006) - REDUCTION UNIT (PROPEL) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
577 次

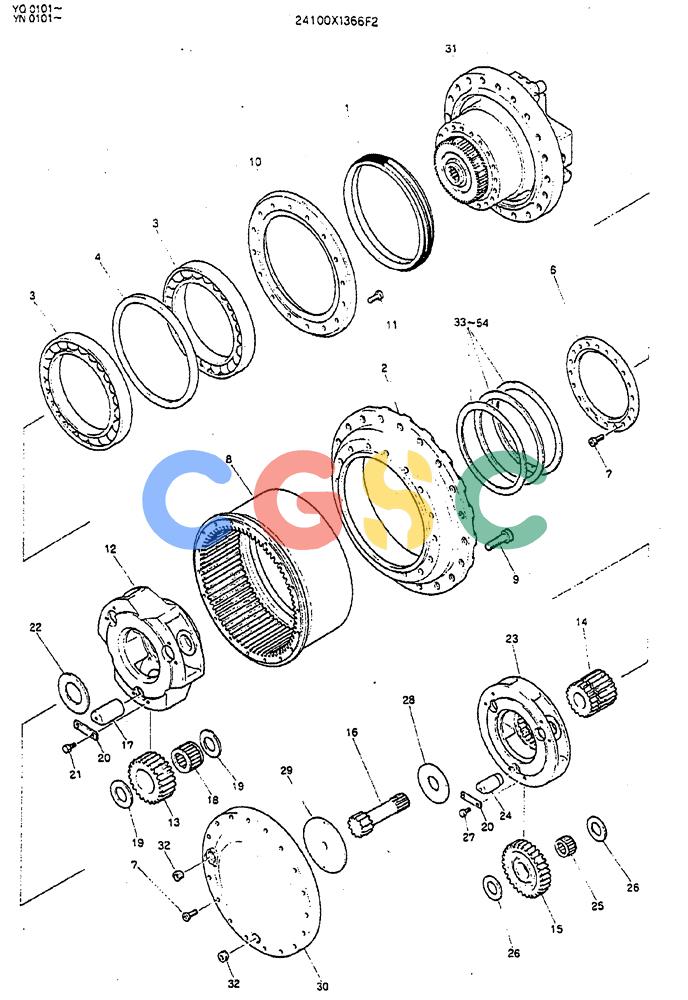

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100X1366F2 | [1] | GEAR REDUCTION UNIT | KOB Superseded by part number: 24100X1366F3 |
| 1. | ZD57F30040 | [1] | SEAL | KOB Superseded by part number: ZD58F30040 |
| 2. | 2418J259 | [1] | HUB | KOB |
| 3. | 2425R211 | [2] | BALL BEARING | KOB |
| 4. | 2418T17382 | [1] | SPACER | KOB |
| 6. | 2418P12136 | [1] | RETAINER | KOB |
| 7. | ZS23C10030 | [38] | SCREW,Hex Socket Head, M10 x 30mm | KOBM10x1.50x30mm Superseded by part number: ZS28C10030 |
| 8. | 2401N435 | [1] | RING GEAR | KOB |
| 9. | ZS23C16085 | [16] | SCREW,Hex Socket Head, M16 x 85mm | KOBM16x2.0x85mm |
| 10. | 2418P12137 | [1] | RETAINER | KOB |
| 11. | ZS23C10025 | [16] | SCREW,Hex Socket Head, M10 x 25mm | KOBM10x1.50x25mm Superseded by part number: ZS28C10025 |
| 12. | 2413J353 | [1] | AIR COMPRESSOR SPIDER | AIR COMPRESSOR SPIDER |
| 13. | 2401P637 | [3] | PINION | KOB |
| 14. | 2401P636 | [1] | SUN GEAR | KOB |
| 15. | 2401P635 | [3] | PINION | KOB |
| 16. | 2401P634 | [1] | SUN GEAR | KOB |
| 17. | 2410T327 | [3] | SHAFT | KOB |
| 18. | 2425Z511 | [3] | NEEDLE BEARING | KOBBEARING, NEEDLE |
| 19. | 2418T17386 | [6] | THRUST WASHER | KOB |
| 20. | 2418T13572 | [6] | LOCKING PLATE | KOB |
| 21. | ZS13C08016 | [6] | SCREW | KOBM08x1.25x16mm Superseded by part number: ZS18C08016 |
| 22. | 2418T17384 | [1] | SPACER | KOB |
| 23. | 2413J352 | [1] | SPIDER | KOBSPIDER |
| 24. | 2410T326 | [3] | SHAFT | KOB |
| 25. | 2425Z510 | [3] | NEEDLE BEARING | KOBBEARING, NEEDLE |
| 26. | 2418T17385 | [6] | THRUST WASHER | KOB |
| 27. | ZS13C08014 | [6] | SCREW | KOBM08x1.25x14mm Superseded by part number: ZS18C08014 |
| 28. | 2418T17383 | [1] | SPACER | SPACER |
| 29. | 2418P12135 | [1] | SPACER | SPACER |
| 30. | 2414N1970 | [1] | COVER | KOB |
| 31. | 2441U739F2 | [1] | ENGINE | KOB Superseded by part number: 2441U739F3 |
| 32. | ZE82T12000 | [2] | PLUG | KOB3/4" PT |
| 33. | 2420P1518D1 | [1] | SHIM | KOB1.1 |
| 34. | 2420P1518D2 | [1] | SHIM | KOB1.2 |
| 35. | 2420P1518D3 | [1] | SHIM | KOB1.3 |
| 36. | 2420P1518D4 | [1] | SHIM | KOB1.4 |
| 37. | 2420P1518D5 | [1] | SHIM | KOB1.5 |
| 38. | 2420P1518D6 | [1] | SHIM | KOB1.6 |
| 39. | 2420P1518D7 | [1] | SHIM | KOB1.7 |
| 40. | 2420P1518D8 | [1] | SHIM | KOB1.8 |
| 41. | 2420P1518D9 | [1] | SHIM | KOB1.9 |
| 42. | 2420P1518D10 | [1] | SHIM | KOB2.0 |
| 43. | 2420P1518D11 | [1] | SHIM | KOB2.1 |
| 44. | 2420P1518D12 | [1] | SHIM | KOB2.2 |
| 45. | 2420P1518D13 | [1] | SHIM | KOB2.3 |
| 46. | 2420P1518D14 | [1] | SHIM | KOB2.4 |
| 47. | 2420P1518D15 | [1] | SHIM | KOB2.5 |
| 48. | 2420P1518D16 | [1] | SHIM | KOB2.6 |
| 49. | 2420P1518D17 | [1] | SHIM | KOB2.7 |
| 50. | 2420P1518D18 | [1] | SHIM | KOB2.8 |
| 51. | 2420P1518D19 | [1] | SHIM | KOB2.9 |
| 52. | 2420P1518D20 | [1] | SHIM | KOB3.0 |
| 53. | 2420P1518D21 | [1] | SHIM | KOB3.1 |
| 54. | 2420P1518D22 | [1] | SHIM | KOB3.2 |
