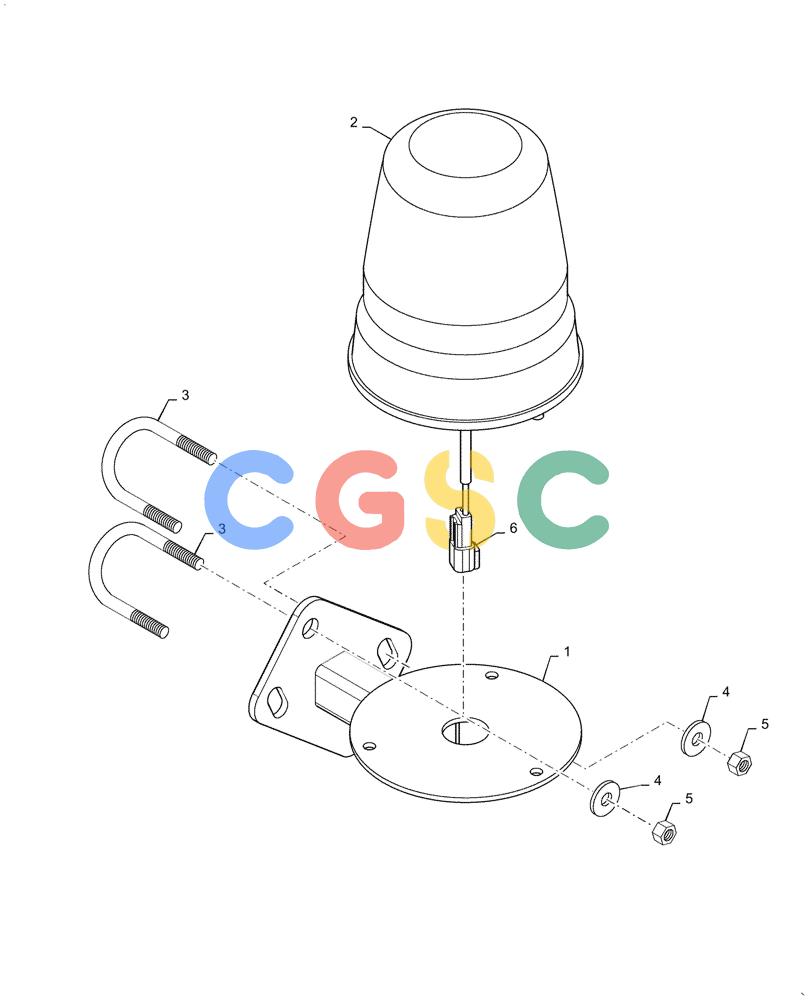

凯斯零件查询(2355) - PRECISION AIR CART (11/15-) (88.100.55[01]) - KIT, BEACON LIGHT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
443 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
47732787
|
[1] |
BRACKET
|
SAS
Beacon Mount Black
|
| 2. |
84337824
|
[1] |
BEACON,12V, 55W, Amber
|
GI
|
| 3. |
35289A1
|
[2] |
BOLT
|
FAR
|
| 4. |
86639313
|
[4] |
WASHER,9mm ID x 24mm OD x 2mm Thk
|
RAC
|
| 5. |
68841
|
[4] |
NUT,M8 x 1.25, Cl 8
|
BER
Superseded by part number: 16104414
|
| 6. |
47732723
|
[1] |
WIRE HARNESS
|
SAS
Beacon Extension
|
| 7. |
87557085
|
[5] |
CABLE TIE
|
SAS
Not Shown
|
| 8. |
87557086
|
[10] |
CABLE TIE
|
SAS
Not Shown
|
| 9. |
87557087
|
[10] |
CABLE TIE
|
SAS
Not Shown
|
