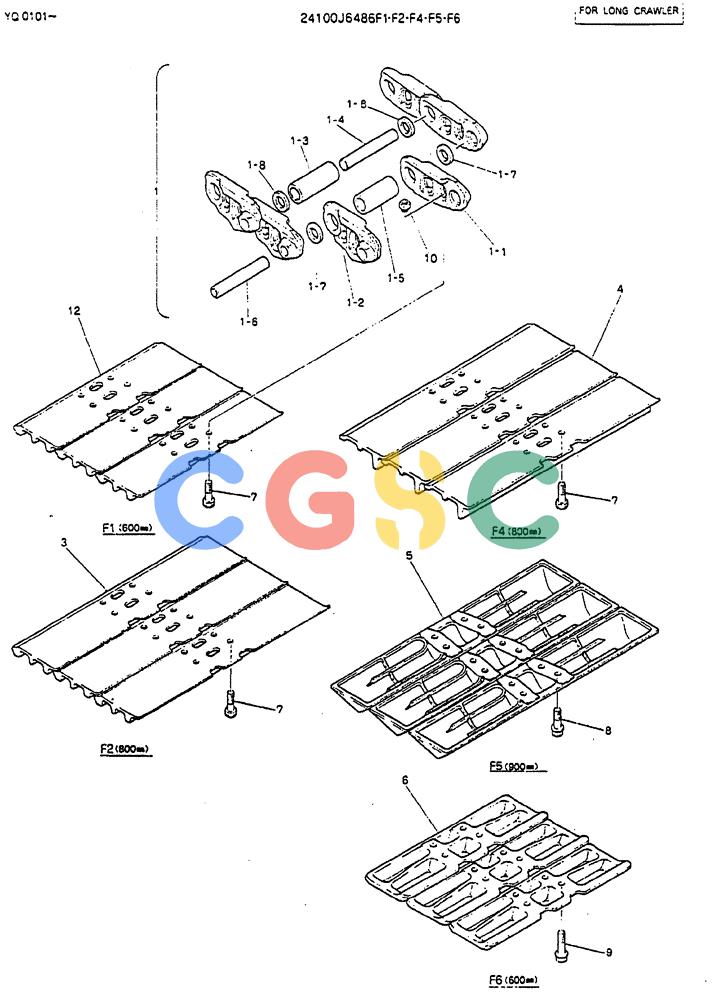

神钢零件查询(MD200BLC) - EXCAVATOR BTW YQ0101 - YQ0564 (1/80-12/06) (06-010) - INSTAL, CRAWLER TRACK Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
873 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6486F1 | [1] | INSTAL, TRACK, CRAWL | INSTAL, TRACK, CRAWL |
| 1. | 24100J6484F2 | [2] | TRACK ASSY | KOB Superseded by part number: 24100J6484F4 |
| 1-1. | 2424J164D1 | [53] | LINK | KOBTRACK |
| 1-2. | 2424J164D2 | [53] | LINK | KOBTRACK |
| 1-3. | 2405P486 | [52] | BUSHING | KOB Superseded by part number: 2405P711 |
| 1-4. | 2419P1632 | [52] | PIN | KOBTRACK |
| 1-5. | 2405P468 | [1] | BUSHING | KOBMASTER |
| 1-6. | 2419P1633 | [1] | PIN | KOBTRACK |
| 1-7. | 2418T12108 | [2] | COLLAR CLAMP | KOB |
| 1-8. | 2445Z1123 | [104] | DUST CAP | KOB Superseded by part number: 2445Z1123C2 |
| 7. | 2420P1513 | [424] | SCREW | KOB |
| 10. | 2420T4443 | [424] | NUT | KOB |
| 12. | 2424N181 | [106] | TRACK SHOE | KOB |
| . . | 24100J6486F2 | [1] | INSTAL, TRACK, CRAWL CONSISTS OF REF 1-7 & 10 | INSTAL, TRACK, CRAWL CONSISTS OF REF 1-7 & 10 |
| 3. | 2424N179D2 | [106] | SHOE | SHOE |
| . . | 24100J6486F4 | [1] | INSTAL, CRAWLER TRACK, CONSISTS OF REF 1-7 & 10 | |
| 4. | 2424N163 | [106] | SHOE | KOB |
| . . | 24100J6486F5 | [1] | INSTAL, CRAWLER TRACK, CONSISTS OF REF 1 & 10 | |
| 5. | 2424N165 | [106] | SHOE SHOE | SHOE SHOE |
| 8. | 2420T4444D1 | [424] | BOLT | |
| . . | 24100J6486F6 | [1] | INSTAL, CRAWLER TRACK, CONSISTS OF REF 1 & 10 | |
| 6. | 2424N164 | [106] | SHOE | SHOE |
| 9. | 2420T4444D2 | [424] | BOLT | |
