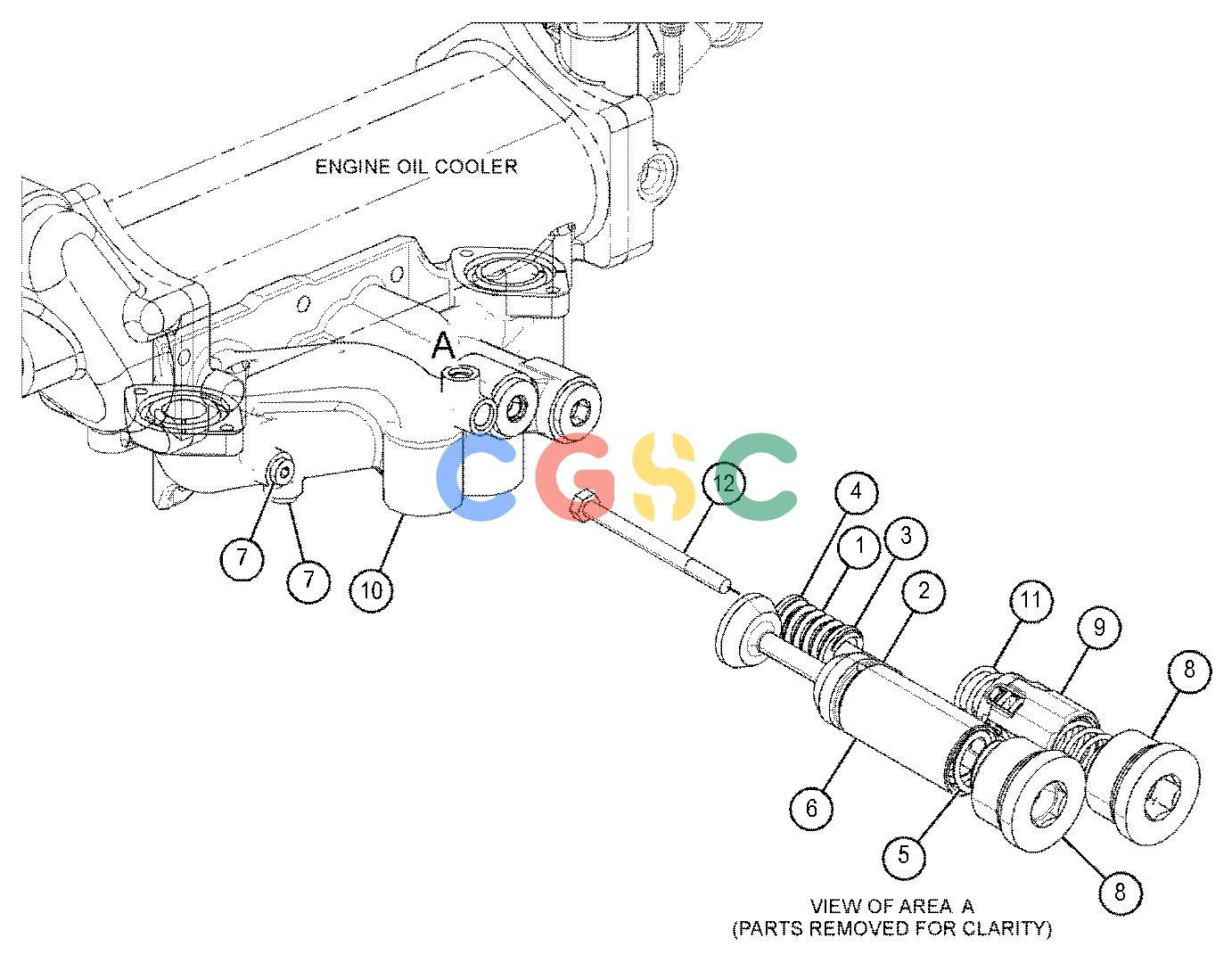

卡特零件查询（730C2） 474-4618: BASE GP-OIL FILTER
广数供应链运营团队, 15 02月, 2025，浏览：
295 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1A-2170 | [1] | SPRING-RETAINER | |
| 2. | 7C-3081 | [1] | SPACER(6.88X9.53X50-MM THK) | |
| 3. | 7C-3082 | [1] | RETAINER | |
| 4. | 7C-3083 | [1] | SEAT-RELIEF VALVE SPRING | |
| 5. | 7C-3954 | [1] | SPRING AS | |
| | 2N-6005 | [1] | SPRING | |
| 6. | 224-3405 | [1] | VALVE AS(OIL PUMP BYPASS) | |
| 7. | 389-3708 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 360-3679 | [1] | PLUG-CONNECTOR(9/16-18-THD) | |
| 8. | 389-3728 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 238-5084 | [1] | SEAL-O-RING | |
| | 360-3684 | [1] | PLUG | |
| 9. | 392-9208 | [1] | PLUNGER-VALVE(RELIEF) | |
| 10. | 472-7445 | [1] | BASE-OIL COOLER | |
| 11. | 4N-8150 | [1] | SPRING | |
| 12. | 6V-8359M | [1] | BOLT(M6X1X70-MM) | |
| | M | | METRIC PART |
