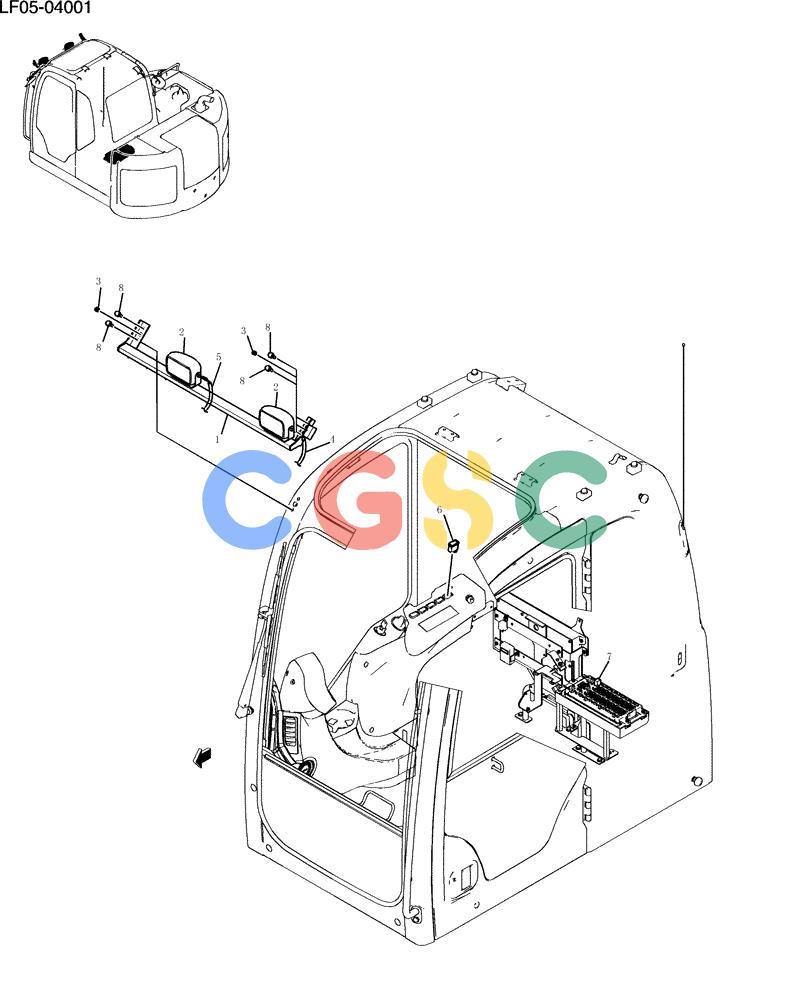

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (755-17-1[1]) - LIGHT INSTAL (CAB) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
380 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YY80E00016F1 | [1] | Light Instal (cab) | |
| 1. | YY02C01144P1 | [1] | SUPPORT | KOB |
| 2. | YT80S00002F2 | [2] | LIGHT | KOB[see figure no.305-01-1 ] Superseded by part number: YN80S00010F1 |
| 3. | YN03M01159P1 | [2] | GROMMET | KOB |
| 4. | YN02C01760P1 | [2] | HARNESS | KOB |
| 5. | YB02C01237P1 | [1] | HARNESS | KOB |
| 6. | YN50S00040D4 | [1] | SWITCH | KOB |
| 7. | YN24S00010P1 | [1] | RELAY | KOB |
| 8. | ZM27C10030 | [4] | SCREW | KOBSems-bolt |
