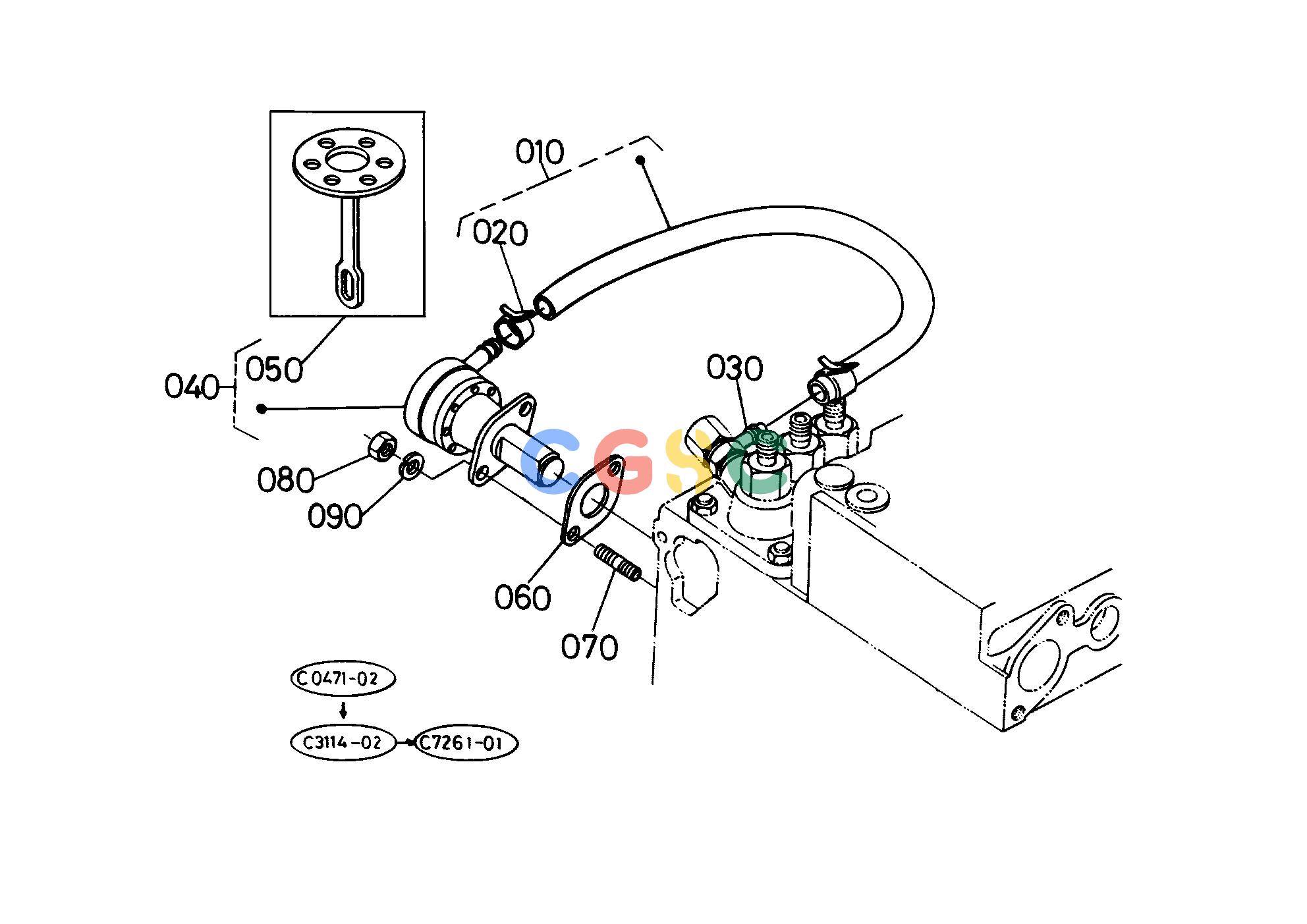

久保田零件查询T01700 FUEL PUMP ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
514 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1526142010
|
[1] |
ASSY PIPE FUEL
|
0.0704(lbs); 0.032
|
| 020. |
1624142750
|
[2] |
BAND PIPE
|
0.0000(lbs); 0.000
|
| 030. |
1411142410
|
[1] |
JOINT EYE
|
0.0550(lbs); 0.025
|
| 040. |
1538152030
|
[1] |
ASSY PUMP FUEL
|
0.0000(lbs); 0.000
|
| 050. |
1538152040
|
[1] |
COMP.DIAPHRAGM
|
0.0000(lbs); 0.000
|
| 060. |
1524152140
|
[1] |
GASKET FUEL PUMP
|
0.0000(lbs); 0.000
|
| 070. |
0151350616
|
[2] |
STUD
|
0.0088(lbs); 0.004
|
| 080. |
0205650060
|
[2] |
NUT
|
0.0044(lbs); 0.002
|
| 090. |
0451250060
|
[2] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
