神钢零件查询(MD200BLC) - EXCAVATOR BTW YQ0101 - YQ0564 (1/80-12/06) (08-009) - ARM ASSY, EXTENSION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
826 次

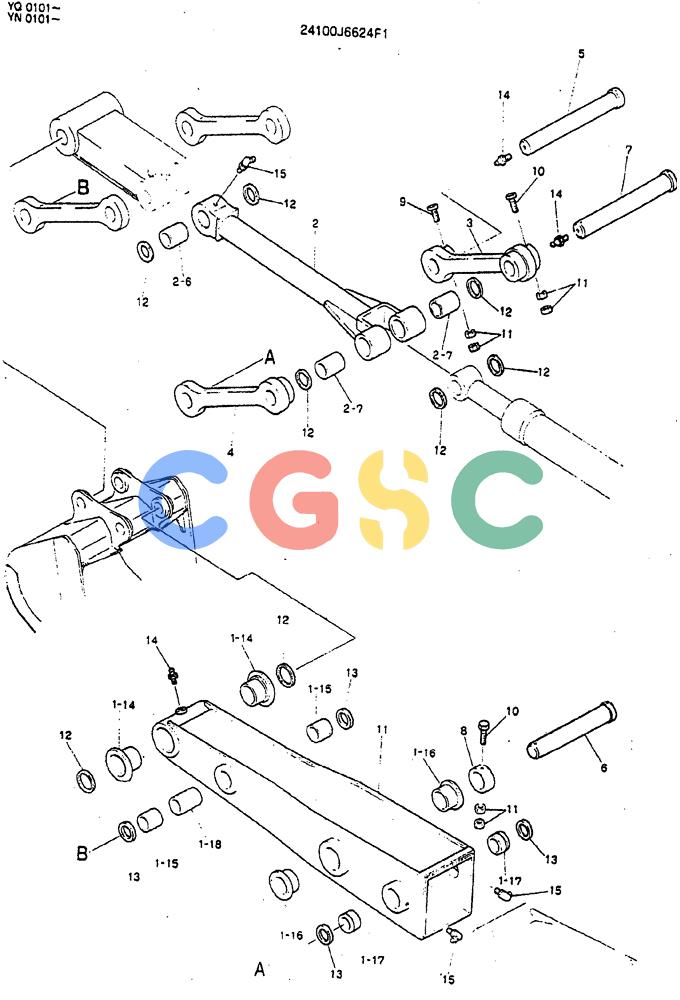

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J6624F1 | [1] | ARM ASSY,EXTENSION | |
| 1. | 2411J2813F1 | [1] | ARM,EXTENSION | |
| 1-14. | 2405T1274 | [2] | BUSHING,80mm ID x 95mm OD x 93mm L | KOB Superseded by part number: 2405T1902 |
| 1-15. | B05T0041C2 | [2] | BUSHING | KOB |
| 1-16. | 2405T935 | [2] | BUSHING | BUSHING |
| 1-17. | 2405T936 | [2] | BUSHING | BUSHING |
| 1-18. | 2418T17497 | [1] | SPACER | KOB |
| 2. | 2406N809F1 | [1] | LINK | LINK |
| 2-6. | 2405T1300 | [1] | BUSHING | KOB |
| 2-7. | 2405T1275 | [2] | BUSHING | KOB |
| 3. | 2406P3935D1 | [1] | LINK, IDLER | LINK, IDLER |
| 4. | 2406P3935D2 | [1] | LINK, IDLER | LINK, IDLER |
| 5. | 2419P1566D3 | [1] | PIN | KOB |
| 6. | 2419T3752 | [1] | PIN | KOB Superseded by part number: 2419T7605D1 |
| 7. | 2419P1710D3 | [1] | PIN | KOB |
| 8. | 2412T764 | [1] | BOSS | KOB |
| 9. | ZS13C16130 | [1] | SCREW | KOB |
| 10. | ZS13C16140 | [2] | SCREW | KOBM16x2.0x140mm |
| 11. | ZN12C16013 | [6] | NUT | KOBM16x2.0mm |
| 12. | 2445R372D2 | [8] | DUST CAP | KOBSEAL |
| 13. | 2445R372D1 | [2] | DUST CAP | KOB |
| 14. | ZG91S02000 | [3] | LUBE NIPPLE,1/8" NPT x 1/8" NPT | KOB1/8" PT -- Straight |
| 15. | ZG91U02000 | [3] | LUBE NIPPLE | KOB90° x 1/8" PT |
