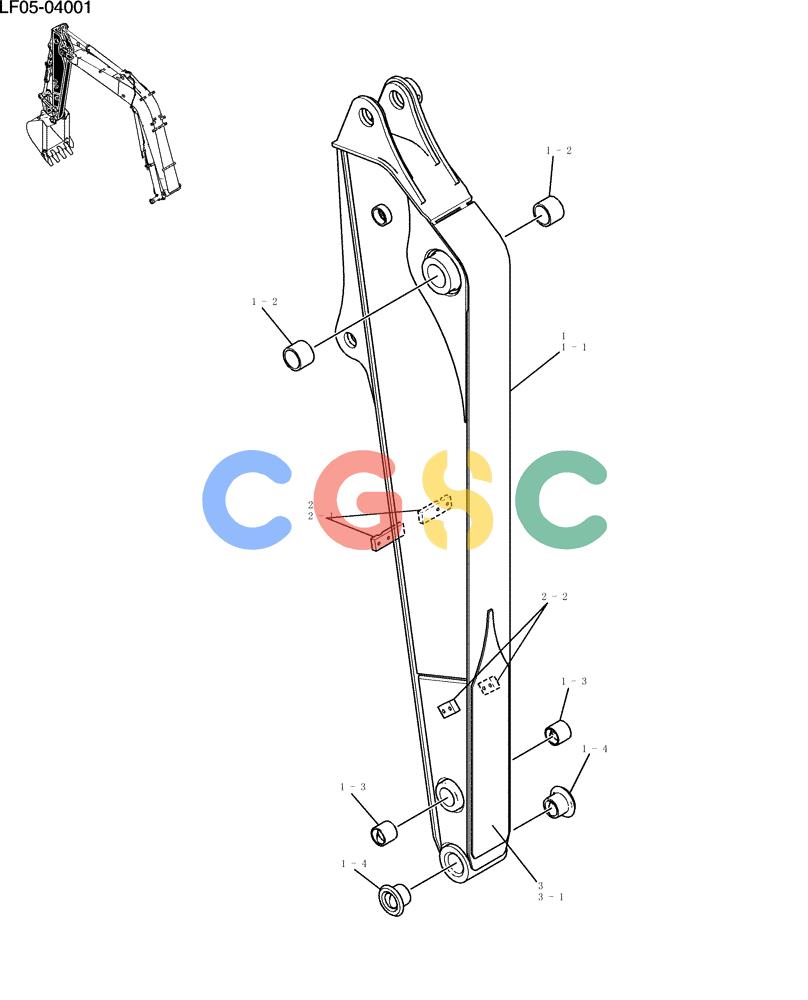

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (867-17-1[1]) - ARM ASSY, LONG New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
492 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT12B00156F1 | [1] | ARM | KOBArm Assy, Long |
| 1-1. | YT12B00157P1 | [1] | ARM | KOBArm, Long |
| 1-2. | YT12B01010P2 | [2] | BUSHING | KOB |
| 1-3. | LE12B01054P1 | [2] | BUSHING | KOB |
| 1-4. | YT12B01112P1 | [2] | BUSHING | KOB |
| 2. | YT12B00191P1 | [1] | ARM | KOBArm, Long (nibbler & Breaker) |
| 2-1. | YT12B01227P1 | [2] | BLOCK | KOBBlock, Tapped |
| 2-2. | LC12B01560P1 | [2] | BLOCK | KOBBlock, Tapped |
| 3. | YT12B00192P1 | [1] | ARM | KOBArm, Long (extra) |
| 3-1. | 2416T9878 | [4] | BLOCK,M10 Thd Hole - 16mm Thk x 32mm W x 60mm L | KOBTapped |
| 4. | YT12B00184P1 | [1] | ARM | KOBArm, Long |
| 4-1. | YT12B01310P1 | [1] | PLATE | KOBPlate |
