神钢零件查询(MD200BLC) - EXCAVATOR BTW YQ0101 - YQ0564 (1/80-12/06) (10-001) - LABEL, NAME-PLATE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
466 次

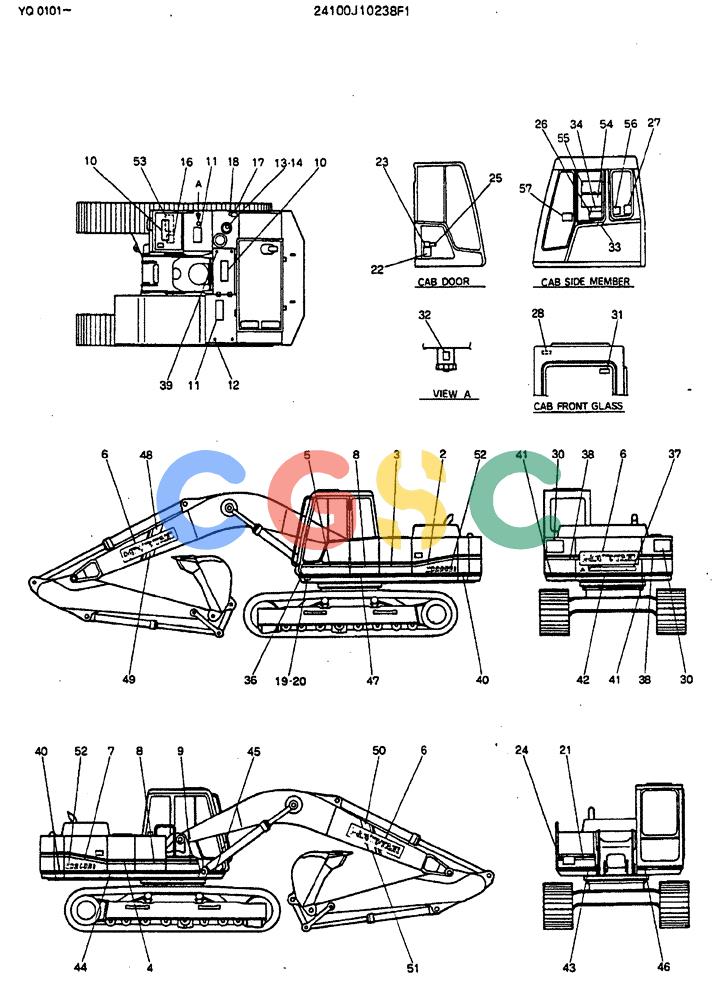

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J10238F1 | [1] | LABEL | KOBLABEL |
| 2. | 2432T3895 | [1] | LABEL | KOB |
| 3. | 2432P1071D6 | [1] | LABEL | LABEL |
| 4. | 2432P1071D7 | [1] | LABEL | KOB |
| 5. | 2432T3898 | [1] | LABEL | KOB |
| 6. | 2432J1346 | [3] | LABEL | KOB |
| 7. | 2432T3896 | [1] | LABEL | KOB |
| B. | 2432P1071D2 | [2] | LABEL | KOB |
| 9. | 2432T3897 | [1] | LABEL | KOB |
| 10. | 2427Z329D2 | [2] | SHEET | KOBAnti-Slip (400x150mm) |
| 11. | 2427Z329 | [2] | SHEET | KOBAnti-Slip (300x150mm) |
| 12. | 2432T1142D3 | [4] | LABEL | KOB |
| 13. | 2432P1054 | [1] | LABEL | KOB |
| 14. | 2446U228S12 | [1] | LABEL | KOB |
| 16. | 2432P1054 | [1] | LABEL | KOB |
| 17. | 2432T1202 | [1] | PLATE | KOBLABEL |
| 18. | 2432T1231 | [1] | DATA PLAQUE | KOBDecal, Warning - |
| 19. | 4020Z64 | [4] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 20. | 2432T2526 | [1] | NAME PLATE | NAME PLATE |
| 21. | 2432P1071D8 | [1] | LABEL | KOB |
| 22. | 2432T1759 | [1] | PLATE | KOB |
| 23. | 2432T1215 | [1] | DATA PLAQUE | KOBDecal, Caution - To prevent accidents and bodily injury … |
| 24. | 2432T3901 | [1] | LABEL | KOB |
| 25. | 2432T1426 | [1] | PLATE, CAUTION | PLATE, CAUTION |
| 26. | 2432N568 | [1] | INSTALLER JIG | KOB Superseded by part number: 2432N1751 |
| 27. | 2432P1065 | [1] | LABEL | KOB |
| 28. | 2432T2341 | [1] | LABEL | KOB |
| 30. | 2432N1097 | [2] | LABEL | KOBDecal, Danger - Stay out of the swing area. |
| 31. | 2432T892 | [1] | LABEL | KOBPLATE, CAUTION |
| 32. | 2432T2283 | [1] | LABEL | KOBDecal, Fuel location |
| 33. | 2432T2342 | [1] | LABEL | LABEL |
| 34. | 2432T2532 | [1] | LABEL | KOB |
| 36. | 2422T575 | [1] | REWORK, FRAME | |
| 37. | 2432P1062 | [1] | LABEL | LABEL |
| 38. | 2432P1071D9 | [2] | LABEL | KOB |
| 39. | 2418T10311 | [2] | PLATE | KOBØ30mm round Superseded by part number: 2418T27058 |
| 40. | 2432P1072D1 | [2] | LABEL | KOB |
| 41. | 2432P1072D12 | [2] | LABEL | LABEL |
| 42. | 2432P1072D3 | [1] | LABEL | KOB |
| 43. | 2432P1072D11 | [1] | LABEL | KOB |
| 44. | 2432P1072D10 | [1] | LABEL | KOB |
| 45. | 2432P1072D6 | [1] | LABEL | LABEL |
| 46. | 2432P1072D7 | [1] | LABEL | KOB |
| 47. | 2432P1072D9 | [1] | LABEL | KOB |
| 48. | 2432T3920 | [1] | LABEL | KOB |
| 49. | 2432T3921 | [1] | LABEL | KOB |
| 50. | 2432T3922 | [1] | LABEL | KOB |
| 51. | 2432T3923 | [1] | LABEL | LABEL |
| 52. | 2432J1395 | [2] | LABEL | KOB |
| 53. | 2432N1911 | [1] | LABEL | KOB |
| 54. | 2432N1940 | [1] | LABEL | LABEL |
