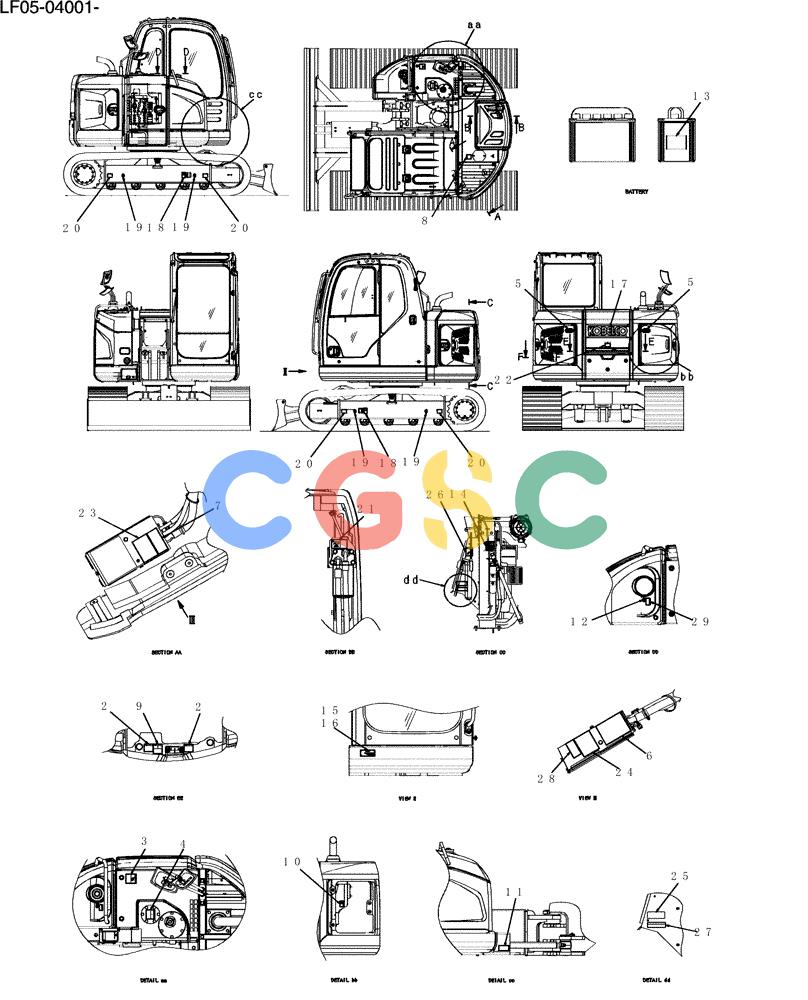

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (950-17-1[1]) - NAME PLATE INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
745 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT22T00140F1 | [1] | Name Plate Instal [required(warning)] | |
| 2. | YN20T01221P1 | [2] | DANGER DECAL | KOB |
| 3. | YN20T01049P1 | [1] | LABEL | KOB |
| 4. | PW20T01007P1 | [1] | LABEL | KOB |
| 5. | PE20T01014P1 | [2] | LABEL | KOB |
| 6. | YN20T01015P2 | [1] | LABEL | KOB |
| 7. | YN20T01338P1 | [1] | LABEL | KOB |
| 8. | YN20T01010P1 | [1] | LABEL | KOB Superseded by part number: ZL11N00404 |
| 9. | YN20T01009P1 | [1] | LABEL | KOB Superseded by part number: ZL11N05204 |
| 10. | YN20T01220P1 | [1] | LABEL | KOB Superseded by part number: ZL11N00504 |
| 11. | 2432P2689 | [1] | LABEL | KOB |
| 12. | PA20T01031P1 | [1] | CAUTION DECAL | KOB |
| 13. | 2432T6179 | [2] | CAUTION DECAL | KOB |
| 14. | YN20T01832P1 | [1] | LABEL | KOB |
| 18. | YN20T01813P1 | [2] | LABEL | KOB |
| 19. | YN20T01818P1 | [4] | LABEL | KOB |
| 20. | YN20T01819P1 | [4] | LABEL | KOB |
| 21. | YN20T01867P1 | [1] | LABEL | KOB, Serial Range: LF05-04001-LF05-04285 Superseded by part number: YN20T01852P2 |
| . . | YN20T01867P2 | [1] | LABEL | KOB, Start Serial: LF05-04286 Superseded by part number: YN20T01852P2 |
| 22. | YN20T01012P1 | [1] | CAUTION DECAL | KOB |
| 23. | YN20T01001P1 | [1] | LABEL | KOB |
| 24. | YN20T01017P1 | [1] | LABEL | KOB |
| 25. | PY20T01069P1 | [1] | LABEL | KOB |
| 26. | YT20T01287P1 | [1] | LABEL | KOB |
| 27. | YN20T01854P1 | [1] | LABEL | KOB |
| . . | YT22T00140F3 | [1] | Name Plate Instal [select(required)] | |
| 15. | YT20T01092P2 | [1] | PLATE | KOBNumber |
| 16. | 4020Z64 | [4] | RIVET | KOB Superseded by part number: 2420P623D7 |
| 17. | YY22T00126P1 | [1] | DECAL | KOBName Plate |
| 28. | YN20T01495P1 | [1] | WARNING DECAL | KOB |
| 29. | PV20T01068P1 | [1] | LABEL | KOB |
| 30. | LF14Z00010P1 | [1] | Drawing, Painting [ NOT SHOWN ] | |
