神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (01-005) - TANK ASSY. FUEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
751 次

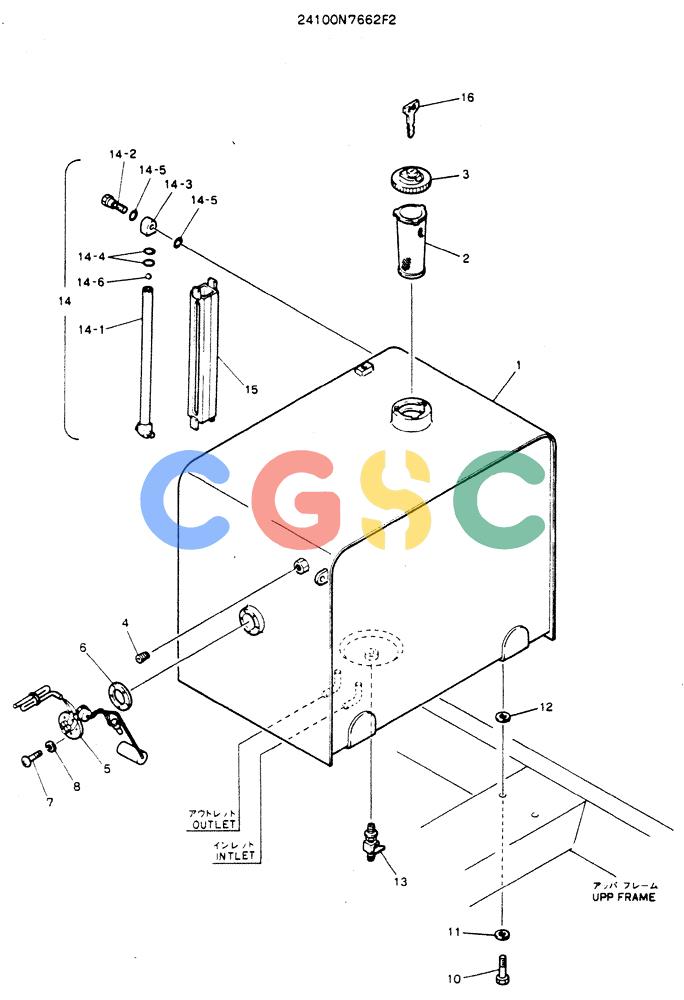

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N7662F2 | [1] | TANK ASSY, FUEL | |
| 1. | 2427J3047 | [1] | TANK | KOB Superseded by part number: 2427J3120 |
| 2. | 2446R326 | [1] | FILTER STRAINER | KOB |
| 3. | 2444R1047 | [1] | FILLER CAP | KOB |
| 4. | ZE82T08000 | [1] | PLUG | KOB1/2" PT |
| 5. | 2489U267F1 | [1] | SENSOR | KOBSENDING UNIT, FUEL |
| 6. | 2418T9962 | [1] | PACKING | KOBID 41 x OD 68 x Th 2.0mm |
| 7. | ZS31C05010 | [5] | BOLT,Phillips Drive, Pan HD, M5 x 10mm | KOBM05x0.8x10mm |
| 8. | ZW26X05000 | [5] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 10. | ZS13C16040 | [4] | SCREW | KOBM16x2.0x40mm |
| 11. | ZW13H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 12. | 2418T17283D1 | [3] | SPACER | KOB(1.0) |
| 13. | 2444Z3688 | [1] | COCK | KOBDRAIN |
| 14. | 2489R313F1 | [1] | GAUGE | KOBGAUGE, LEVEL |
| 14-1. | 2489R313S1 | [1] | VACUUM GAUGE | KOB |
| 14-2. | 2489R174S3 | [2] | BOLT | KOBSpecial -- M10x1.50x40mm Long |
| 14-3. | 2489R174S2 | [2] | BLOCK | KOBGAUGE, LEVEL |
| 14-4. | ZD11P01800 | [4] | O-RING | KOBID 17.80 ± 0.21 x OD 22mm |
| 14-5. | ZD11P01000 | [4] | O-RING | KOBID 9.8 ± 0.17 x OD 13.6mm |
| 14-6. | 2489R174S7 | [1] | FLOAT | KOB |
| 15. | 2414T5027 | [1] | GUARD | KOB |
| 16. | 2420Z1030D2 | [1] | KIT | KOB(IS NOT SUPPLIED WITH CAP) Superseded by part number: PM50S01001P1 |
