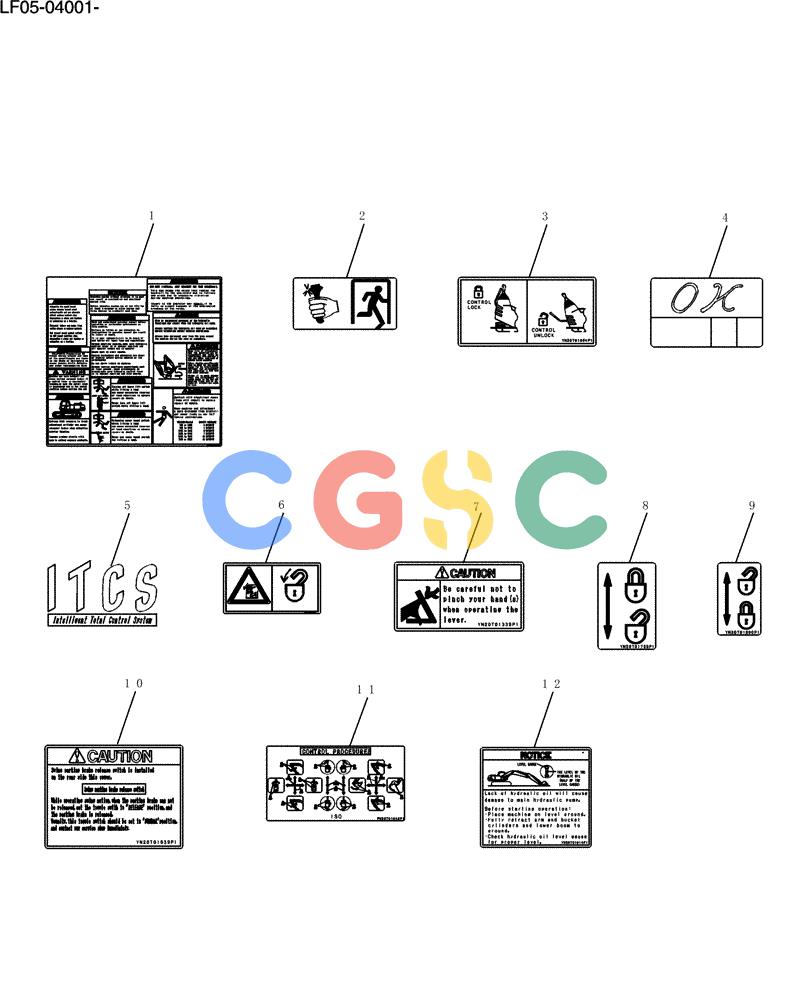

纽荷兰零件查询(E80BMSR) - CRAWLER EXCAVATOR ASN LF05-04001 - (N8TA18060) (960-27[2]) - NAME PLATE INSTAL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
539 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF22T00152F2 | [1] | Name Plate Instal [required(warning)] | |
| 1. | YN20T01863P1 | [1] | LABEL | KOB |
| 2. | PH20T01018P1 | [1] | WARNING DECAL | KOB |
| 3. | YN20T01864P1 | [1] | LABEL | KOB |
| 4. | YB20T01095P1 | [1] | LABEL | KOB |
| 5. | YN20T01862P1 | [1] | LABEL | KOB |
| 6. | ZL11M06008 | [1] | LABEL | KOB |
| 7. | YN20T01339P1 | [1] | LABEL | KOB |
| 8. | YN20T01799P1 | [1] | LABEL | KOB |
| 9. | YN20T01800P1 | [1] | LABEL | KOB |
| 10. | YN20T01639P1 | [1] | LABEL | KOB |
| 11. | PW22T01048P1 | [1] | IDENTITY PLATE | KOBLabel |
| 12. | YN20T01014P1 | [1] | LABEL | KOB |
