神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (02-001) - INSTAL, CAB Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
721 次

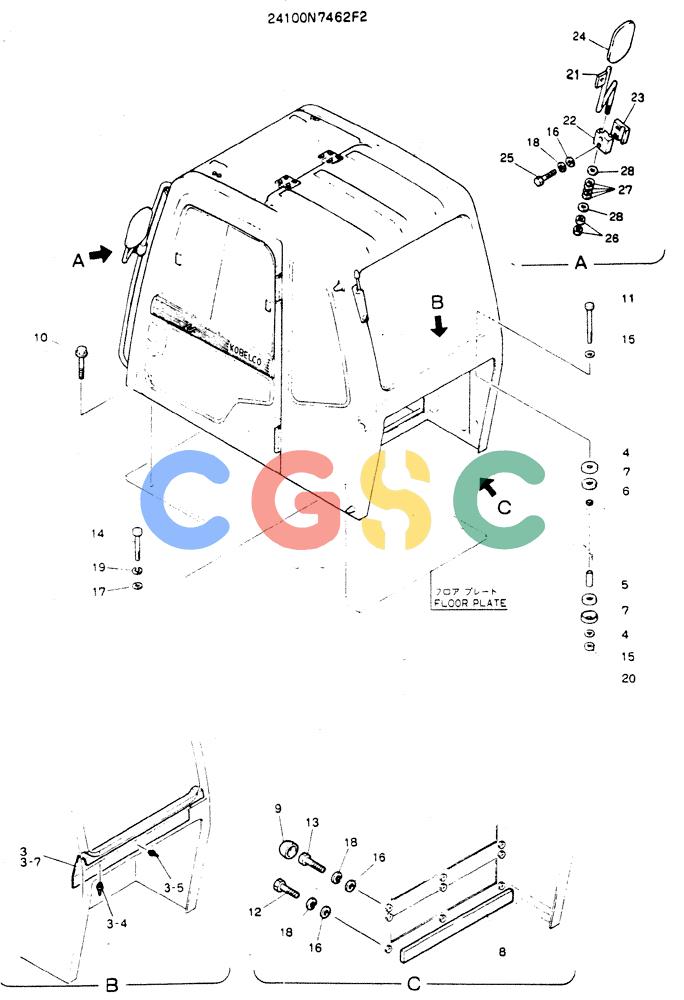

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100N7462F2 | [1] | INSTAL, CAB | |
| 2. | 24100J14396F10 | [1] | CAB ASSY (SEE FIGURE 02-002) | |
| 3. | 24100Z148F3 | [1] | PAD | KOB |
| 3-4. | 2432R236 | [3] | CLIP | KOB |
| 3-5. | 2420R584 | [3] | FASTENER | KOB |
| 3-7. | 2416U241D3 | [1] | PAD | KOB |
| 4. | 2414T2855 | [4] | COVER | KOB |
| 5. | 2418T9226D7 | [2] | SPACER | KOB |
| 6. | 2418Z740 | [2] | RUBBER RING | KOB |
| 7. | 2416Z539 | [4] | RUBBER SLEEVE | KOBCUSHION |
| 8. | 2427Z1335 | [1] | FOAM INSULATION | KOB |
| 9. | 2414Z306 | [6] | CAP | KOB |
| 10. | 2420T6787 | [1] | SCREW,M12 x 1.75 x 20mm | KOBM12x1.75x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM32C12030 |
| 11. | 2420Z1329 | [2] | SCREW | KOBM16x2.0x160mm Superseded by part number: HS18C16160G2, 77254472 |
| 12. | ZS18C08016 | [6] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| 13. | ZS18C08050 | [6] | SCREW,Hex, M8 x 50mm | KOBM08x1.25x50mm |
| 14. | ZS18C12070 | [8] | SCREW,Hex, M12 x 70mm | KOBM12x1.75x70mm |
| 15. | ZW13H16000 | [4] | WASHER | KOBID 17 x OD 32 x Th 4.5mm |
| 16. | ZW16X08000 | [14] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 17. | ZW16H12000 | [8] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 18. | ZW26X08000 | [14] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 19. | ZW26X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 20. | ZN18C16013 | [2] | NUT | KOBM16x2.0mm |
| 21. | 2416P18626 | [1] | STAY | KOBSTAY |
| 22. | 2432T4525 | [1] | CLAMP | KOB |
| 23. | 2432T4524 | [1] | CLAMP | KOB |
| 24. | 2456R351 | [1] | MIRROR | KOBBACK |
| 25. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 26. | ZN18C12010 | [2] | NUT | KOBM12x1.75mm |
| 27. | R16T0137D1 | [4] | WASHER | KOBCone Disk Spring -- ID 12.2 x OD 25 x Th 0.9mm |
| 28. | ZW16X12000 | [2] | WASHER | KOBID 12 x OD 24 x Th 2.3mm |
