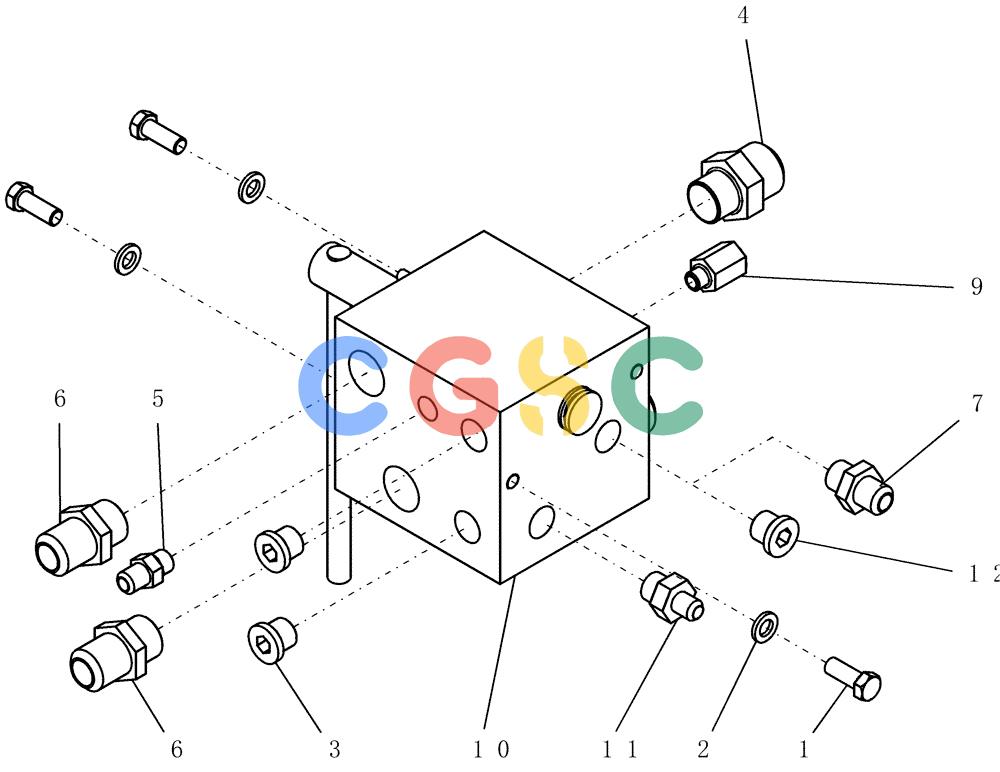

凯斯零件查询(3380) - PRECISION AIR CART (7/08-12/15) (35.104.01) - HYDRAULICS - VALVE ASSEMBLY (3 TANK) Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
385 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
88206
|
[3] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
NH
|
| 2. |
80680
|
[3] |
LOCK WASHER,3/8 0.381 CST ZND
|
NH
|
| 3. |
71100209
|
[2] |
PLUG,Hex Soc, 3/4"-16 ORB
|
BHB
Superseded by part number: 86590562
|
| 4. |
86512926
|
[1] |
HYD CONNECTOR,1-5/16" - 12 JIC x 1-1/16" - 12 ORB
|
BHB
|
| 5. |
76350
|
[1] |
HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC
|
NH
|
| 6. |
322896
|
[2] |
HYD CONNECTOR,1-1/16" - 12 ORB x 1-1/16" - 12 JIC
|
BHB
|
| 7. |
128818
|
[1] |
UNION,3/4" - 16 ORB x 3/4" - 16 JIC
|
BHB
|
| 9. |
87504023
|
[1] |
FITTING
|
SAS
stl 1/4" mb 1/8" fp
|
| 10. |
87500027
|
[1] |
VALVE
|
SAS
3 position selector
|
| 11. |
128817
|
[1] |
HYD CONNECTOR,3/4" - 16 ORB x 9/16" - 18 JIC
|
NH
|
