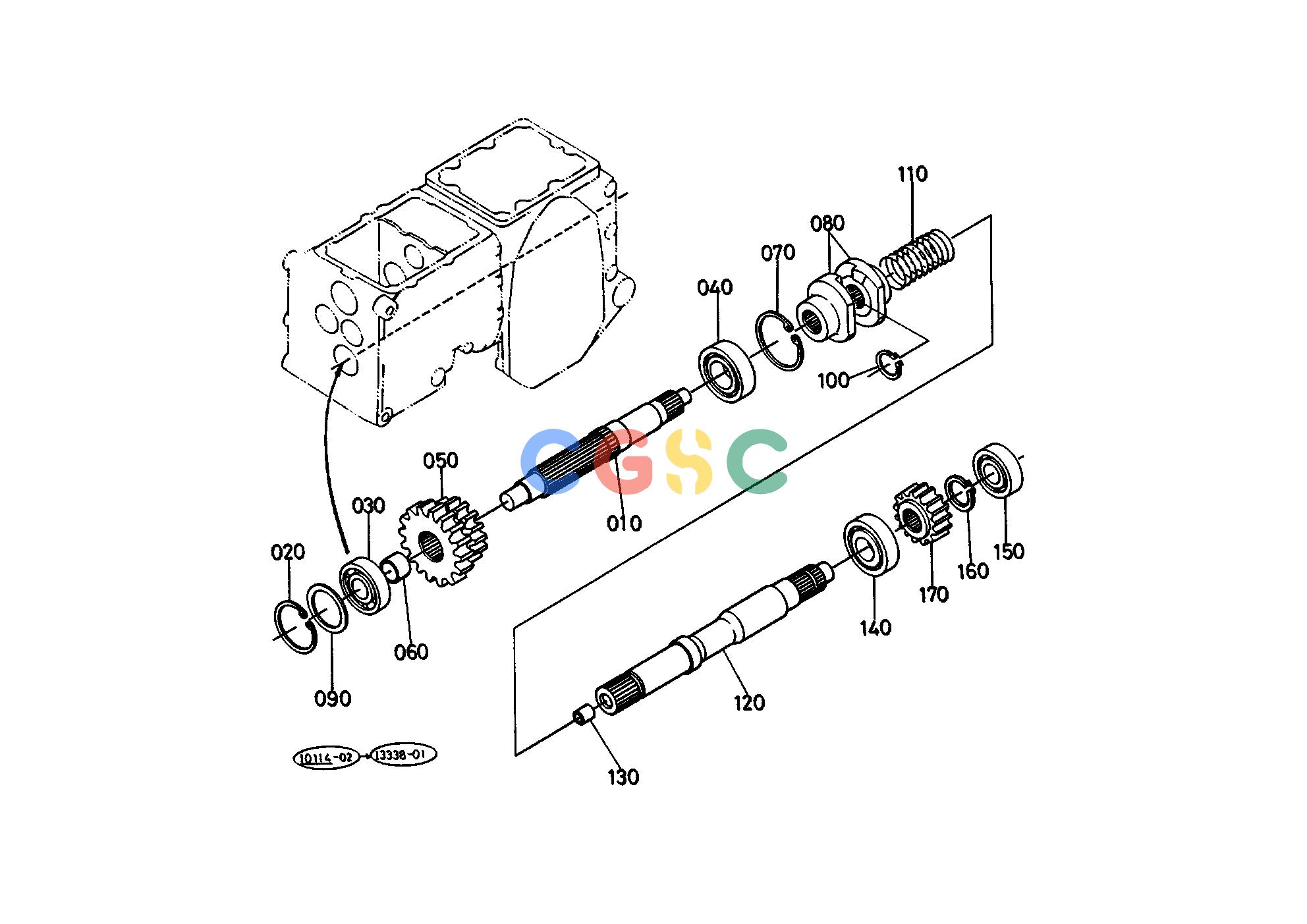

久保田零件查询T04600 3RD SHAFT/5TH SHAFT TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
510 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6620414310
|
[1] |
SHAFT
|
1.5400(lbs); 0.700
|
| 020. |
0461100470
|
[1] |
CIR CLIP INTERNAL
|
0.0132(lbs); 0.006
|
| 030. |
0810106303
|
[1] |
BEARING BALL
|
0.2464(lbs); 0.112
|
| 040. |
0810106205
|
[1] |
BEARING BALL
|
0.2640(lbs); 0.120
|
| 050. |
6620414323
|
[1] |
GEAR
|
1.2540(lbs); 0.570
|
| 060. |
6620414330
|
[1] |
COLLAR SHAFT
|
0.0660(lbs); 0.030
|
| 070. |
0461100520
|
[1] |
CIR CLIP INTERNAL
|
0.0198(lbs); 0.009
|
| 080. |
6670614380
|
[2] |
CAM ONE WAY CLUTCH
|
0.4356(lbs); 0.198
|
| 090. |
6213114170
|
[1] |
SHIM
|
0.0044(lbs); 0.002
|
| 100. |
0461200220
|
[1] |
CIR CLIP EXTERNAL
|
0.0022(lbs); 0.001
|
| 110. |
6670614390
|
[1] |
SPRING ONE-WAY
|
0.0990(lbs); 0.045
|
| 120. |
6670614510
|
[1] |
SHAFT
|
0.0000(lbs); 0.000
|
| 130. |
6670614520
|
[1] |
BUSH
|
0.0088(lbs); 0.004
|
| 140. |
6712156760
|
[1] |
BEARING BALL
|
0.0000(lbs); 0.000
|
| 140. |
6712156770
|
[1] |
BEARING BALL
|
0.2794(lbs); 0.127
|
| 150. |
6731114530
|
[1] |
BEARING BALL
|
0.2420(lbs); 0.110
|
| 160. |
0461200250
|
[1] |
CIR CLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 170. |
6620414510
|
[1] |
GEAR
|
0.2970(lbs); 0.135
|
