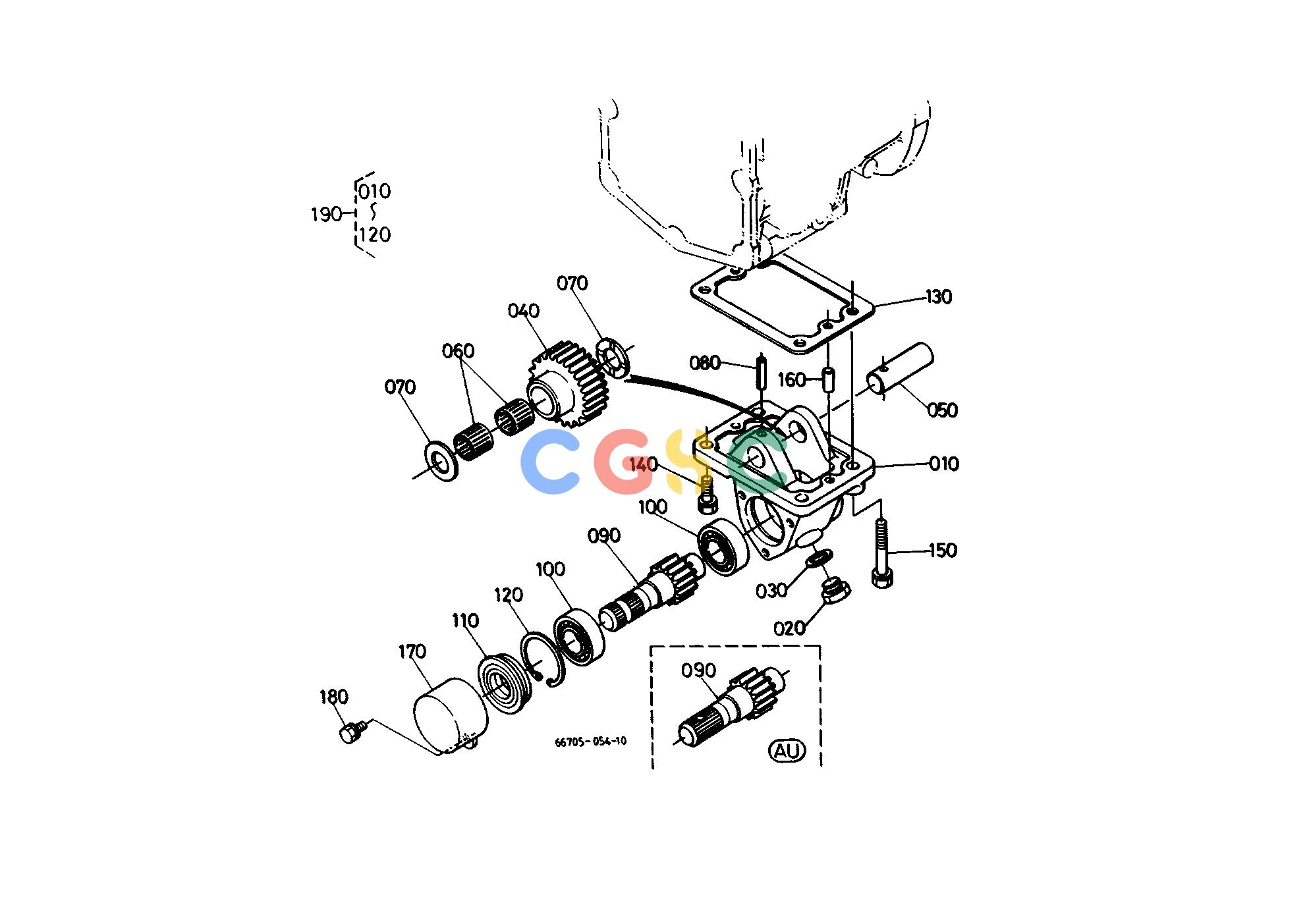

久保田零件查询T04902 MID PTO TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
745 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6706121215
|
[1] |
CASE DRIVE MID PTO
|
1.7160(lbs); 0.780
|
| 020. |
0633135016
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 030. |
0471701600
|
[1] |
WASHER WITH RUBBER
|
0.0066(lbs); 0.003
|
| 040. |
6706121223
|
[1] |
GEAR
|
0.9680(lbs); 0.440
|
| 050. |
6706121232
|
[1] |
SHAFT IDLE
|
0.4400(lbs); 0.200
|
| 060. |
6706121270
|
[2] |
BEARING NEEDLE
|
0.0660(lbs); 0.030
|
| 070. |
9638025140
|
[2] |
COLLAR SHAFT
|
0.0308(lbs); 0.014
|
| 080. |
0541100618
|
[1] |
PIN SPRING
|
0.0066(lbs); 0.003
|
| 090. |
6641721240
|
[1] |
GEAR-SHAFT
|
1.1880(lbs); 0.540
|
| 090. |
6706121242
|
[1] |
GEAR-SHAFT
|
1.1440(lbs); 0.520
|
| 100. |
0810106205
|
[2] |
BEARING BALL
|
0.2640(lbs); 0.120
|
| 110. |
3243025540
|
[1] |
SEAL OIL MID PTO
|
0.0880(lbs); 0.040
|
| 120. |
0461100520
|
[1] |
CIR CLIP INTERNAL
|
0.0198(lbs); 0.009
|
| 130. |
6620421220
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 140. |
0112351028
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 150. |
0112351040
|
[2] |
BOLT
|
0.0660(lbs); 0.030
|
| 160. |
0501200816
|
[2] |
PIN STRAIGHT
|
0.0154(lbs); 0.007
|
| 170. |
6620421250
|
[1] |
COVER MID-PTO
|
0.1540(lbs); 0.070
|
| 180. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 190. |
6641721200
|
[1] |
KIT PTO MID
|
5.0600(lbs); 2.300
|
| 190. |
6706121205
|
[1] |
ASSY PTO MID
|
5.0600(lbs); 2.300
|
