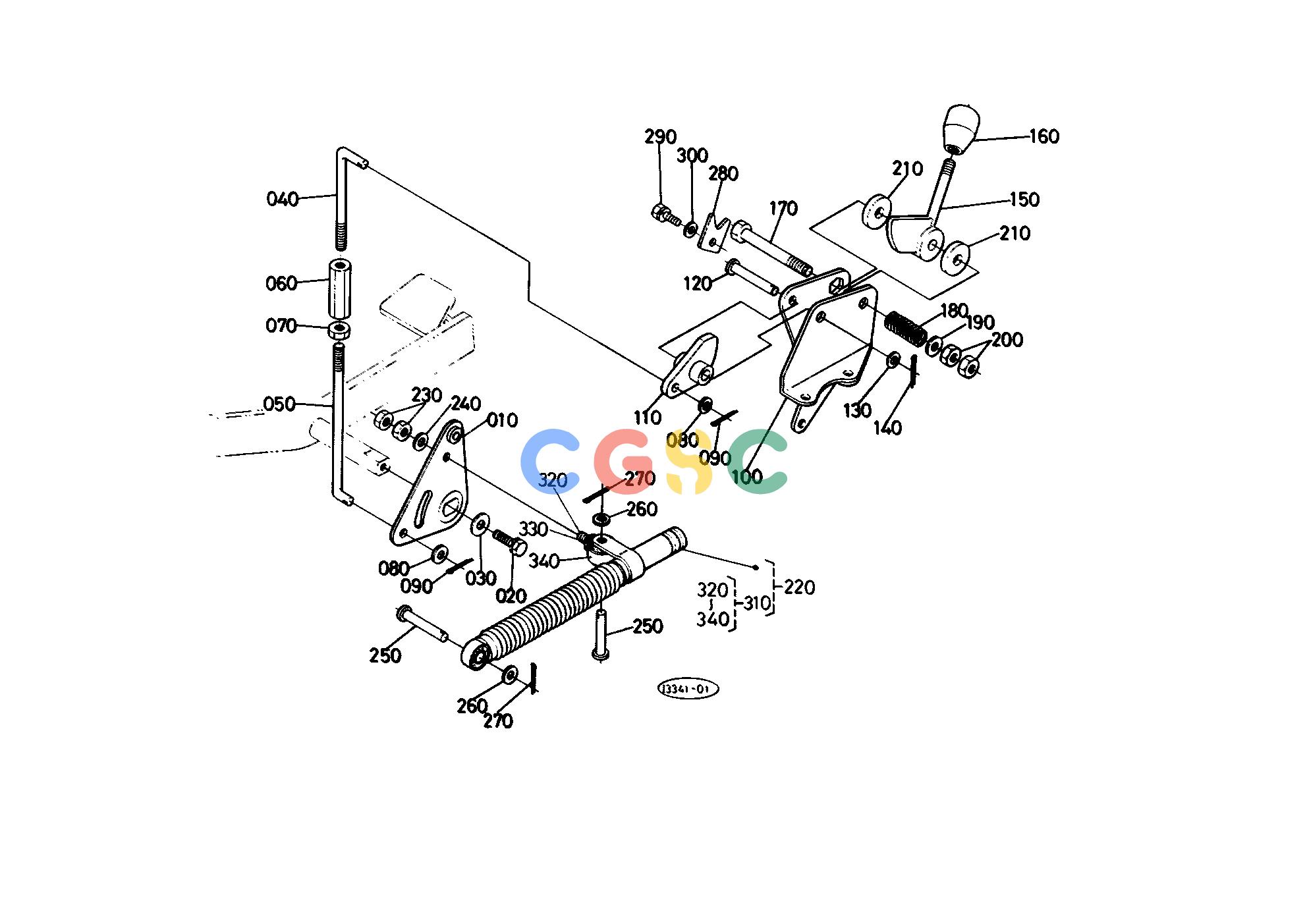

久保田零件查询T05200 SPEED CHANGE PLATE SPEED CHANGEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
359 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6620443424
|
[1] |
PLATE SPEED CHANGE
|
0.4400(lbs); 0.200
|
| 020. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 030. |
0401550080
|
[1] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 040. |
6620443430
|
[1] |
ROD CHECK UPPER
|
0.0880(lbs); 0.040
|
| 050. |
6620443440
|
[1] |
ROD CHECK UNDER
|
0.2860(lbs); 0.130
|
| 060. |
6659142410
|
[1] |
TURNBUCKLE
|
0.1012(lbs); 0.046
|
| 070. |
0211250080
|
[1] |
NUT
|
0.0066(lbs); 0.003
|
| 080. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 090. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 100. |
6620443450
|
[1] |
PLATE CHECK
|
0.9900(lbs); 0.450
|
| 110. |
6620443460
|
[1] |
INTERLOCKER
|
0.2310(lbs); 0.105
|
| 120. |
0512251045
|
[1] |
PIN JOINT
|
0.0638(lbs); 0.029
|
| 130. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 140. |
0551150318
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 150. |
6620443470
|
[1] |
LEVER CHECK
|
0.4180(lbs); 0.190
|
| 160. |
6376342260
|
[1] |
GRIP B
|
0.0462(lbs); 0.021
|
| 170. |
6620443480
|
[1] |
BOLT
|
0.1320(lbs); 0.060
|
| 180. |
6620443510
|
[1] |
SPRING
|
0.0440(lbs); 0.020
|
| 190. |
0401350100
|
[1] |
WASHER PLAIN
|
0.0088(lbs); 0.004
|
| 200. |
0211650100
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 210. |
6620443490
|
[2] |
PLATE FRICTION
|
0.0088(lbs); 0.004
|
| 220. |
6620443530
|
[1] |
DAMPER
|
0.6600(lbs); 0.300
|
| 230. |
0211250080
|
[2] |
NUT
|
0.0066(lbs); 0.003
|
| 240. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 250. |
0512250830
|
[2] |
PIN JOINT
|
0.0308(lbs); 0.014
|
| 260. |
0401250080
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 270. |
0551150215
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 280. |
6620443520
|
[1] |
WASHER LOCK
|
0.0660(lbs); 0.030
|
| 290. |
0102350610
|
[1] |
BOLT
|
0.0110(lbs); 0.005
|
| 300. |
0401350060
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 310. |
6620443600
|
[1] |
ASSY BOLT DAMPER
|
0.0770(lbs); 0.035
|
| 320. |
6620443610
|
[1] |
BOLT FULCRUM
|
0.0660(lbs); 0.030
|
| 330. |
6620443540
|
[1] |
BUSH RUBBER
|
0.0044(lbs); 0.002
|
| 340. |
6620443620
|
[1] |
COLLAR
|
0.0220(lbs); 0.010
|
