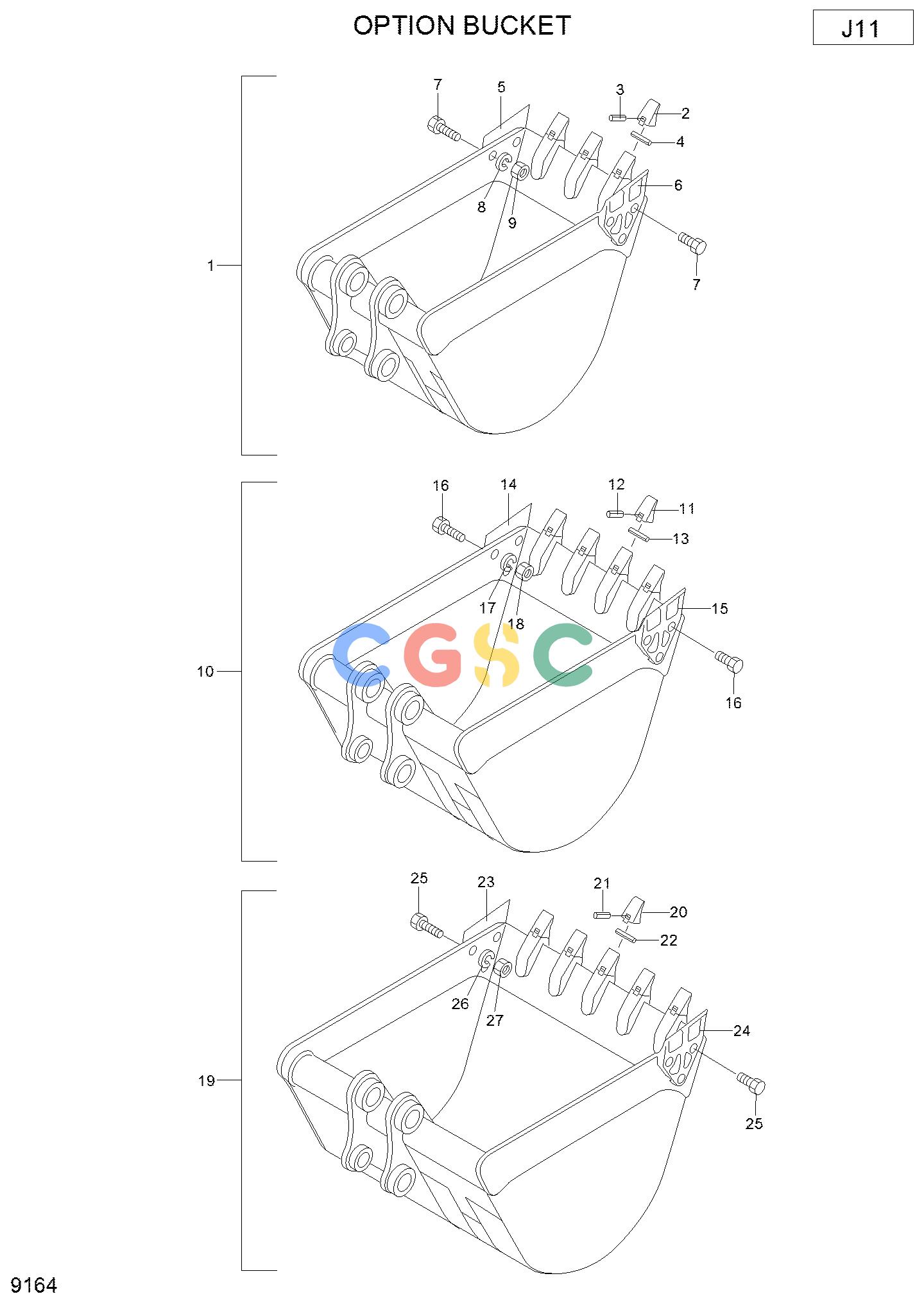

现代零件查询R75-7 OPTION BUCKETEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
524 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-01657
|
[1] |
BUCKET ASSY
|
|
| 2. |
XJDH-01082
|
[3] |
TOOTH
|
|
| 3. |
XJDH-01083
|
[3] |
PIN
|
|
| 4. |
XJDH-01084
|
[3] |
RUBBER
|
|
| 5. |
XJDH-00521
|
[1] |
SIDE CUTTER (R)
|
|
| 6. |
XJDH-00522
|
[1] |
SIDE CUTTER (L)
|
|
| 7. |
XJDH-00085
|
[6] |
BOLT
|
|
| 8. |
XJDH-00244
|
[6] |
WASHER-SPRING
|
|
| 9. |
XJDH-00172
|
[6] |
NUT
|
|
| 10. |
XJDH-01658
|
[1] |
BUCKET ASSY
|
|
| 11. |
XJDH-01082
|
[4] |
TOOTH
|
|
| 12. |
XJDH-01083
|
[8] |
PIN
|
|
| 13. |
XJDH-01084
|
[8] |
RUBBER
|
|
| 14. |
XJDH-00521
|
[1] |
SIDE CUTTER (R)
|
|
| 15. |
XJDH-00522
|
[1] |
SIDE CUTTER (L)
|
|
| 16. |
XJDH-00085
|
[6] |
BOLT
|
|
| 17. |
XJDH-00244
|
[6] |
WASHER-SPRING
|
|
| 18. |
XJDH-00172
|
[6] |
NUT
|
|
| 19. |
XJDH-01659
|
[1] |
BUCKET ASSY
|
|
| 20. |
XJDH-01082
|
[5] |
TOOTH
|
|
| 21. |
XJDH-01083
|
[10] |
PIN
|
|
| 22. |
XJDH-01084
|
[10] |
RUBBER
|
|
| 23. |
XJDH-00521
|
[1] |
SIDE CUTTER (R)
|
|
| 24. |
XJDH-00522
|
[1] |
SIDE CUTTER (L)
|
|
| 25. |
XJDH-00085
|
[6] |
BOLT
|
|
| 26. |
XJDH-00244
|
[6] |
WASHER-SPRING
|
|
| 27. |
XJDH-00172
|
[6] |
NUT
|
|
