纽荷兰零件查询(65B) - MOTORGRADERS (A1.03[001]) - CRANKSHAFT New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
645 次

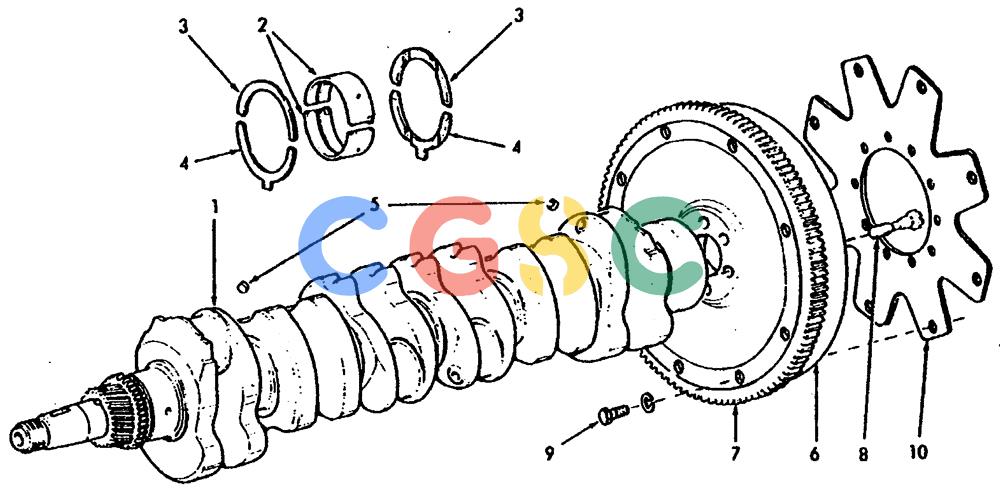

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4728135 | [1] | CRANKSHAFT | MKT Superseded by part number: 4703073 |
| 2. | 1901803 | [7] | SET OF STD MAIN BRGS | MODBEARING, HALF |
| . . | 4698690 | [14] | BEARING HALF | MKTBEARING,UPPER, -0.102MM |
| . . | 4698684 | [7] | BEARING HALF | LECBEARING, LOWER, -0.102MM Superseded by part number: 1903972 |
| . . | 1901804 | [14] | SET OF MAIN BRGS -0.254 | MODBEARING,-0.254MM(. 010"") |
| . . | 1901805 | [14] | SET OF MAIN BRGS -0.508 | MODBEARING,-0.508MM( .020"") |
| . . | 1901806 | [14] | SET OF MAIN BRGS -0.762 | MODBEARING,-0.706MM( .030"") |
| . . | 4653293 | [14] | BEARING HALF | MKTBEARING,-1.016MM(.040'') Superseded by part number: 1909642 |
| 3. | 4699805 | [2] | THRUST HALF-RING | MKTFLANGE,THRUST,UPPER Superseded by part number: 1901377 |
| . . | 4699806 | [2] | HALF-RING | LECFLANGE,+0.127MM(.005"") |
| 4. | 4699807 | [2] | FLANGE | LECTHRUST,LOWER Superseded by part number: 1901377 |
| . . | 4699808 | [2] | HALF-RING | LECFLANGE,+0.127MM(.005"") |
| 5. | 14328101 | [6] | PLUG,M8, Tapered | TOR |
| 6. | 4721067 | [1] | ENGINE FLYWHEEL | HITFLYWHEEL |
| . . | 4738248 | [1] | ENGINE FLYWHEEL | HITFLYWHEEL |
| 7. | 4704106 | [1] | RING GEAR | MODGEAR(W/MARELLI STARTER) |
| . . | 4738045 | [1] | RING GEAR | HITGEAR |
| 8. | 4764904 | [7] | RING GEAR | LECCAPSCREW |
| 9. | 73119638 | [8] | SCREW | CMICAPSCREW |
| . . | 73119569 | [8] | WASHER | CMILOCKWASHER |
| 11. | 1901377 | [1] | SET OF THRUST WASHERS (STD) | MODKIT |
| 12. | 1901378 | [1] | SET OF THRUST WASHERS +0.102 | MODKIT |
