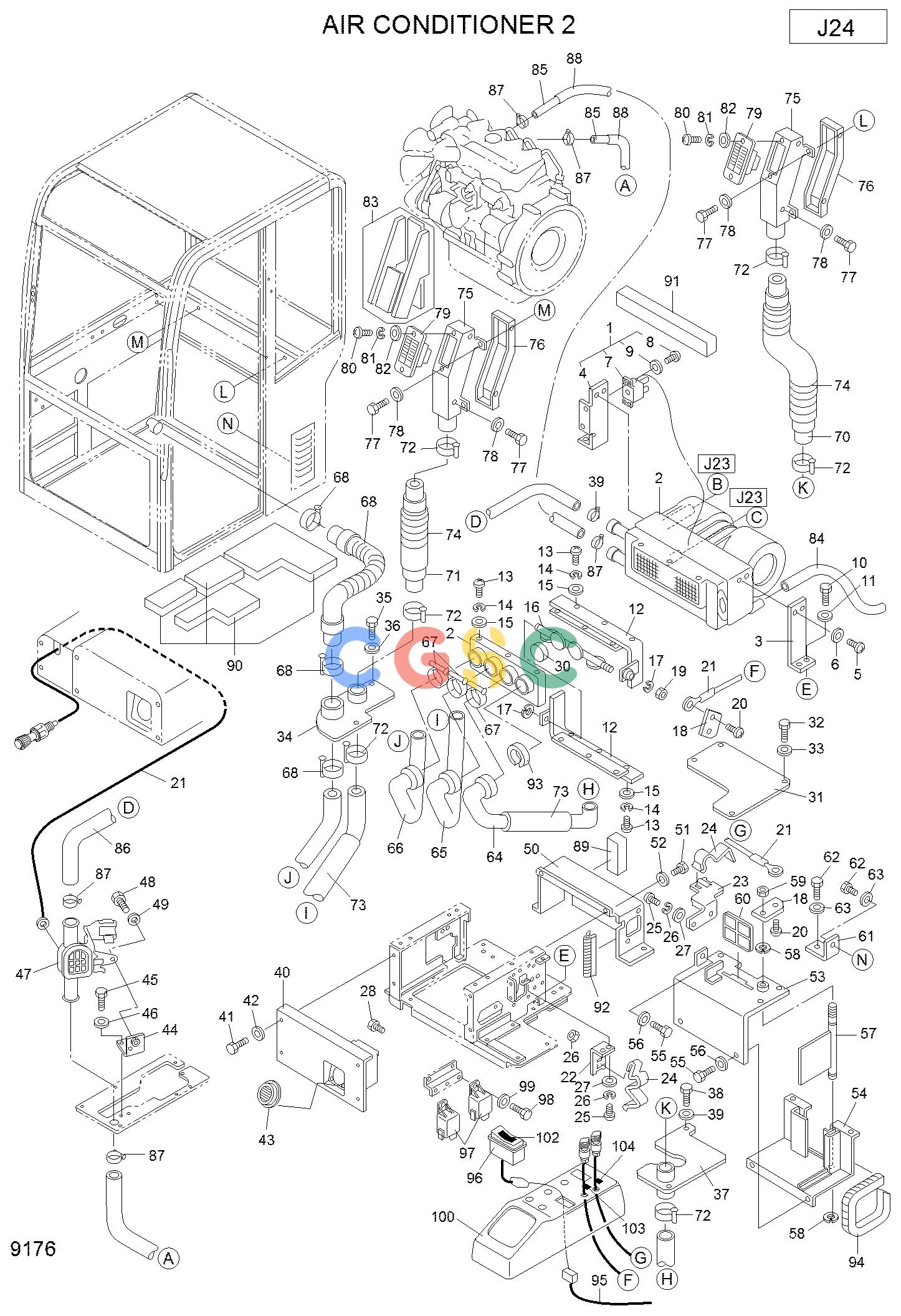

现代零件查询R75-7 AIR CONDITIONER 2EPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
791 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-02539
|
[1] |
EVAPORATOR ASSY
|
|
| 2. |
XJDH-02696
|
[1] |
EVAPORATOR
|
|
| 3. |
XJDH-02563
|
[1] |
BRACKET
|
|
| 4. |
XJDH-02722
|
[1] |
BRACKET
|
|
| 5. |
XJDH-00021
|
[4] |
BOLT
|
|
| 6. |
XJDH-00274
|
[4] |
WASHER
|
|
| 7. |
XJDH-02697
|
[1] |
SENSOR-THERMO
|
|
| 8. |
XJDH-00211
|
[2] |
SCREW-TAPPING
|
|
| 9. |
XJDH-00237
|
[2] |
WASHER-SPRING
|
|
| 10. |
XJDH-00035
|
[4] |
BOLT
|
|
| 11. |
XJDH-00276
|
[4] |
WASHER
|
|
| 12. |
XJDH-02525
|
[2] |
PLATE
|
|
| 13. |
XJDH-00206
|
[12] |
SCREW-TAPPING
|
|
| 14. |
XJDH-00236
|
[12] |
WASHER-SPRING
|
|
| 15. |
XJDH-00250
|
[12] |
WASHER
|
|
| 16. |
XJDH-02526
|
[1] |
SHAFT
|
|
| 17. |
XJDH-00317
|
[2] |
E-RING
|
|
| 18. |
XJDH-02720
|
[2] |
PLATE
|
|
| 19. |
XJDH-00184
|
[1] |
NUT
|
|
| 20. |
XJDH-00212
|
[2] |
SCREW-PAN HEAD
|
|
| 21. |
XJDH-02540
|
[3] |
CABLE
|
|
| 22. |
XJDH-02688
|
[1] |
BRACKET
|
|
| 23. |
XJDH-02723
|
[1] |
BRACKET
|
|
| 24. |
XJDH-02726
|
[2] |
CLAMP
|
|
| 25. |
XJDH-00211
|
[4] |
SCREW-TAPPING
|
|
| 26. |
XJDH-00237
|
[4] |
WASHER-SPRING
|
|
| 27. |
XJDH-00251
|
[4] |
WASHER
|
|
| 28. |
XJDH-00026
|
[1] |
BOLT
|
|
| 29. |
XJDH-00184
|
[1] |
NUT
|
|
| 30. |
XJDH-02724
|
[4] |
SEAL
|
|
| 31. |
XJDH-02716
|
[1] |
PLATE
|
|
| 32. |
XJDH-00035
|
[4] |
BOLT
|
|
| 33. |
XJDH-00276
|
[4] |
WASHER
|
|
| 34. |
XJDH-02523
|
[1] |
HOSE-JOINT
|
|
| 35. |
XJDH-00035
|
[2] |
BOLT
|
|
| 36. |
XJDH-00276
|
[2] |
WASHER
|
|
| 37. |
XJDH-02524
|
[1] |
HOSE-JOINT
|
|
| 38. |
XJDH-00035
|
[2] |
BOLT
|
|
| 39. |
XJDH-00276
|
[2] |
WASHER
|
|
| 40. |
XJDH-02534
|
[1] |
COVER-FRONT
|
|
| 41. |
XJDH-00019
|
[4] |
BOLT
|
|
| 42. |
XJDH-00274
|
[4] |
WASHER
|
|
| 43. |
XJDH-02685
|
[1] |
LOUVER
|
|
| 44. |
XJDH-02718
|
[1] |
BRACKET
|
|
| 45. |
XJDH-00035
|
[2] |
BOLT
|
|
| 46. |
XJDH-00276
|
[2] |
WASHER
|
|
| 47. |
XJDH-02541
|
[1] |
VALVE-HEATER
|
|
| 48. |
XJDH-00021
|
[1] |
BOLT
|
|
| 49. |
XJDH-00274
|
[1] |
WASHER
|
|
| 50. |
XJDH-02721
|
[1] |
COVER
|
|
| 51. |
XJDH-00035
|
[4] |
BOLT
|
|
| 52. |
XJDH-00276
|
[4] |
WASHER
|
|
| 53. |
XJDH-02543
|
[1] |
PLATE
|
|
| 54. |
XJDH-02544
|
[1] |
PLATE
|
|
| 55. |
XJDH-00019
|
[5] |
BOLT
|
|
| 56. |
XJDH-00274
|
[5] |
WASHER
|
|
| 57. |
XJDH-02545
|
[1] |
SHAFT
|
|
| 58. |
XJDH-00317
|
[2] |
E-RING
|
|
| 59. |
XJDH-00184
|
[1] |
NUT
|
|
| 60. |
XJDH-02546
|
[1] |
FILTER
|
|
| 61. |
XJDH-02725
|
[1] |
PLATE
|
|
| 62. |
XJDH-00019
|
[2] |
BOLT
|
|
| 63. |
XJDH-00274
|
[2] |
WASHER
|
|
| 64. |
XJDH-02689
|
[1] |
HOSE-DUCT
|
|
| 65. |
XJDH-02690
|
[1] |
HOSE-DUCT
|
|
| 66. |
XJDH-02691
|
[1] |
HOSE-DUCT
|
|
| 67. |
XJDH-00528
|
[3] |
BAND-HOSE
|
|
| 68. |
XJDH-00527
|
[3] |
BAND-HOSE
|
|
| 69. |
XJDH-02532
|
[1] |
HOSE-DUCT
|
|
| 70. |
XJDH-02692
|
[1] |
HOSE-DUCT
|
|
| 71. |
XJDH-02694
|
[1] |
HOSE-DUCT
|
|
| 72. |
XJDH-00526
|
[6] |
BAND
|
|
| 73. |
XJDH-02561
|
[2] |
SHEET-POLYETHYLENE
|
|
| 74. |
XJDH-02562
|
[2] |
SHEET-POLYETHYLENE
|
|
| 75. |
XJDH-02557
|
[2] |
COVER
|
|
| 76. |
XJDH-02558
|
[2] |
BOLT
|
|
| 77. |
XJDH-00019
|
[16] |
BOLT
|
|
| 78. |
XJDH-00274
|
[16] |
WASHER
|
|
| 79. |
XJDH-02542
|
[2] |
LOUVER
|
|
| 80. |
XJDH-00206
|
[4] |
SCREW-TAPPING
|
|
| 81. |
XJDH-00236
|
[4] |
WASHER-SPRING
|
|
| 82. |
XJDH-00250
|
[4] |
WASHER
|
|
| 83. |
XJDH-02715
|
[2] |
SHEET-POLYETHYLENE
|
|
| 84. |
XJDH-00768
|
[2] |
HOSE-CAR HEATER
|
|
| 85. |
XJDH-00773
|
[2] |
HOSE-CAR HEATER
|
|
| 86. |
XJDH-00770
|
[1] |
HOSE-CAR HEATER
|
|
| 87. |
XJDH-00525
|
[6] |
BAND
|
|
| 88. |
XJDH-00565
|
[2] |
HOSE-VINYL
|
|
| 89. |
XJDH-02695
|
[1] |
FOAM-URETHAN
|
|
| 90. |
XJDH-02547
|
[1] |
FOAM-URETHAN
|
|
| 91. |
XJDH-00757
|
[1] |
FOAM-URETHAN
|
|
| 92. |
XJDH-00713
|
[1] |
STRIP-WEATHER
|
|
| 93. |
XJDH-00759
|
[1] |
FOAM-URETHAN
|
|
| 94. |
XJDH-00715
|
[1] |
STRIP-WEATHER
|
|
| 95. |
XJDH-02519
|
[1] |
HARNESS
|
|
| 96. |
XJDH-02520
|
[1] |
SWITCH
|
|
| 97. |
XJDH-01000
|
[2] |
RELAY
|
|
| 98. |
XJDH-00019
|
[2] |
BOLT
|
|
| 99. |
XJDH-00274
|
[2] |
WASHER
|
|
| 100. |
XJDH-02550
|
[1] |
COVER(L)
|
|
| 101. |
XJDH-00698
|
[1] |
GROMMET
|
|
| 102. |
XJDH-02512
|
[1] |
LABEL
|
|
| 103. |
XJDH-02513
|
[1] |
LABEL
|
|
| 104. |
XJDH-02514
|
[1] |
LABEL
|
|
