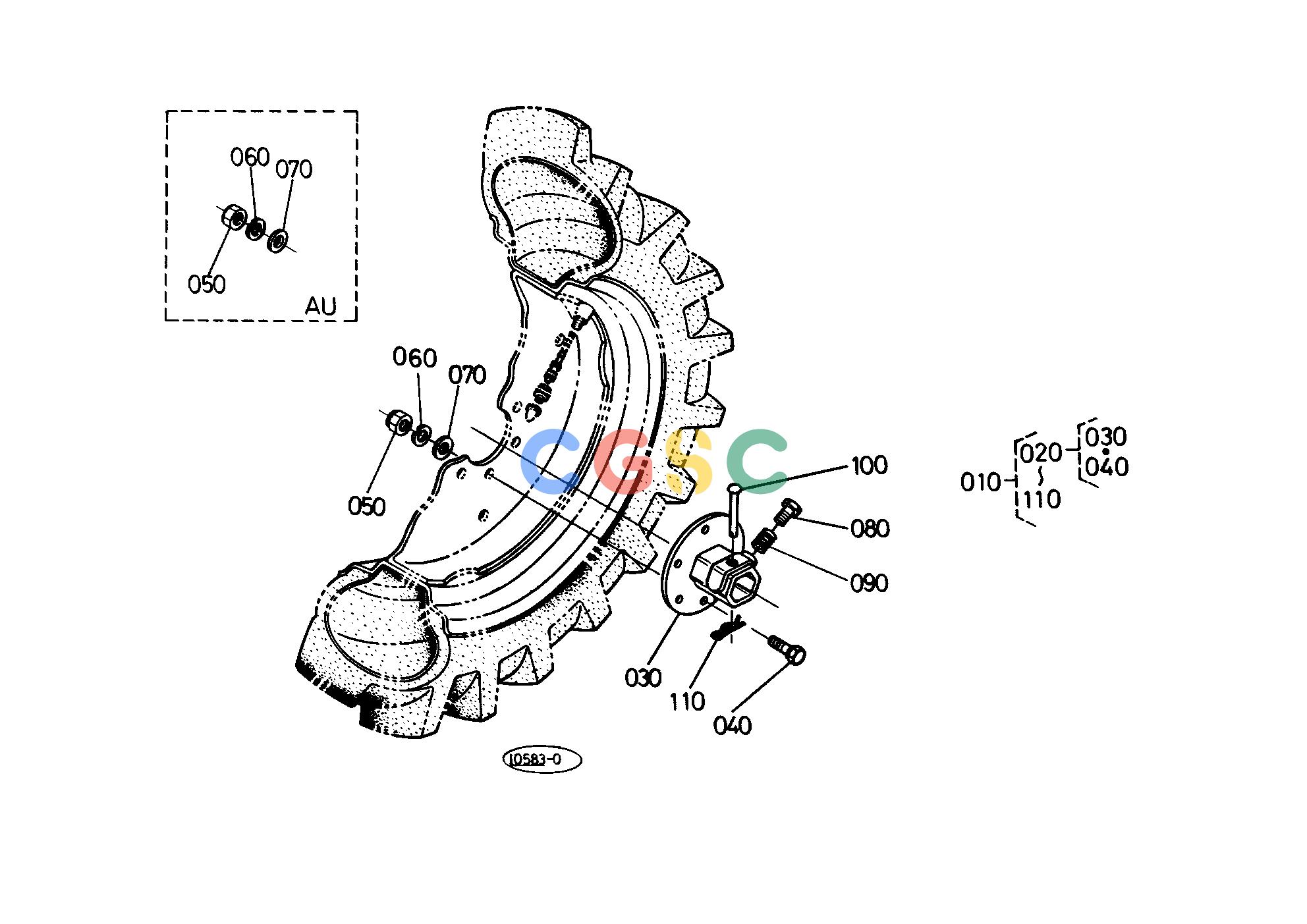

久保田零件查询T05800 WHEEL HUB REAR AXLEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
497 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6670417220
|
[2] |
ASSY HUB WHEEL
|
0.0000(lbs); 0.000
|
| 010. |
6701117300
|
[2] |
ASSY HUB WHEEL
|
0.0000(lbs); 0.000
|
| 020. |
6672217300
|
[2] |
ASSY HUB BOLT
|
0.0000(lbs); 0.000
|
| 030. |
6672217150
|
[2] |
HUB WHEEL
|
6.1600(lbs); 2.800
|
| 040. |
6670417313
|
[12] |
BOLT
|
0.1078(lbs); 0.049
|
| 050. |
3534011390
|
[12] |
NUT
|
0.0660(lbs); 0.030
|
| 050. |
0207450140
|
[12] |
NUT
|
0.0462(lbs); 0.021
|
| 060. |
0451250140
|
[12] |
WASHER SPRING
|
0.0154(lbs); 0.007
|
| 070. |
0401350140
|
[12] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 080. |
6373317250
|
[2] |
SCREW
|
0.1760(lbs); 0.080
|
| 090. |
6351217230
|
[2] |
SPRING SET BOLT
|
0.0308(lbs); 0.014
|
| 100. |
6662117160
|
[2] |
PIN AXLE
|
0.1100(lbs); 0.050
|
| 110. |
6213117290
|
[2] |
PIN
|
0.0088(lbs); 0.004
|
