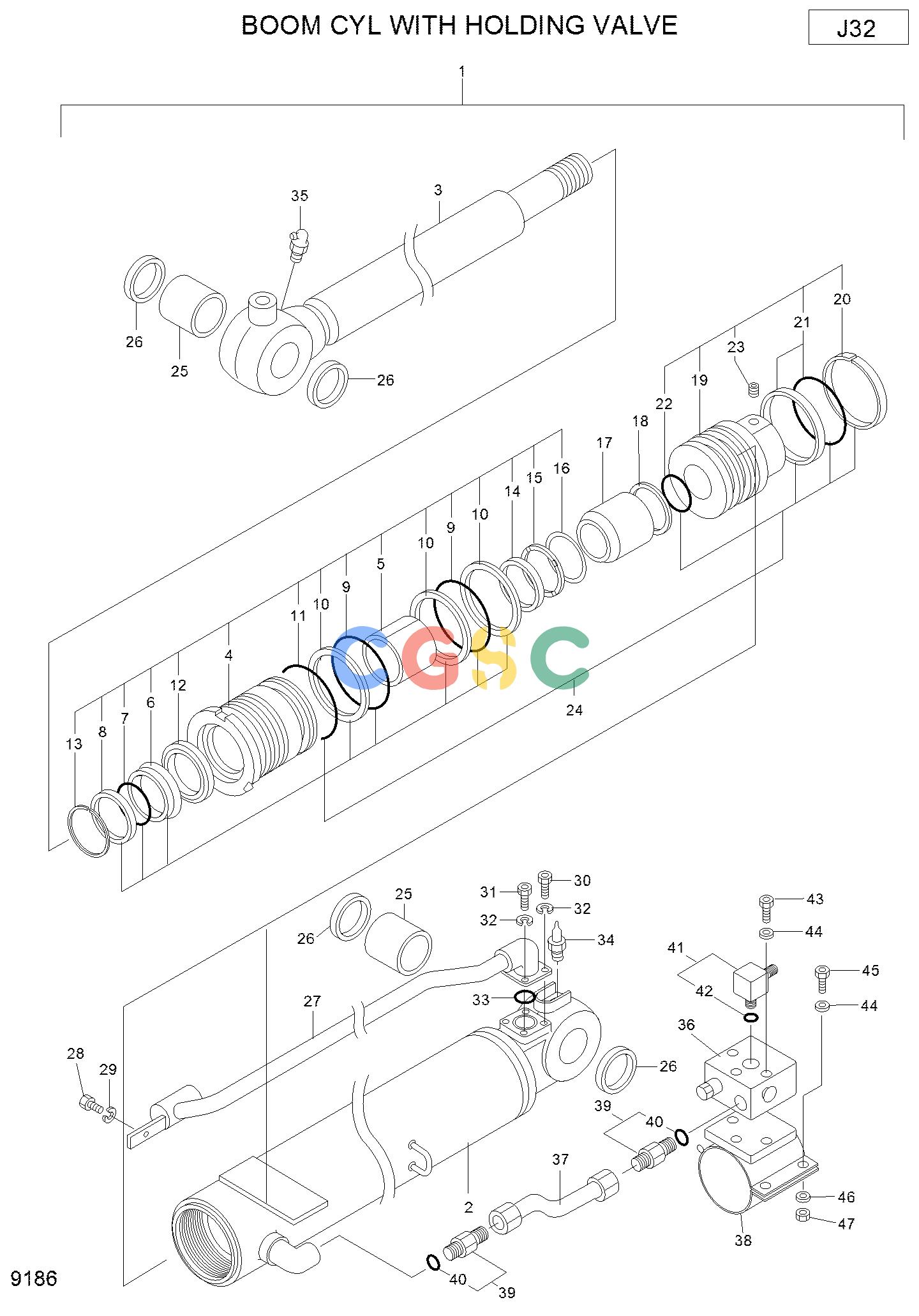

现代零件查询R75-7 BOOM CYL WITH HOLDING VALVEEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
918 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-01756
|
[1] |
BOOM CYLINDER ASSY
|
|
| 2. |
XJDH-02289
|
[1] |
TUBE ASSY-CYLINDER
|
|
| 3. |
XJDH-02290
|
[1] |
PISTON ROD ASSY
|
|
| 4. |
XJDH-02291
|
[1] |
HEAD-CYLINDER
|
|
| 5. |
XJDH-02292
|
[1] |
BUSHING
|
|
| 6. |
XJDH-02293
|
[1] |
PACKING-ROD
|
|
| 7. |
XJDH-02294
|
[1] |
RING-BACK UP
|
|
| 8. |
XJDH-02295
|
[1] |
SEAL-DUST
|
|
| 9. |
XJDH-02296
|
[2] |
O-RING
|
|
| 10. |
XJDH-02297
|
[3] |
RING-BACK UP
|
|
| 11. |
XJDH-02298
|
[1] |
O-RING
|
|
| 12. |
XJDH-02299
|
[1] |
RING-BUFFER
|
|
| 13. |
XJDH-02300
|
[1] |
RING-SNAP
|
|
| 14. |
XJDH-02301
|
[1] |
COLLAR-CUSHION
|
|
| 15. |
XJDH-02302
|
[1] |
COLLAR
|
|
| 16. |
XJDH-02303
|
[1] |
STOPPER
|
|
| 17. |
XJDH-02304
|
[1] |
PLUNGER
|
|
| 18. |
XJDH-02305
|
[1] |
SEAL
|
|
| 19. |
XJDH-02306
|
[1] |
PISTON
|
|
| 20. |
XJDH-02136
|
[1] |
RING-WEAR
|
|
| 21. |
XJDH-02308
|
[1] |
RING-PISTON
|
|
| 22. |
XJDH-02309
|
[1] |
O-RING
|
|
| 23. |
XJDH-02310
|
[1] |
SCREW-SET
|
|
| 24. |
XJDH-01741
|
[1] |
PACKING ASSY
|
|
| 25. |
XJDH-02311
|
[2] |
PIN-BUSHING
|
|
| 26. |
XJDH-02312
|
[4] |
SEAL-DUST
|
|
| 27. |
XJDH-02313
|
[1] |
PIPE
|
|
| 28. |
XJDH-00057
|
[1] |
BOLT
|
|
| 29. |
XJDH-00278
|
[1] |
WASHER
|
|
| 30. |
XJDH-00124
|
[2] |
BOLT-SOCKET HEAD
|
|
| 31. |
XJDH-00125
|
[2] |
BOLT-SOCKET HEAD
|
|
| 32. |
XJDH-00241
|
[4] |
WASHER-SPRING
|
|
| 33. |
XJDH-02314
|
[1] |
O-RING
|
|
| 34. |
XJDH-00373
|
[1] |
NIPPLE-GREASE
|
|
| 35. |
XJDH-00377
|
[1] |
NIPPLE-GREASE 90
|
|
| 36. |
XJDH-01757
|
[1] |
VALVE-HOLDING
|
|
| 37. |
XJDH-01758
|
[1] |
PIPE
|
|
| 38. |
XJDH-01759
|
[1] |
BAND
|
|
| 39. |
XJDH-00457
|
[2] |
CONNECTOR-MALE
|
|
| 40. |
XJDH-00334
|
[2] |
O-RING
|
|
| 41. |
XJDH-00472
|
[1] |
ELBOW-MALE 90
|
|
| 42. |
XJDH-00331
|
[1] |
O-RING
|
|
| 43. |
XJDH-00049
|
[3] |
BOLT
|
|
| 44. |
XJDH-00242
|
[5] |
WASHER-SPRING
|
|
| 45. |
XJDH-00048
|
[2] |
BOLT
|
|
| 46. |
XJDH-00278
|
[4] |
WASHER
|
|
| 47. |
XJDH-00167
|
[2] |
NUT
|
|
