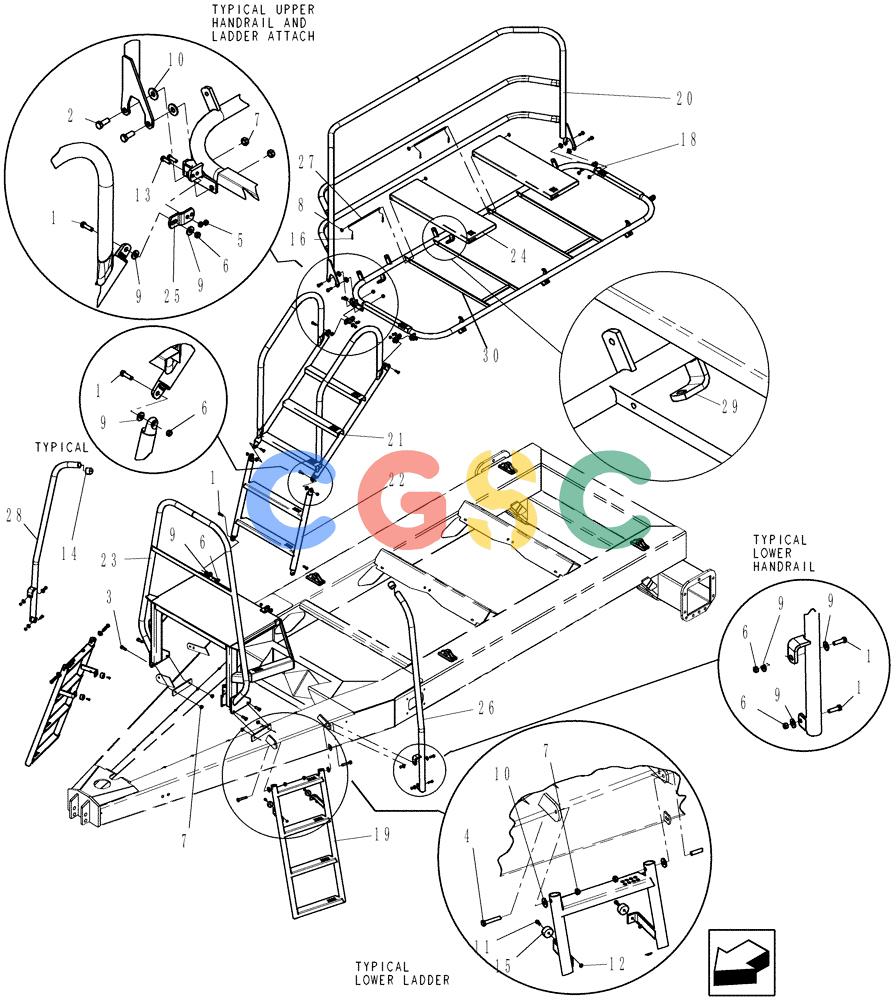

| 1. |
88011
|
[11] |
BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5
|
NH
|
| 2. |
87670
|
[4] |
BOLT,1/2" - 13 x 1-1/4", Full Thd, Gr 5
|
NH
|
| 3. |
87689
|
[4] |
BOLT,1/2"-13 x 1.813" OAL, Gr 5
|
NH
|
| 4. |
87974
|
[4] |
BOLT,Hex, 1/2" - 13 x 2 3/4", Gr 5
|
WIN
|
| 5. |
9637692
|
[4] |
NUT,3/8"-16, GB
|
NH
|
| 6. |
88902
|
[10] |
NUT,3/8"-16
|
NH
|
| 7. |
280129
|
[12] |
NUT,1/4"-20
|
NH
|
| 8. |
80664
|
[4] |
WASHER,0.38" ID x 0.88" OD x 0.08" Thk
|
NH
|
| 9. |
80702
|
[14] |
WASHER,0.44" ID x 1" OD x 0.08" Thk
|
NH
|
| 10. |
80700
|
[8] |
WASHER,0.56" ID x 1.38" OD x 0.11" Thk
|
NH
|
| 11. |
9707580
|
[4] |
BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd
|
NH
|
| 13. |
88206
|
[4] |
BOLT,Hex, 3/8" - 16 x 1", Gr 5
|
NH
|
| 14. |
3419
|
[2] |
CAP
|
FLX
vinyl 1 5/8" x 1 1/2"
|
| 15. |
51200147
|
[4] |
FOOT
|
FLX
rubber, 1 1/2" od x 1/4" id x 3/4"
|
| 16. |
87395
|
[4] |
COTTER PIN,1/8" OD x 1-1/4" OAL
|
NH
|
| 18. |
GL-186
|
[1] |
PLATFORM
|
FLX
tank top
|
| 19. |
GL-188
|
[2] |
LADDER
|
FLX
hitch frame
|
| 20. |
GL-190
|
[1] |
HANDRAIL
|
FLX
tank
|
| 21. |
GL-192
|
[1] |
LADDER
|
FLX
upper
|
| 22. |
GL-193
|
[1] |
LADDER
|
FLX
lower tank
|
| 22. |
87420825
|
[1] |
LADDER
|
SAS
lower tank 430 bushel cart
|
| 23. |
GL-330
|
[1] |
PLATFORM
|
FLX
frame
|
| 24. |
GL-350
|
[2] |
GRATING
|
FLX
top platform - flip up
|
| 25. |
84496340
|
[1] |
BRACKET
|
SAS
ladder top platform RH
|
| 25. |
84496341
|
[1] |
BRACKET
|
SAS
ladder top platform LH
|
| 26. |
GL-356
|
[1] |
HANDRAIL
|
FLX
frame LH
|
| 27. |
GL-747
|
[2] |
PIN
|
FLX
step grating platform
|
| 28. |
GL-755
|
[1] |
RAIL ASSY.
|
FLX
right - frame mount
|
| 29. |
84333264
|
[3] |
LUG
|
SAS
Mounting Top Platform
|
| 30. |
84333266
|
[4] |
BRACKET
|
SAS
Brace, Floor, Platform
|
