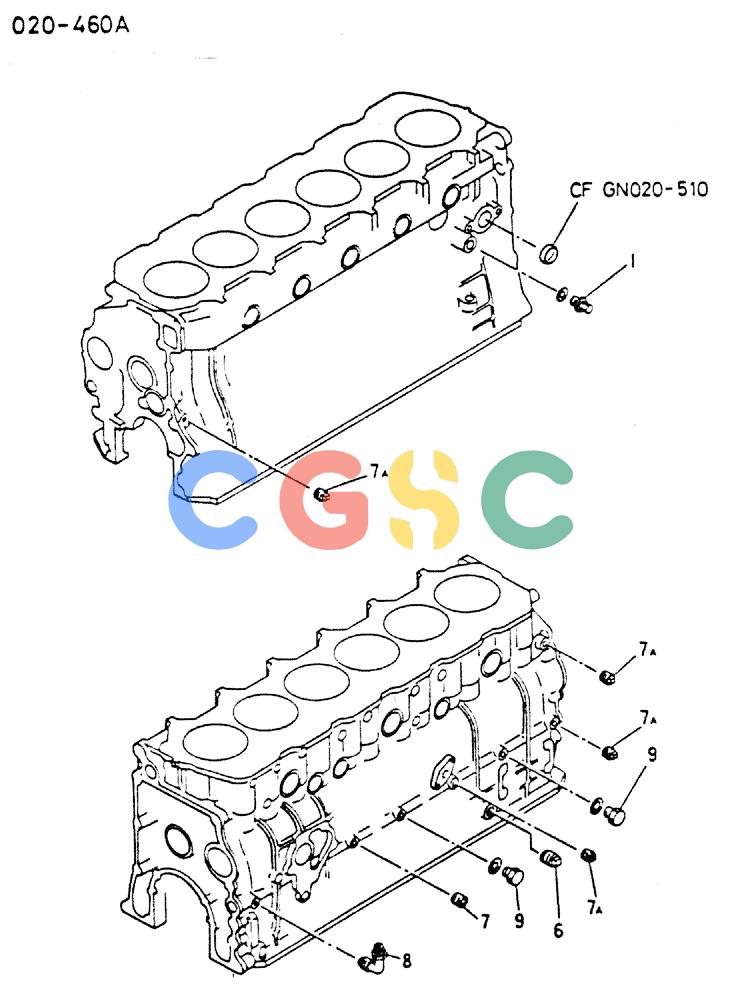

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-023) - ENGINE ATTACHING PARTS 020-460A Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1012 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | VAMH037773 | [1] | PLUG | KOBPLUG, DRAIN 20, Start Serial: 9002- |
| . . | VAMH037720 | [1] | PLUG DRAIN PLUG, DRAIN 20, Serial Range: --9001 | PLUG DRAIN PLUG, DRAIN 20, Serial Range: --9001 |
| . . | VAMF660068 | [1] | PACKING | KOBGASKET 20 Superseded by part number: VAF420220000 |
| 6. | VAMS666222 | [1] | PLUG | SMPLUG, TAPER PT 3/8 |
| 7. | VAMH037237 | [1] | PLUG | KOBPLUG, TAPER PT 1/8 |
| 7A. | VAMH037135 | [3] | PLUG PLUG, TAPER PT 1/8 | PLUG PLUG, TAPER PT 1/8 |
| 8. | VA3123353700 | [1] | ELBOW | KOBELBOW |
| 9. | VAME031088 | [2] | PLUG | KOB |
| . . | VAMF660063 | [2] | GASKET | KOBGASKET 10 Superseded by part number: VAF420210000 |
