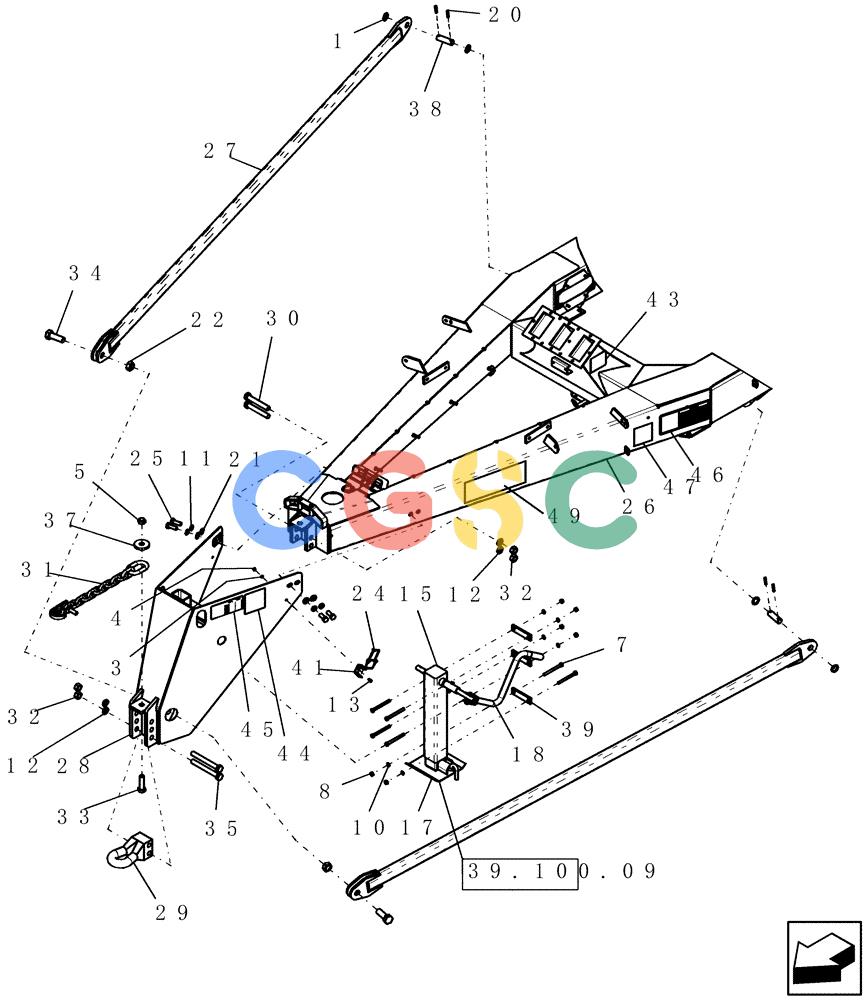

| 1. |
86632583
|
[4] |
WASHER,1.28" ID x 2" OD x 0.12" Thk
|
FOR
|
| 3. |
80681
|
[1] |
LOCK NUT,5/16"
|
NH
Superseded by part number: 83990583
|
| 4. |
9635082
|
[1] |
NUT,5/16" - 18, Gr 5
|
NH
|
| 5. |
280286
|
[1] |
NUT,1"-8, GB
|
NH
|
| 7. |
88576
|
[6] |
BOLT,Hex, 1/2" - 13 x 5 1/2", Gr 5
|
NH
|
| 8. |
280431
|
[6] |
NUT,1/2"-13, G5
|
NH
|
| 10. |
80679
|
[6] |
LOCK WASHER,1/20.507 CST ZND
|
NH
|
| 11. |
87340
|
[4] |
LOCK WASHER,Helical Spring, 0.759" ID, CST, ZND
|
NH
|
| 12. |
87342
|
[4] |
LOCK WASHER,25.48mm ID x 42.06mm OD x 6.35mm Thk
|
WIN
|
| 13. |
87872
|
[1] |
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
|
NH
|
| 15. |
21803
|
[1] |
JACK
|
FLX
assembly - 10,000lb x 26"
|
| 17. |
22031
|
[1] |
JACK
|
FLX
10,000lb x 26" - without crank Superseded by part number: 21803
|
| 18. |
22032
|
[1] |
CRANK
|
FLX
assy for jack 10000 lb x 26
|
| 20. |
87577
|
[4] |
LOCK PIN,9.53mm OD x 50.8mm L, Slotted
|
NH
Superseded by part number: 86624061
|
| 21. |
87381
|
[4] |
WASHER,0.81" ID x 1.47" OD x 0.13" Thk
|
NH
|
| 22. |
86609684
|
[2] |
NUT,1 1/4"-7, GB
|
PA
|
| 24. |
6854
|
[1] |
PIN
|
FLX
quick - 1/4" x 2 1/2" usable
|
| 25. |
426-1232
|
[4] |
BOLT,Hex, 3/4" - 10 x 2", Gr 8
|
CAS
Superseded by part number: 9635076
|
| 26. |
87601429
|
[1] |
FRAME
|
SAS
2 tank
|
| 26. |
87505223
|
[1] |
FRAME
|
SAS
ADX3380/3430
|
| 27. |
87433839
|
[2] |
LINK
|
SAS
tension tow between hitch
|
| 28. |
87433840
|
[1] |
HITCH
|
SAS
front 380/430
|
| 29. |
87506220
|
[1] |
HITCH
|
SAS
hitch
|
| 29. |
84471082
|
[1] |
HITCH
|
SAS
CAT 4,5, Not Shown
|
| 30. |
426-16104
|
[2] |
BOLT,Hex, 1" - 8 x 6-1/2", Gr 8
|
CON
|
| 31. |
87619912
|
[1] |
CHAIN
|
SAS
safety, 40,400 lb
|
| 32. |
86511609
|
[4] |
NUT,1"-8, G8
|
FOR
|
| 33. |
86979387
|
[1] |
BOLT,Hex, 1" - 8 x 3 1/2", Gr 8
|
GI
|
| 34. |
87037002
|
[2] |
BOLT,Hex, 1 1/4" - 7 x 3 1/2", Gr 8
|
SAS
|
| 35. |
87020629
|
[2] |
BOLT,Hex, 1" - 8 x 8 1/2", Gr 8
|
SAS
|
| 37. |
GD-622
|
[1] |
WASHER
|
FLX
safety chain
|
| 38. |
GL-499
|
[2] |
HEADLESS PIN
|
FLX
1 1/4" x 2 15/16" usable
|
| 39. |
GL-639
|
[3] |
PLATE
|
FLX
retainer, jack
|
| 41. |
GL-958
|
[1] |
BRACKET
|
FLX
jack handle rest
|
| 43. |
GD-300.05
|
[1] |
DECAL
|
FLX
attention fan
|
| 44. |
GD-500.72
|
[2] |
CAUTION DECAL
|
FLX
|
| 45. |
GD-500.77
|
[2] |
CAUTION DECAL
|
FLX
hydraulics
|
| 46. |
GL-700.19
|
[2] |
DECAL
|
FLX
electrocution hazard
|
| 47. |
87503916
|
[1] |
DECAL
|
SAS
hydraulic flow
|
| 48. |
GL-700.01
|
[1] |
DECAL
|
FLX
manifold lift lever
|
| 49. |
87643140
|
[1] |
DECAL
|
SAS
Precision Air 2280 LH
|
| 49. |
87643141
|
[1] |
DECAL
|
SAS
Precision Air 2280 RH
|
| 49. |
87643142
|
[1] |
DECAL
|
SAS
Precision Air 2330 LH
|
| 49. |
87643143
|
[1] |
DECAL
|
SAS
Precision Air 2330 RH
|
| 49. |
87643144
|
[1] |
DECAL
|
SAS
Precision Air 3380 LH
|
| 49. |
87643145
|
[1] |
DECAL
|
SAS
Precision Air 3380 RH
|
| 49. |
87643146
|
[1] |
DECAL
|
SAS
Precision Air 3430 LH
|
| 49. |
87643147
|
[1] |
DECAL
|
SAS
Precision Air 3430 RH
|
