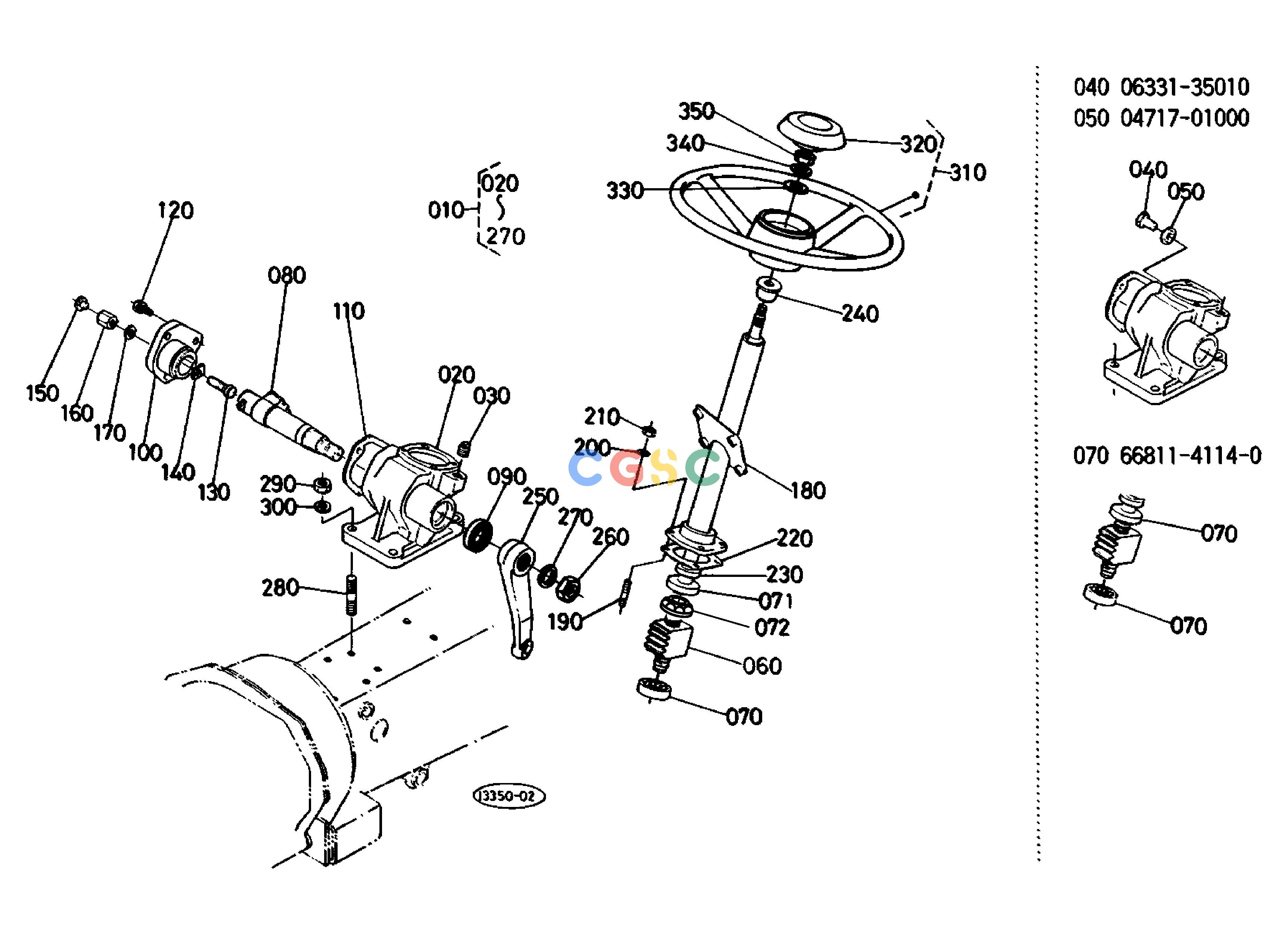

久保田零件查询T07200 STEERING STEERINGEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
946 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6620441102
|
[1] |
ASSY STEERING
|
14.9600(lbs); 6.800
|
| 020. |
6620441110
|
[1] |
CASE STEERING GEAR
|
0.0000(lbs); 0.000
|
| 020. |
6620441113
|
[1] |
CASE STEERING GEAR
|
5.7860(lbs); 2.630
|
| 030. |
3415016640
|
[1] |
PLUG
|
0.0330(lbs); 0.015
|
| 040. |
0633135010
|
[1] |
PLUG
|
0.0264(lbs); 0.012
|
| 050. |
0471701000
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 060. |
6681141200
|
[1] |
COMP.NUT BALL
|
2.2000(lbs); 1.000
|
| 060. |
H668041202
|
[1] |
COMP.NUT BALL
|
2.2000(lbs); 1.000
|
| 070. |
6681141140
|
[1] |
BEARING THRUST BALL
|
0.0990(lbs); 0.045
|
| 071. |
6681191110
|
[1] |
BEARING OUTER
|
0.0682(lbs); 0.031
|
| 072. |
6681191120
|
[1] |
BEARING OUTER
|
0.0220(lbs); 0.010
|
| 080. |
6681141150
|
[1] |
SHAFT SECTOR
|
1.1440(lbs); 0.520
|
| 080. |
H668041150
|
[1] |
SHAFT SECTOR
|
1.1440(lbs); 0.520
|
| 090. |
0950022358
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 100. |
6681141160
|
[1] |
COVER SIDE
|
0.6600(lbs); 0.300
|
| 110. |
6681141170
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 120. |
0112350822
|
[3] |
BOLT
|
0.0264(lbs); 0.012
|
| 130. |
6681141180
|
[1] |
SCREW ADJUSTING
|
0.0286(lbs); 0.013
|
| 140. |
6681141190
|
[1] |
COLLAR ADJUSTING
|
0.0044(lbs); 0.002
|
| 140. |
6681141210
|
[1] |
COLLAR ADJUSTING
|
0.0022(lbs); 0.001
|
| 140. |
6681141220
|
[1] |
COLLAR ADJUSTING
|
0.0022(lbs); 0.001
|
| 140. |
6681141230
|
[1] |
COLLAR ADJUSTING
|
0.0022(lbs); 0.001
|
| 140. |
6681141240
|
[1] |
COLLAR ADJUSTING
|
0.0022(lbs); 0.001
|
| 150. |
6101118140
|
[1] |
PLUG RUBBER
|
0.0044(lbs); 0.002
|
| 160. |
6681141250
|
[1] |
NUT
|
0.0594(lbs); 0.027
|
| 170. |
0471400080
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 180. |
6620441122
|
[1] |
POST STEERING
|
1.1000(lbs); 0.500
|
| 180. |
H662041120
|
[1] |
POST STEERING
|
1.1000(lbs); 0.500
|
| 190. |
0151350822
|
[4] |
STUD
|
0.0220(lbs); 0.010
|
| 200. |
0451250080
|
[4] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 210. |
0211450080
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 220. |
6681141320
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 220. |
6681141340
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 220. |
6681141350
|
[1] |
SHIM
|
0.0022(lbs); 0.001
|
| 220. |
6681141360
|
[1] |
SHIM
|
0.0066(lbs); 0.003
|
| 220. |
6681141370
|
[1] |
SHIM
|
0.0154(lbs); 0.007
|
| 230. |
0950016287
|
[1] |
SEAL OIL
|
0.0220(lbs); 0.010
|
| 240. |
6721141150
|
[1] |
BUSH POST
|
0.0352(lbs); 0.016
|
| 250. |
6620441410
|
[1] |
ARM PITMAN
|
0.8800(lbs); 0.400
|
| 260. |
0217250160
|
[1] |
NUT
|
0.0374(lbs); 0.017
|
| 270. |
0451250160
|
[1] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 280. |
0151751028
|
[4] |
STUD
|
0.0484(lbs); 0.022
|
| 290. |
0211850100
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 300. |
0451250100
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 310. |
3240016800
|
[1] |
ASSY WHEEL STEERING
|
4.3120(lbs); 1.960
|
| 320. |
3240016820
|
[1] |
PAD STEERING
|
0.1100(lbs); 0.050
|
| 330. |
0401350120
|
[1] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 340. |
0451250120
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 350. |
0217250120
|
[1] |
NUT
|
0.0220(lbs); 0.010
|
