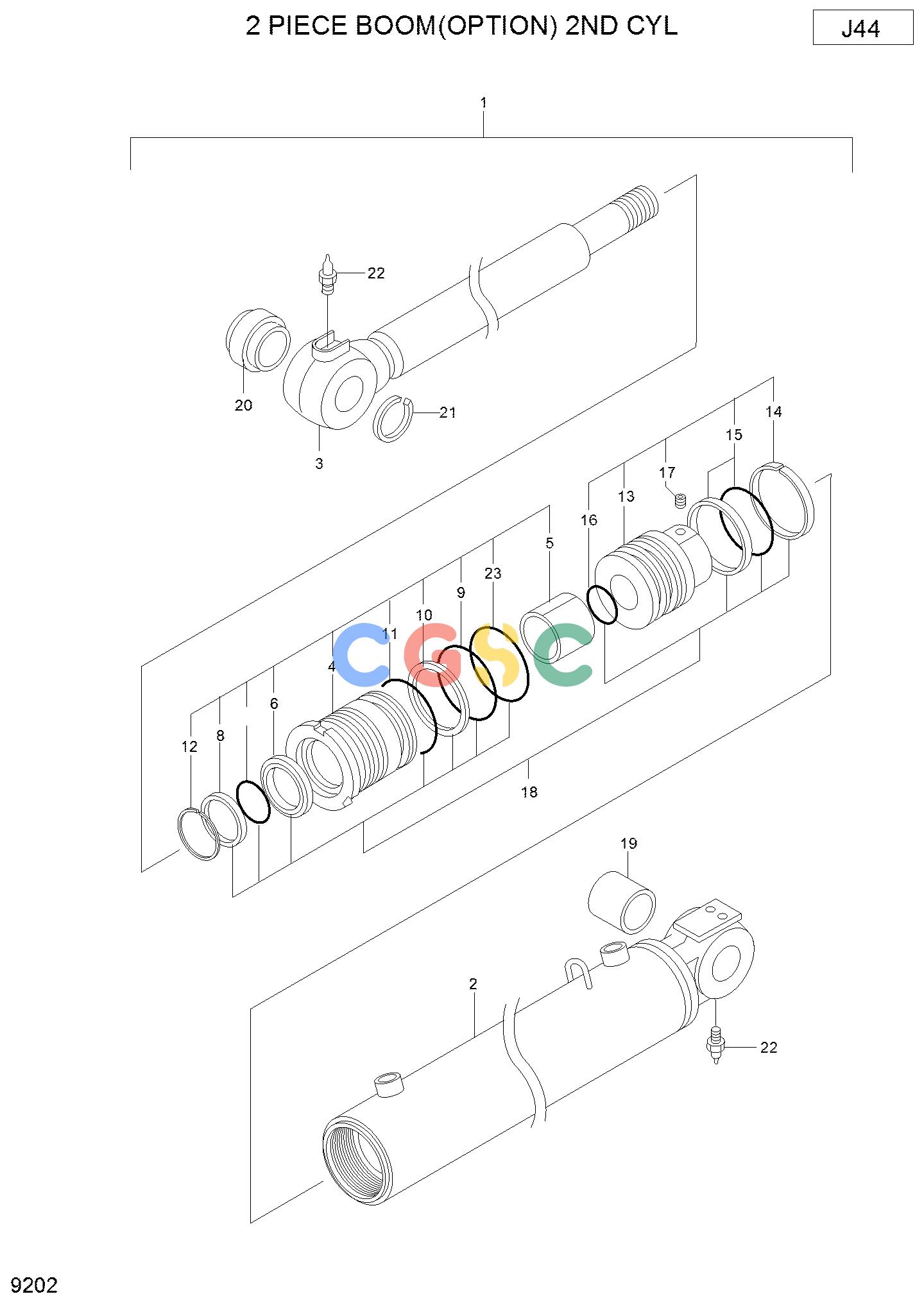

现代零件查询R75-7 2 PIECE BOOM(OPTION) 2ND CYLEPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
373 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-02407
|
[1] |
BOOM CYL-2ND
|
|
| 2. |
XJDH-02408
|
[1] |
TUBE ASSY-CYL
|
|
| 3. |
XJDH-02409
|
[1] |
PISTON ROD ASSY
|
|
| 4. |
XJDH-02410
|
[1] |
HEAD-CYL
|
|
| 5. |
XJDH-02411
|
[1] |
BUSHING
|
|
| 6. |
XJDH-02413
|
[1] |
PACKING-ROD
|
|
| 7. |
XJDH-02414
|
[1] |
RING-BACK UP
|
|
| 8. |
XJDH-02415
|
[1] |
SEAL-DUST
|
|
| 9. |
XJDH-02345
|
[1] |
O-RING
|
|
| 10. |
XJDH-02417
|
[1] |
RING-BACK UP
|
|
| 11. |
XJDH-02347
|
[1] |
O-RING
|
|
| 12. |
XJDH-02416
|
[1] |
RING-SNAP
|
|
| 13. |
XJDH-02418
|
[1] |
PISTON
|
|
| 14. |
XJDH-02351
|
[1] |
RING-WEAR
|
|
| 15. |
XJDH-02352
|
[2] |
RING-PISTON
|
|
| 16. |
XJDH-02334
|
[1] |
O-RING
|
|
| 17. |
XJDH-02419
|
[1] |
SCREW-SET
|
|
| 18. |
XJDH-02421
|
[1] |
PACKING ASSY
|
|
| 19. |
XJDH-02420
|
[1] |
BUSHING-PIN
|
|
| 20. |
XJDH-02137
|
[1] |
BUSHING-PIN
|
|
| 21. |
XJDH-02132
|
[1] |
RING-SNAP
|
|
| 22. |
XJDH-00373
|
[2] |
NIPPLE-GREASE
|
|
| 23. |
XJDH-02412
|
[1] |
RING-BUFFER
|
|
