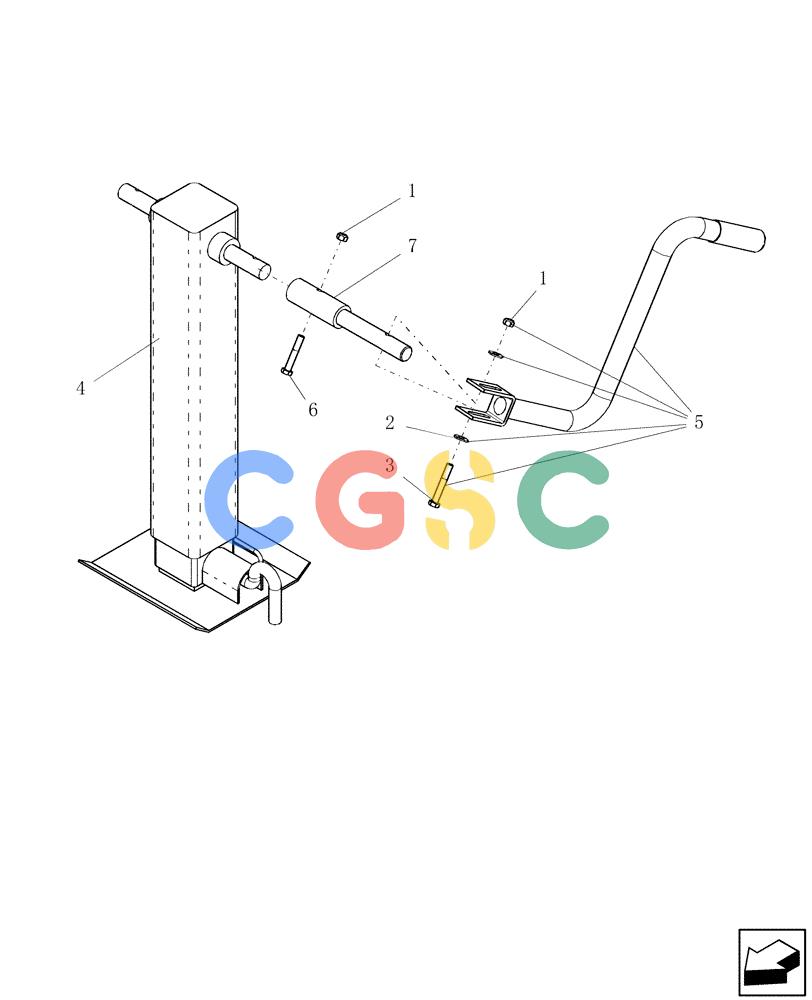

凯斯零件查询(3380) - PRECISION AIR CART (7/08-12/15) (39.100.09) - 10,000 LB JACK ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
278 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 0. |
21803
|
[1] |
JACK
|
FLX
assembly - 10,000lb x 26"
|
| 1. |
88902
|
[2] |
NUT,3/8"-16
|
NH
|
| 2. |
80664
|
[2] |
WASHER,0.38" ID x 0.88" OD x 0.08" Thk
|
NH
|
| 3. |
87936
|
[1] |
BOLT,Hex, 3/8" - 16 x 2 1/2", Gr 5
|
NH
|
| 4. |
22031
|
[1] |
JACK
|
FLX
10,000lb x 26" - without crank Superseded by part number: 21803
|
| 5. |
22032
|
[1] |
CRANK
|
FLX
assy for jack 10000 lb x 26
|
| 6. |
88546
|
[1] |
BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5
|
NH
|
| 7. |
GL-637
|
[1] |
EXTENSION
|
FLX
jack handle
|
