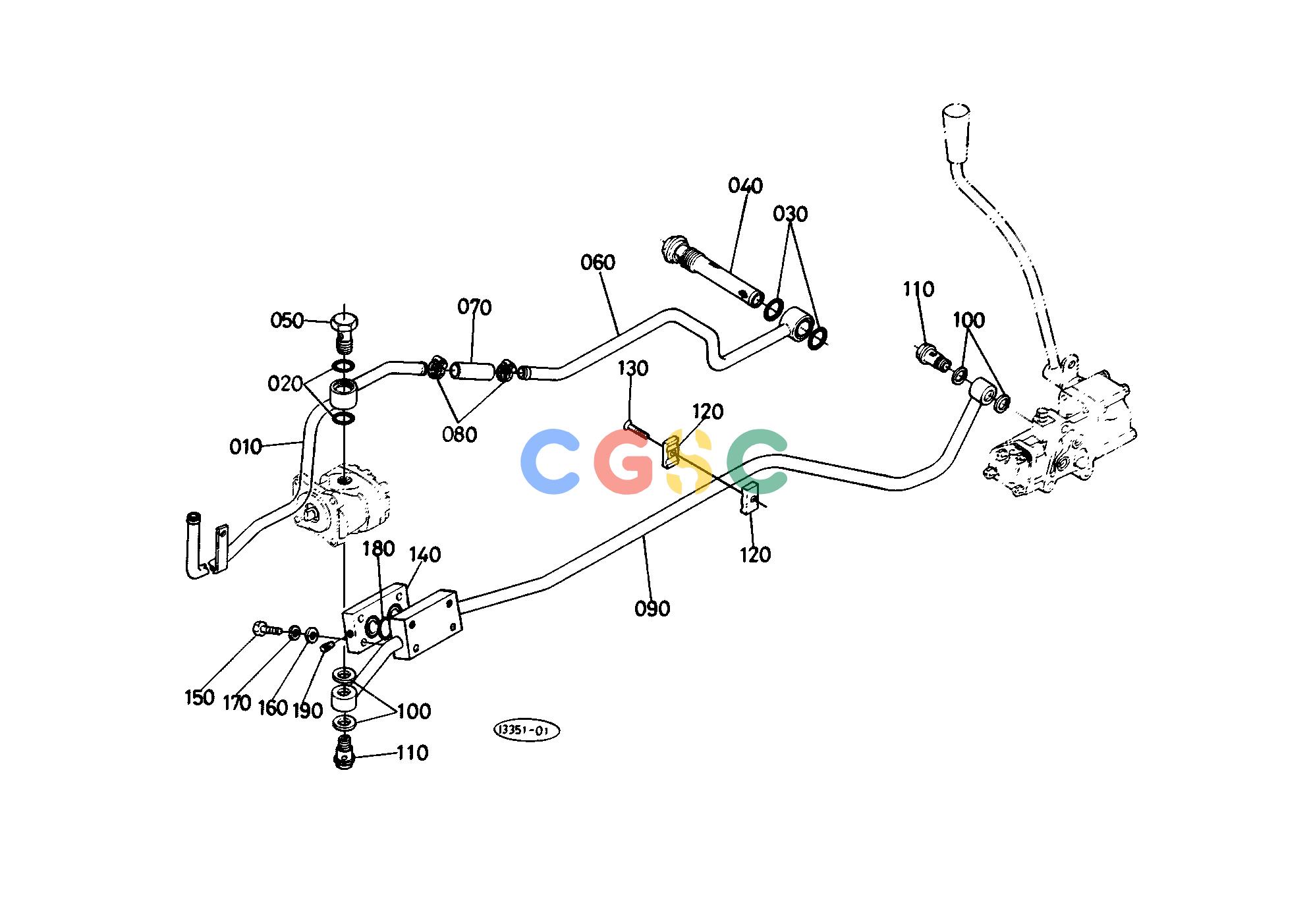

久保田零件查询T07500 HYDRAULIC PIPE 1 HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
921 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6620436110
|
[1] |
PIPE SUCTION FRONT
|
1.3200(lbs); 0.600
|
| 020. |
0481100220
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0481110300
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
6602136390
|
[1] |
FILTER OIL
|
0.4070(lbs); 0.185
|
| 050. |
3217038170
|
[1] |
BOLT HYD.PIPE JOINT
|
0.1980(lbs); 0.090
|
| 060. |
6620436712
|
[1] |
PIPE SUCTION REAR
|
1.4520(lbs); 0.660
|
| 070. |
6620436720
|
[1] |
HOSE
|
0.0880(lbs); 0.040
|
| 080. |
6620436230
|
[2] |
BAND PIPE
|
0.0440(lbs); 0.020
|
| 090. |
6620436136
|
[1] |
PIPE DELIVERY
|
2.8600(lbs); 1.300
|
| 100. |
6711137180
|
[4] |
GASKET
|
0.0066(lbs); 0.003
|
| 110. |
6659136250
|
[2] |
JOINT
|
0.1760(lbs); 0.080
|
| 120. |
6620436120
|
[2] |
CLAMP PIPE
|
0.0220(lbs); 0.010
|
| 130. |
0301650640
|
[1] |
SCREW CSK-HD
|
0.0176(lbs); 0.008
|
| 140. |
6660436160
|
[1] |
COVER
|
0.5060(lbs); 0.230
|
| 150. |
0115350838
|
[4] |
BOLT
|
0.0374(lbs); 0.017
|
| 160. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
| 170. |
0451250080
|
[4] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 180. |
0481100200
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 190. |
0631210020
|
[1] |
PLUG
|
0.0352(lbs); 0.016
|
