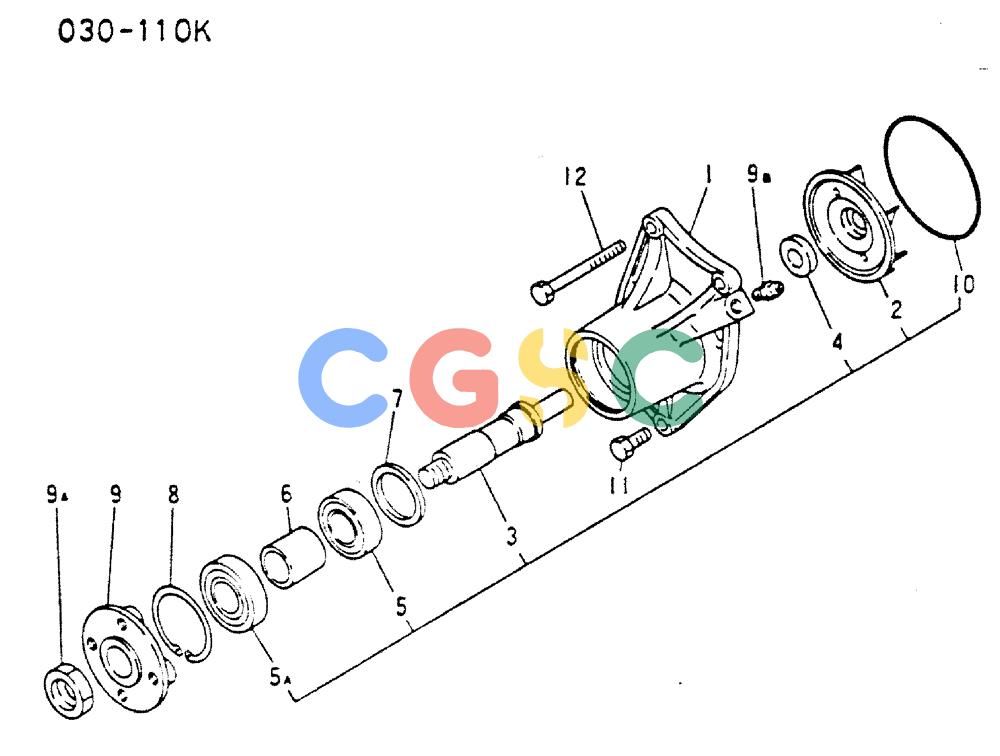

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-033) - WATER PUMP 030-110K Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1008 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-9B. | VAME088537 | [1] | WATER PUMP | KOBASSY Superseded by part number: VAME996874 |
| 1. | VAME088538 | [1] | CASE | KOBCASE, WATER PUMP |
| 2-5A, 10. | VAME999619 | [1] | KIT, ENGINE TOP GASK | KOBWATER PUMP REPAIR FOR SERVICE ONLY |
| 2. | VAME018095 | [1] | IMPELLER | KOB |
| 3. | VAME080033 | [1] | SHAFT | KOBSHAFT, PUMP |
| 4. | VAMH034026 | [1] | SEAL | KOBSEAL, UNIT |
| 5. | VAMS556065 | [1] | BEARING | KOBBEARING, BALL |
| 5A. | VAMS556185 | [1] | BEARING | KOBBEARING, BALL Superseded by part number: VAF801206305 |
| 6. | VAME920030 | [1] | SPACER | KOB |
| 7. | VA3114502900 | [1] | WASHER | KOB |
| 8. | VAMF522236 | [1] | SNAP RING | KOBRING, SNAP 62 |
| 9. | VAME039863 | [1] | FLANGE | KOB |
| 9A. | VAMF430732 | [1] | NUT | KOBNUT 22 |
| 9B. | VAMF524002 | [1] | LUBE NIPPLE | KOB |
| 10. | VAMF520416 | [1] | O-RING | KOB0-RING 100 |
| 11. | VAMF140229 | [2] | BOLT | KOBBOLT, FLANGE 8 X 30 |
| 12. | VAMF140244 | [2] | BOLT | KOBBOLT, FLANGE 8 X 90 |
