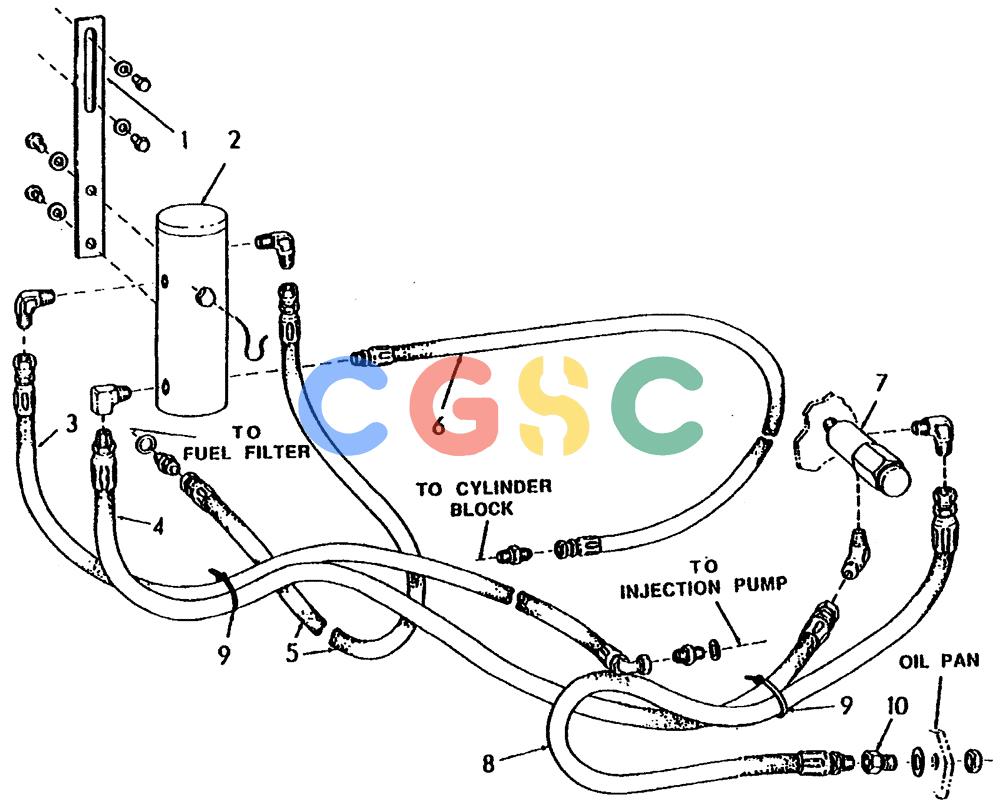

纽荷兰零件查询(65B) - MOTORGRADERS (A2.21/1[001]) - EMERGENCY FUEL SHUT-OFF New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
692 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73124215 | [1] | PLATE | CMI |
| . . | 70927612 | [2] | SCREW | CMICAPSCREW,3/16''NCX5/8"" |
| . . | 70929662 | [2] | WASHER | CMI |
| 2. | 73128240 | [1] | CONTROL | CMI |
| . . | 70927400 | [2] | BOLT | BHBCAPSCREH, 3/8 ""NCX5/8 "" |
| . . | 74355843 | [1] | CABLE | CMIWIRE |
| . . | 70929755 | [2] | WASHER | CMI |
| 3. | 73124281 | [1] | FLEXIBLE HOSE | CMIHOSE |
| . . | 70919136 | [1] | ELBOW | CMI3/8"" Superseded by part number: 235131 |
| . . | 70950969 | [1] | HYD CONNECTOR | CMIADAPTER, 3/8"" |
| . . | 10280060 | [1] | SEAL,M14.2 x 20 x 1.5 | TTF6ASKET Superseded by part number: 4858608 |
| 4. | 73124277 | [1] | FLEXIBLE HOSE | CMIHOSE Superseded by part number: REFERENCE |
| . . | 70923690 | [1] | HYD CONNECTOR | CMIELBOW, 90° 1/8 ""NPT |
| . . | 70922872 | [1] | ELBOW | CMI1/2"" |
| 5. | 73124280 | [1] | FLEXIBLE HOSE | CMIHOSE Superseded by part number: REFERENCE |
| . . | 73124229 | [1] | ADAPTER | CMI |
| 6. | 73124278 | [1] | FLEXIBLE HOSE | CMIHOSE Superseded by part number: REFERENCE |
| . . | 73116327 | [1] | HYD CONNECTOR | CMICONNECTOR |
| 7. | 73149350 | [1] | SWITCH | NH |
| 8. | 73124279 | [1] | FLEXIBLE HOSE | CMIHOSE Superseded by part number: REFERENCE |
| 9. | 70196765 | [6] | CABLE RETAINER | BHBSTRAP Superseded by part number: 75201642 |
| 10. | 73125446 | [1] | ADAPTER | CMI |
| . . | 10303360 | [1] | SEAL,27mm ID x 32mm OD x 1.5mm Thk | MKTWASHER |
| . . | 70911174 | [1] | NUT | BHB1 ""NF |
