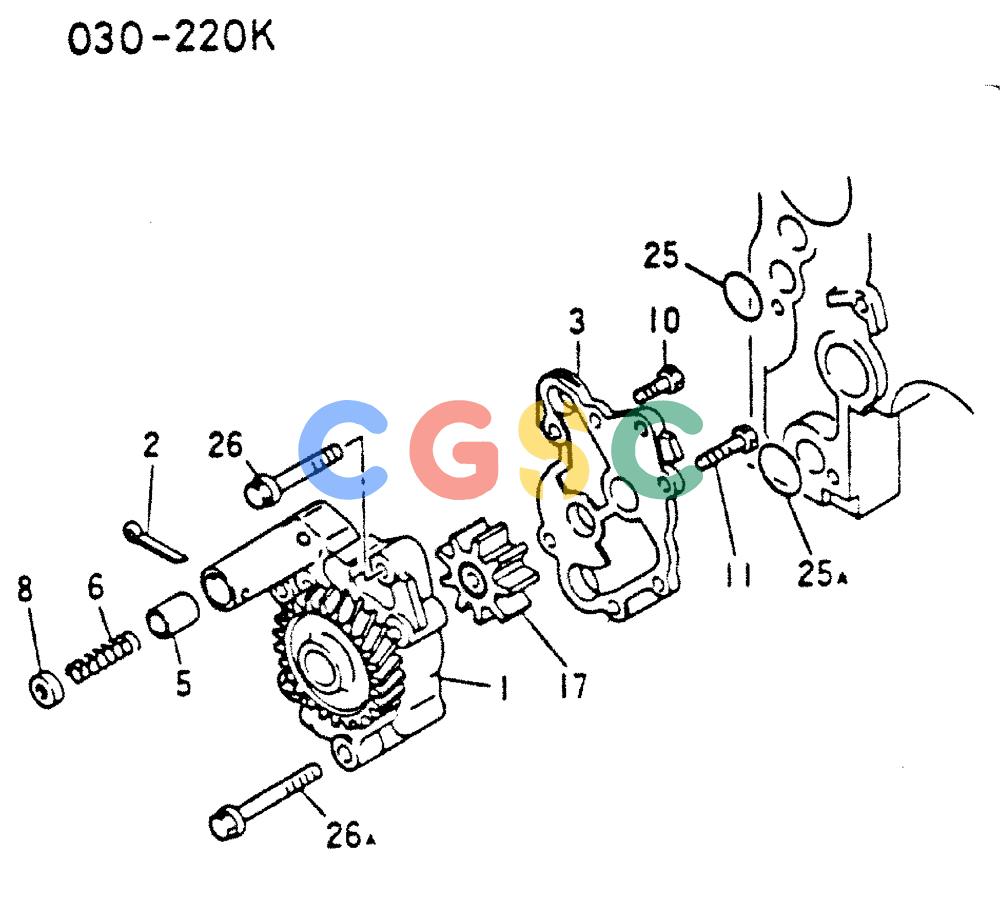

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (17-039) - OIL PUMP & GEAR TRAIN 030-220K Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
657 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1-17. | VAME013163 | [1] | ENGINE OIL PUMP | KOBOIL PUMP ASSY Superseded by part number: VAME014230 |
| 1. | VAME013076 | [1] | OIL PUMP CASE ASSY | |
| 2. | VAMF472085 | [1] | PIN | KOBPIN 4 X 30 |
| 3. | VAME013077 | [1] | COVER, PUMP CASE | |
| 5. | VAME014473 | [1] | VALVE | KOBRELIEF |
| 6. | VAME013079 | [1] | SPRING | KOBRELIEF VALVE |
| 8. | VAME013080 | [1] | CARRIER FLANGE SEAL | KOB |
| 10. | VAMF100055 | [2] | BOLT | KOB8 X 20 |
| 11. | VAMF100059 | [2] | BOLT | KOBBOLT 8 X 30 |
| 17. | VAME013078 | [1] | GEAR, DRIVEN | |
| 25. | VAMH035178 | [1] | O-RING | KOBO-RING 21.8 |
| 25A. | VAMH035179 | [1] | O-RING | KOB0-RING 25.7 |
| 26. | VAMF140234 | [1] | SPECIAL BOLT | KOBBOLT, FLANGE 8 X 45 |
| 26A. | VAMF140236 | [2] | BOLT | KOBBOLT, FLANGE 8 X 55 Superseded by part number: VAMF140235 |
