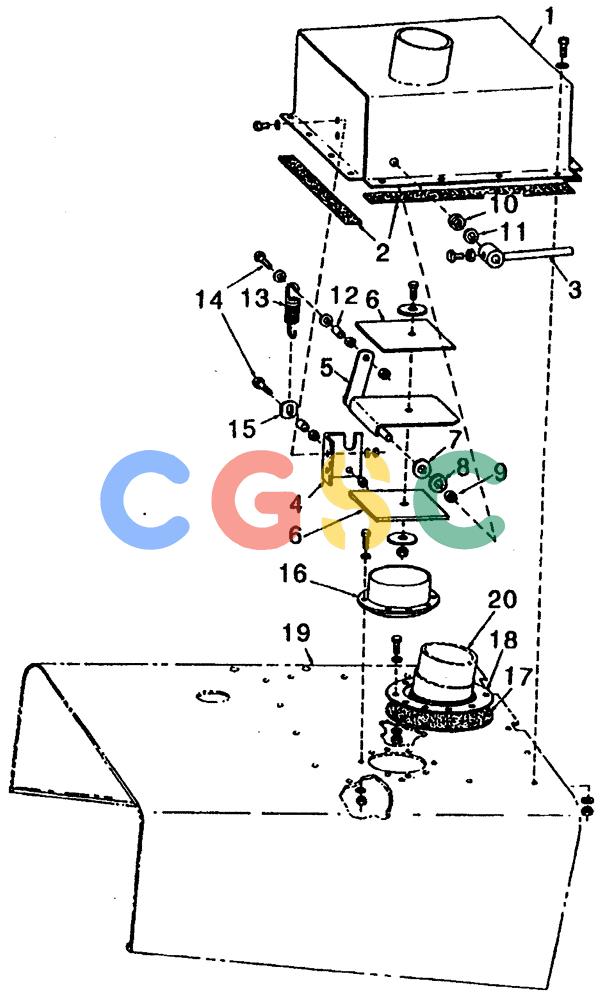

纽荷兰零件查询(65B) - MOTORGRADERS (A2.22/1[001]) - INSIDE-OUTSIDE AIR INTAKE GROUP New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
972 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 73123802 | [1] | BOX | CMI |
| . . | 70922706 | [15] | SCREW | CMICAPSCREW,#10NF X 3/4"" |
| . . | 70910243 | [30] | WASHER | CMIHASHER |
| . . | 70926024 | [15] | NUT | CMILOCKNUT,#10NF |
| 2. | 73123786 | [1] | RING | CMISEAL |
| 3. | 73123852 | [1] | SUPPORT | CMILEVER |
| . . | 70900366 | [1] | NUT | CMI5/16""NC Superseded by part number: 280370 |
| . . | 70901274 | [1] | SCREW | CMI5/16""NC X 1"" |
| 4. | 73123781 | [1] | BRACKET | CMI |
| . . | 70927541 | [2] | SCREW | BHBCAPSCREW,1/4''NC X 3/4"" Superseded by part number: 281032 |
| . . | 70928190 | [2] | WASHER | BHB |
| . . | 70910285 | [2] | LOCK WASHER | BHBLOCKHASHER Superseded by part number: 70919310 |
| . . | 70911024 | [2] | NUT | BHB1/4""NC Superseded by part number: 70900365 |
| 5. | 73123808 | [1] | COVER | CMI |
| 6. | 73123804 | [2] | RING | CMISEAL |
| . . | 70906989 | [2] | WASHER | CMI |
| 7. | 70653741 | [1] | WASHER | CMI |
| 8. | 70695585 | [1] | WASHER | CMI |
| 9. | 70689640 | [1] | BUSHING | CMIBEARING |
| 10. | 70057101 | [1] | WASHER | CMISPACER |
| 11. | 70650586 | [1] | WASHER | CMI |
| 12. | 73124012 | [2] | SPACER | CMI |
| 13. | 70034253 | [1] | SPRING | CMI |
| 14. | 70921383 | [2] | SCREW | CMICAPSCREW,1/4""NCX1-1/2"" |
| 15. | 73123857 | [1] | CONNECTING LINK | CMILINK |
| 16. | 73123846 | [1] | RIGID TUBE | CMITUBE |
| 17. | 73123803 | [1] | RING | CMISEAL |
| 18. | 73123858 | [1] | FLANGE | CMI |
