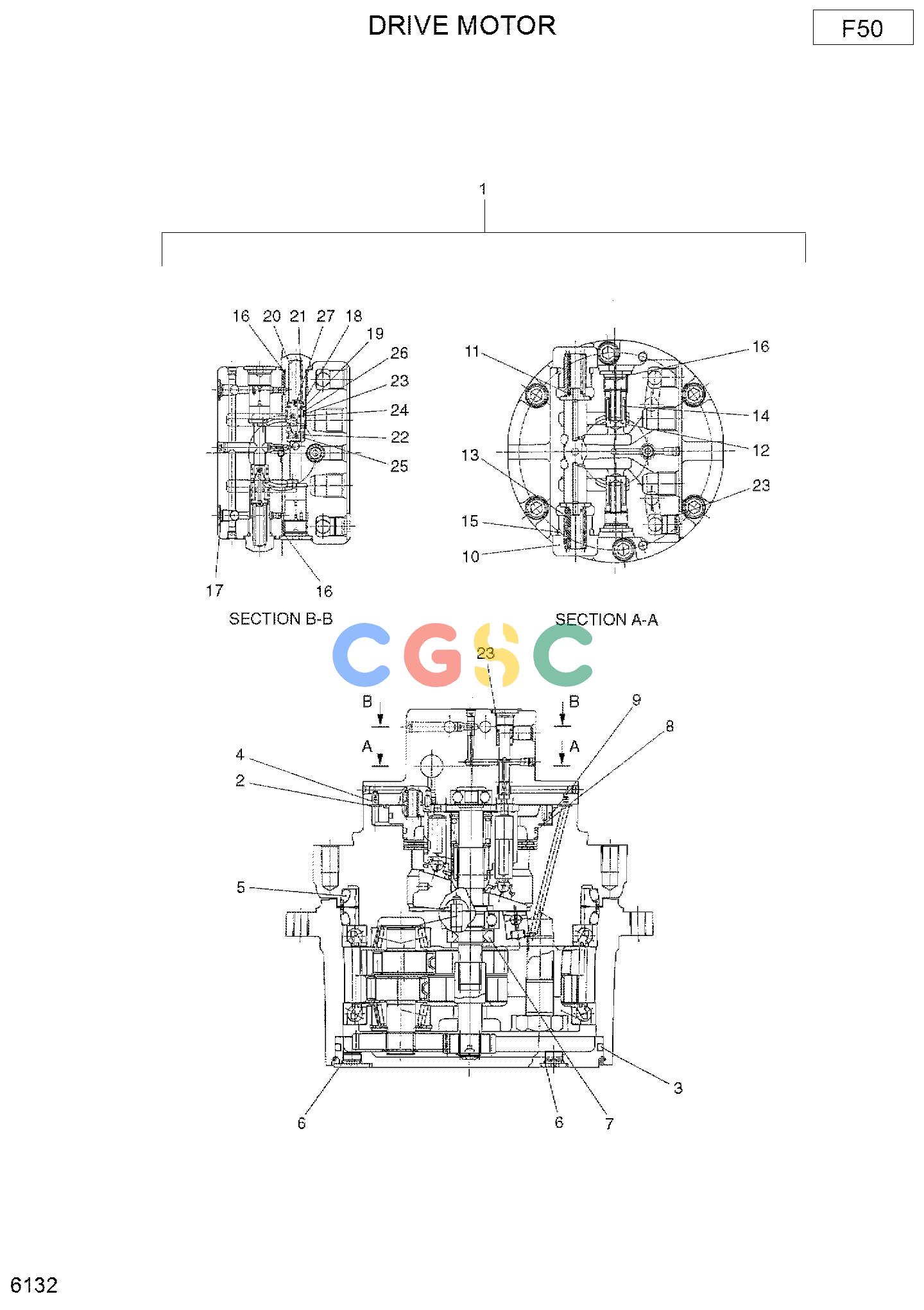

现代零件查询R75-7 DRIVE MOTOREPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
254 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-01749
|
[2] |
MOTOR ASSY-DRIVE
|
|
| 2. |
XJDH-02364
|
[2] |
O-RING
|
|
| 3. |
XJDH-02365
|
[1] |
O-RING
|
|
| 4. |
XJDH-02366
|
[1] |
O-RING
|
|
| 5. |
XJDH-02367
|
[2] |
SEAL-FLOATING
|
|
| 6. |
XJDH-02368
|
[3] |
O-RING
|
|
| 7. |
XJDH-02369
|
[1] |
SEAL-OIL
|
|
| 8. |
XJDH-02370
|
[1] |
O-RING
|
|
| 9. |
XJDH-02371
|
[1] |
O-RING
|
|
| 10. |
@
|
[2] |
PLUG
|
|
| 11. |
@
|
[2] |
RETAINER-SPRING
|
|
| 12. |
@
|
[2] |
VALVE
|
|
| 13. |
@
|
[2] |
SPRING
|
|
| 14. |
@
|
[2] |
SPRING
|
|
| 15. |
XJDH-02372
|
[2] |
O-RING
|
|
| 16. |
XJDH-02373
|
[6] |
O-RING
|
|
| 17. |
XJDH-02364
|
[2] |
O-RING
|
|
| 18. |
@
|
[2] |
VALVE
|
|
| 19. |
@
|
[2] |
SLEEVE
|
|
| 20. |
@
|
[2] |
PLUG
|
|
| 21. |
@
|
[2] |
SPRING
|
|
| 22. |
XJDH-02374
|
[2] |
O-RING
|
|
| 23. |
XJDH-02368
|
[4] |
O-RING
|
|
| 24. |
XJDH-02375
|
[2] |
SEAL-PISTON
|
|
| 25. |
XJDH-02376
|
[4] |
RING-BACK UP
|
|
| 26. |
XJDH-02377
|
[4] |
RING-BACK UP
|
|
| 27. |
XJDH-02378
|
[2] |
ORIFICE
|
|
