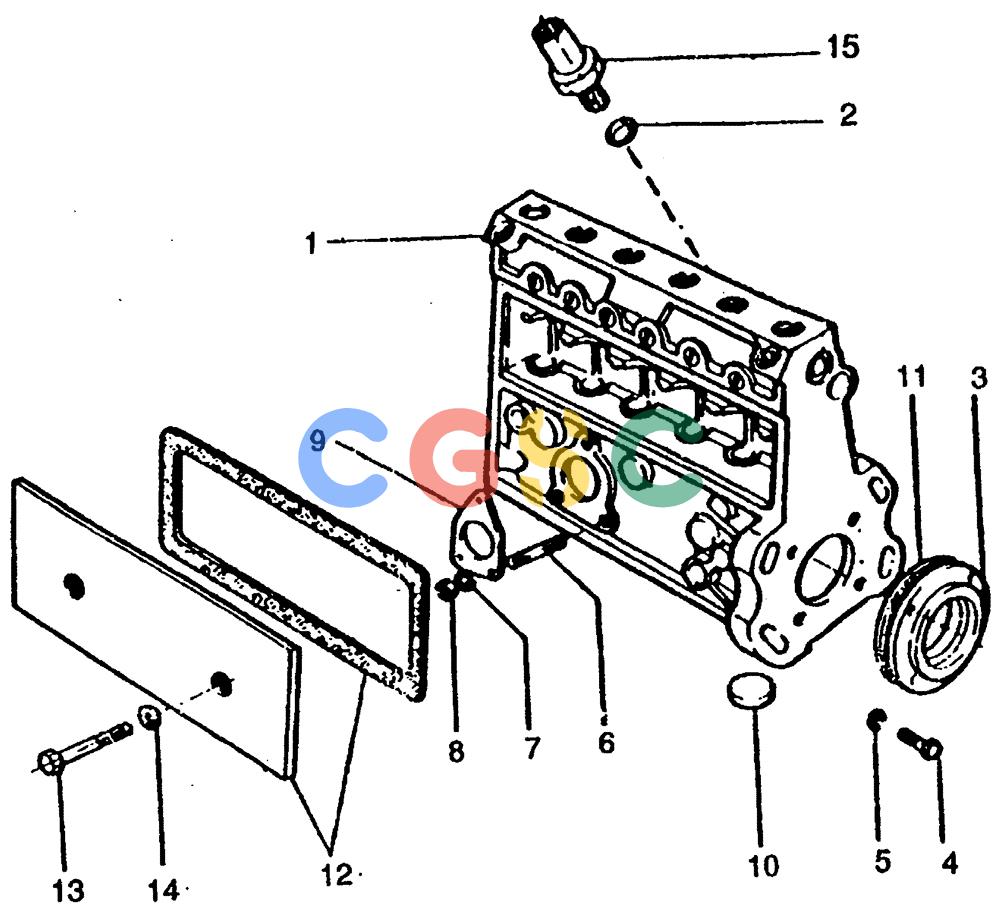

纽荷兰零件查询(65B) - MOTORGRADERS (A2.27/1[001]) - INJECTION PUMP HOUSING New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
974 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 774074 | [1] | BODY | MODHOUSING |
| 2. | 773283 | [1] | SEAL | MOD Superseded by part number: 4858608 |
| 3. | 9929211 | [1] | COVER | MOD |
| 4. | 10376821 | [4] | SCREW | MKT6X18 |
| 5. | 10569279 | [4] | LOCK WASHER | LEC |
| 6. | 11500210 | [3] | STUD | MKT Superseded by part number: 11500221 |
| 7. | 06455742 | [3] | WASHER, LOCK | FOLOCKWASHER Superseded by part number: 86517328 |
| 8. | 15896221 | [3] | NUT,Hex, M6, 5.20mm High, Cl 10 | ZED Superseded by part number: 86500688 |
| 9. | 772303 | [1] | SEAL | MOD Superseded by part number: 79038466 |
| 10. | MOD773251 | [6] | PLUG | MOD |
| 11. | 773223 | [1] | GASKET | MOD Superseded by part number: |
| 12. | 775333 | [1] | COVER | MOD |
| 13. | 775335 | [2] | SCREW | MOD |
| 14. | 775336 | [2] | GASKET | MODWASHER |
| 15. | 774349 | [1] | PRESSURE RELIEF VALVE | NNAVALVE Superseded by part number: 51200287, 51200287, 51219673 |
