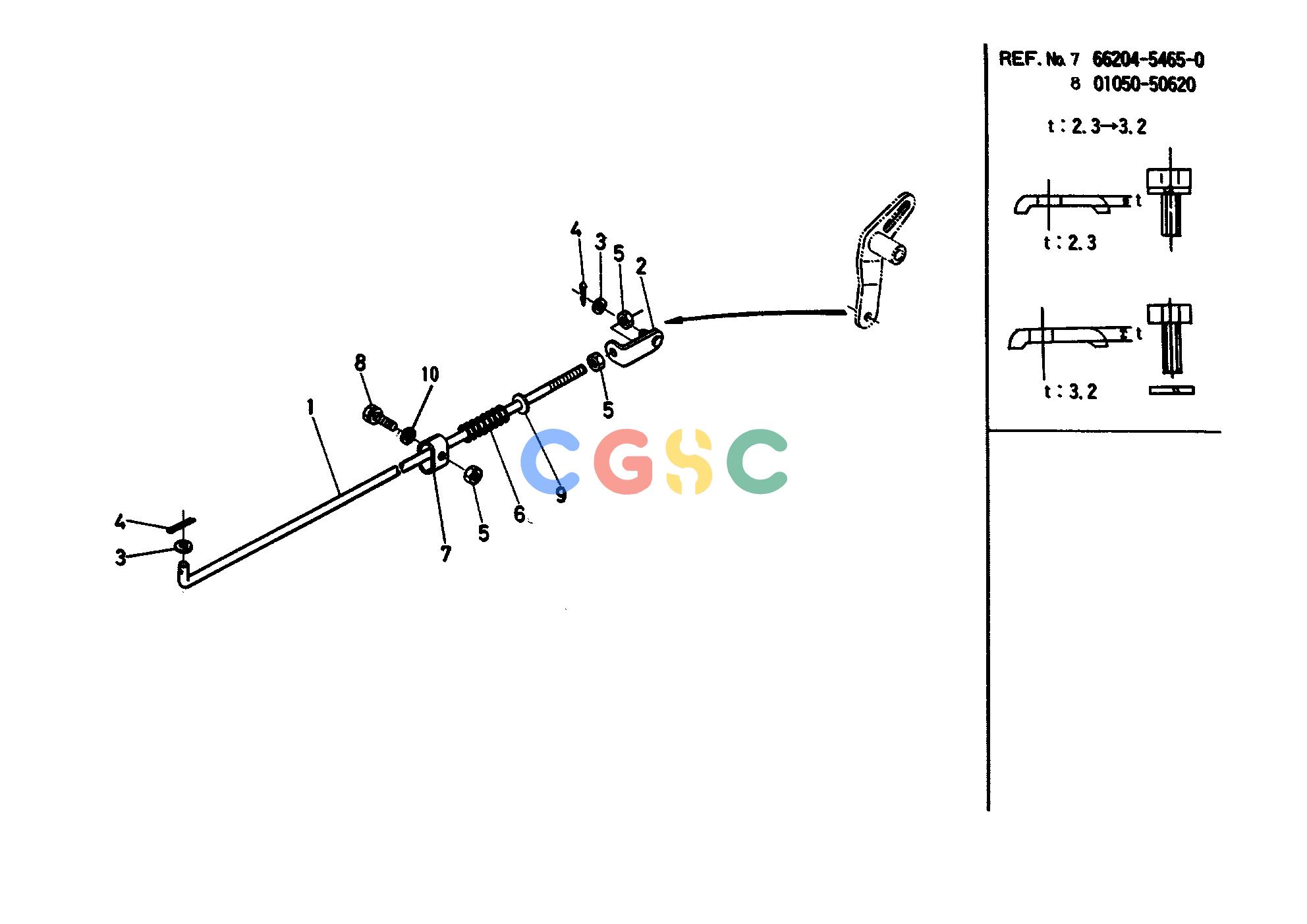

久保田零件查询T04400 ACCELERATOR PEDAL ENGINEEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
864 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6620443210
|
[1] |
ROD RELEASE
|
0.3300(lbs); 0.150
|
| 002. |
6671143220
|
[1] |
METAL
|
0.0506(lbs); 0.023
|
| 003. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 004. |
0551151612
|
[2] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 005. |
0201450060
|
[3] |
NUT
|
0.0044(lbs); 0.002
|
| 006. |
6620443272
|
[1] |
SPRING
|
0.0308(lbs); 0.014
|
| 007. |
6659154650
|
[2] |
HOOK
|
0.0132(lbs); 0.006
|
| 007. |
6620454650
|
[2] |
HOOK
|
0.0154(lbs); 0.007
|
| 008. |
0102050616
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
| 008. |
0105050620
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
| 009. |
0401550060
|
[1] |
WASHER PLAIN
|
0.0132(lbs); 0.006
|
| 010. |
0451250060
|
[1] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
