纽荷兰零件查询(65B) - MOTORGRADERS (A2.35[001A]) - NOZZLE HOLDER ASSEMBLY (BOSCH KBEL 83 S…) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
284 次

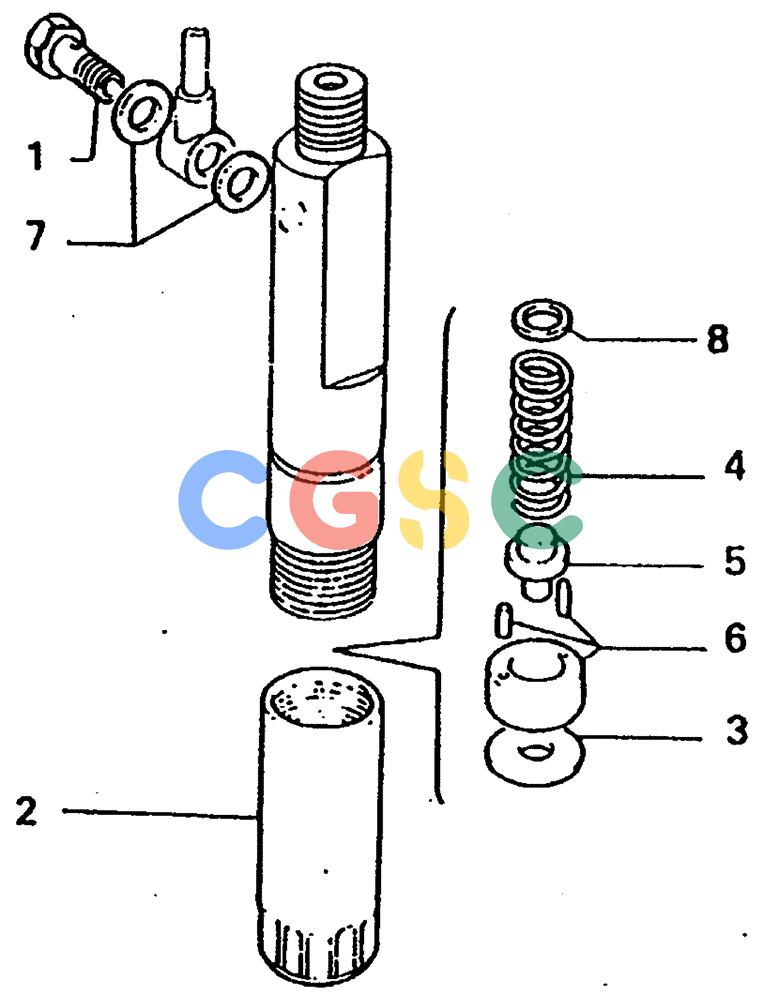

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 4791124 | [1] | NOZZLE HOLDER | TORHOLDER, NOZZLE |
| 1. | 9960639 | [1] | BANJO BOLT | MODUNION Superseded by part number: 9982964 |
| 2. | 9960640 | [1] | NUT | MOD Superseded by part number: 7984584 |
| 3. | 9960641 | [1] | WASHER | MKT Superseded by part number: 9960644 |
| 4. | 9960642 | [1] | SPRING | MOD Superseded by part number: 42490267 |
| 5. | 9960643 | [1] | PIN | MOD Superseded by part number: 42490268 |
| 6. | 9960644 | [1] | SPACER | MODPLATE Superseded by part number: 42490269 |
| 7. | 9929742 | [2] | SEAL | TOR Superseded by part number: 1118641 |
| 8. | 9960645 | [1] | SHIM | MKTADJUSTMENT Superseded by part number: 79067856 |
