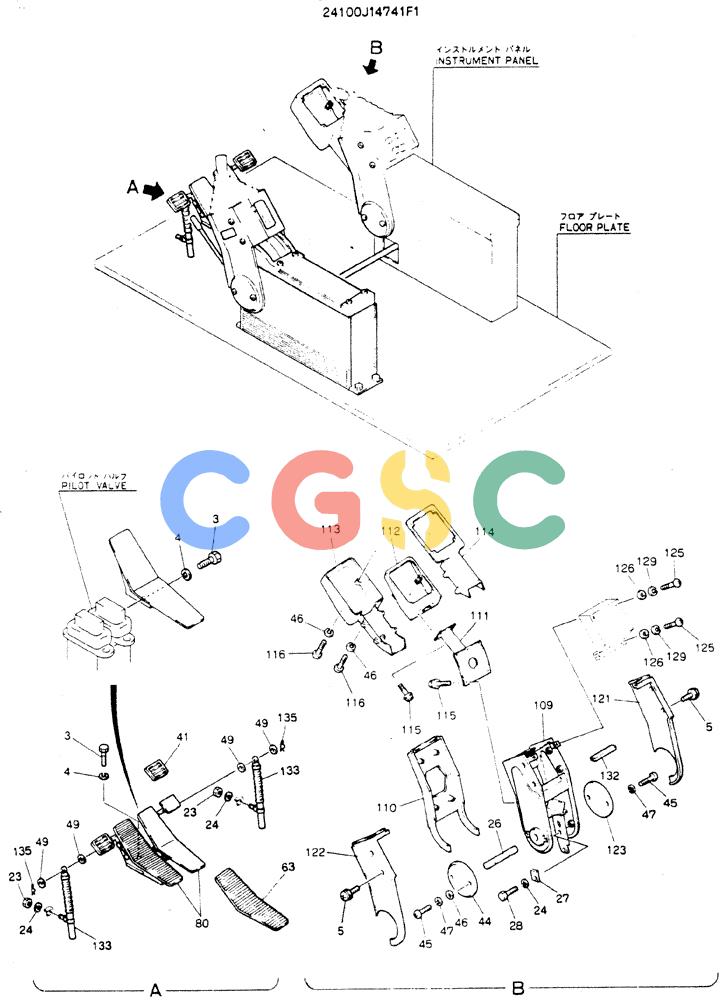

神钢零件查询(MD200C) - EXCAVATOR BTW YQU0701 - YQU2000 (1/80-12/06) (03-001[01]) - CONTROL ASSY (WRIST) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
814 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 24100J14741F1 | [1] | CONTROL ASSY | |
| 3. | ZS18C10020 | [4] | SCREW,Hex, M10 x 20mm | KOBM10x1.50x20mm |
| 4. | ZW26X10000 | [12] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
| 5. | 2420R600D2 | [8] | SCREW,M6 x 16mm | KOBM06x1.0x16mm (Incls. Washer & Lockwasher) Superseded by part number: ZM46C06016 |
| 7. | 2414N4115D2 | [1] | COVER | KOB |
| 8. | 2414N4116D2 | [1] | COVER | KOB |
| 9. | 2414N4117D2 | [1] | COVER | KOB |
| 11. | 2414N4487D2 | [1] | COVER | KOB |
| 12. | 2420R600D3 | [4] | SCREW,M6 x 20mm | KOBM06x1.0x20mm (Incls. Washer & Lockwasher) Superseded by part number: ZM46C06020 |
| 14. | 2420R600D4 | [12] | BOLT,M6 x 30mm | KOBM06x1.0x30mm (Incls. Washer & Lockwasher) Superseded by part number: ZM46C06030 |
| 15. | 2414P7004 | [1] | COVER | KOB |
| 16. | ZW16X10000 | [8] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 20. | ZS18C10025 | [4] | SCREW,Hex, M10 x 25mm | KOBM10x1.50x25mm |
| 21. | 2414N4555 | [1] | BATTERY BOX | KOB |
| 23. | ZN18C08007 | [4] | NUT | KOBM08x1.25mm |
| 24. | ZW26X08000 | [4] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 26. | 2419T4776 | [2] | SHAFT | KOB |
| 27. | 2418T17873 | [2] | PLATE | KOB |
| 28. | ZS18C08020 | [2] | SCREW,Hex, M8 x 20mm | KOBM08x1.25x20mm |
| 29. | 2479Z2810 | [1] | SWITCH | KOBLIMIT |
| 31. | 2419R9D3 | [4] | PIN | KOBHair -- OD 10mm x 32.6mm Long |
| 32. | 2406R490F2 | [1] | LOCK | KOB Superseded by part number: 2406R509F2 |
| 32-2. | 2406R269S2 | [1] | YOKE | HIT |
| 32-3. | 2406R490S3 | [1] | WIRE HARNESS | KOBCABLE ASSY |
| 33. | 2406R501F1 | [1] | LH DOOR LOCK | KOB |
| 33-1. | 2406R491S1 | [1] | WIRE HARNESS | KOBCABLE ASSY |
| 33-2. | 2406R269S2 | [1] | YOKE | HIT |
| 34. | 2406Z255 | [2] | ROD | KOBEND |
| 35. | ZN18C14011 | [4] | NUT | KOBM14x2.0mm |
| 36. | ZW26X14000 | [1] | WASHER | KOBID 14 x OD 24.5 x Th 3.5mm |
| 37. | 2410P809 | [1] | ROLLER SHAFT | KOB |
| 38. | ZS18C14040 | [1] | SCREW,Hex, M14 x 40mm | KOBM14x2.0x40mm |
| 39. | 2419T6059 | [2] | PIN | KOB |
| 40. | 2419T3841D2 | [2] | PIN | KOB |
| 41. | 2427Z560 | [2] | COVER | KOB |
| 42. | 2414P7482D2 | [1] | COVER | KOB |
| 43. | 2414T5254 | [1] | COVER | |
| 44. | 2414T5142 | [2] | COVER | KOB |
| 45. | 2420Z1229D2 | [8] | SCREW | KOBMACHINE |
| 46. | 2418Z725D4 | [13] | WASHER | KOBID 04 x OD 08.0 x Th 0.8mm |
| 47. | 2418Z726D4 | [8] | LOCK WASHER | KOBID 04 x OD 7.6 x Th 1.0mm |
| 48. | ZW16X14000 | [1] | WASHER | KOBID 14 x OD 28 x Th 3.2mm |
| 49. | ZW16X08000 | [3] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 50. | 2414P7288 | [2] | COVER | KOB |
| 51. | 2414P7289D2 | [1] | COVER | KOB |
| 56. | 2414Z270D1 | [1] | CAP | KOB |
| 63. | 2414R275 | [2] | COVER | KOB |
| 80. | 24100P3653F1 | [1] | PEDAL ASSY (SEE FIGURE 03-004) | |
| 96. | 2427Z1389 | [2] | FOAM INSULATION | KOBSOUND |
| 100. | 2414J2796 | [1] | STAND | KOB |
| 100-10. | 2405R61D11 | [2] | BUSHING | KOB |
| 100-20. | 2405R61D19 | [1] | BUSHING | KOB |
| 102. | 2414P8239 | [1] | COVER | KOB |
| 106. | 2406P5350 | [1] | LEVER | KOB |
| 108. | ZP26D05025 | [1] | ROLL PIN | KOBOD 05 x 25mm Long |
| 109. | 2414N4690 | [1] | BOX | KOB |
| 110. | 2414N4708 | [1] | COVER | KOB |
| 111. | 2416P16513 | [1] | SUPPORT | KOB |
| 112. | 2416P16866 | [1] | U-BRACKET | KOB |
| 113. | 2414N4630 | [1] | COVER | KOB |
| 114. | 2414N4629 | [1] | COVER | KOB |
| 115. | 2420R944D2 | [8] | BOLT | KOBSEMS |
| 116. | 2420Z1229D1 | [7] | SCREW | KOBMACHINE |
| 118. | 2406R286 | [1] | GRIP | KOB |
| 119. | 2414T4929 | [1] | COVER | KOB |
| 120. | 2418T22680 | [1] | PLATE | KOB |
| 121. | 2414N4700 | [1] | COVER | KOB |
| 122. | 2414N4701 | [1] | COVER | KOB |
| 123. | 2414T4938 | [1] | COVER | KOB |
| 124. | ZS18C05012 | [2] | SCREW,Hex, M5 x 12mm | KOBM05x0.8x12mm |
| 125. | 2420Z1226D1 | [4] | SCREW | KOBMACHINE |
| 126. | 2418Z725D2 | [4] | WASHER | KOBID 05 x OD 10.0 x Th 1.0mm |
| 127. | ZW26X05000 | [2] | LOCK WASHER | KOBLock -- ID 05 x OD 09 x Th 1.3mm |
| 129. | 2418Z726D2 | [4] | LOCK WASHER | KOBID 05 x OD 9.2 x Th 1.3mm Superseded by part number: ZW26X05000 |
| 130. | 2406P5288 | [1] | LEVER | KOB |
| 131. | 24100T775F1 | [1] | LINK ASSY | LINK ASSY |
| 132. | 2405Z160D1 | [1] | BUSHING | KOB |
| 133. | 2415R188F1 | [2] | SHOCK ABSORBER | KOBDAMPER |
| 135. | 2419R9D2 | [2] | COTTER PIN | KOBOD 08mm x 27.7mm Long |
| 136. | 2432T5144 | [1] | LABEL | KOB |
| 137. | ZS18C08025 | [1] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 140. | R16T0137D1 | [4] | WASHER | KOBCone Disk Spring -- ID 12.2 x OD 25 x Th 0.9mm |
| 141. | 2418T10357 | [1] | WASHER | KOBID 13 x OD 30 x Th 3.2mm Superseded by part number: 2418T12345 |
| 142. | ZN18C12010 | [1] | NUT | KOBM12x1.75mm |
