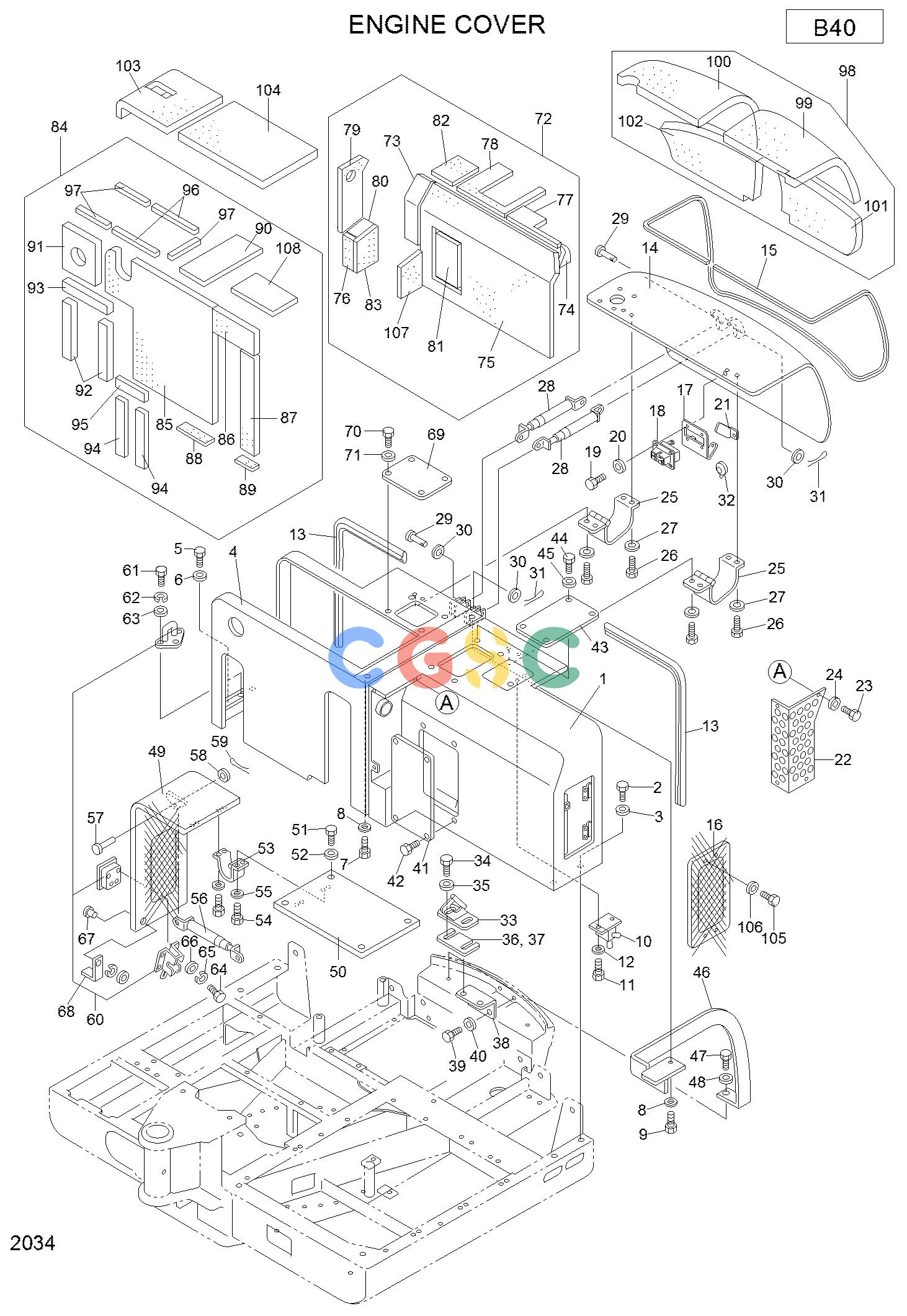

现代零件查询R75-7 ENGINE COVEREPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
1014 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
XJDH-02443
|
[1] |
COVER-ENGINE(A)
|
|
| 2. |
XJDH-00070
|
[2] |
BOLT
|
|
| 3. |
XJDH-00280
|
[2] |
WASHER
|
|
| 4. |
XJDH-02445
|
[1] |
COVER-ENGINE(B)
|
|
| 5. |
XJDH-00070
|
[3] |
BOLT
|
|
| 6. |
XJDH-00280
|
[3] |
WASHER
|
|
| 7. |
XJDH-00035
|
[1] |
BOLT
|
|
| 8. |
XJDH-00276
|
[3] |
WASHER
|
|
| 9. |
XJDH-00037
|
[2] |
BOLT
|
|
| 10. |
XJDH-00001
|
[1] |
LATCH
|
|
| 11. |
XJDH-00215
|
[2] |
SCREW-PANHEAD
|
|
| 12. |
XJDH-00253
|
[2] |
WASHER
|
|
| 13. |
XJDH-01610
|
[2] |
STRIP-WEATHER
|
|
| 14. |
XJDH-01636
|
[1] |
COVER-ENGINE(C)
|
|
| 15. |
XJDH-00711
|
[1] |
STRIP-WEATHER
|
|
| 16. |
XJDH-01639
|
[1] |
COVER(L)
|
|
| 17. |
XJDH-01811
|
[1] |
BRACKET
|
|
| 18. |
XJDH-01789
|
[1] |
LOCK ASSY
|
|
| 19. |
XJDH-00021
|
[6] |
BOLT
|
|
| 20. |
XJDH-00261
|
[6] |
WASHER
|
|
| 21. |
XJDH-01810
|
[1] |
PLATE
|
|
| 22. |
XJDH-02444
|
[1] |
COVER
|
|
| 23. |
XJDH-00034
|
[4] |
BOLT
|
|
| 24. |
XJDH-00276
|
[4] |
WASHER
|
|
| 25. |
XJDH-01177
|
[2] |
HINGE ASSY
|
|
| 26. |
XJDH-00032
|
[8] |
BOLT
|
|
| 27. |
XJDH-00262
|
[8] |
WASHER
|
|
| 28. |
XJDH-02848
|
[2] |
DAMPER
|
|
| 29. |
XJDH-00513
|
[4] |
PIN-STAY DAMPER
|
|
| 30. |
XJDH-00257
|
[4] |
WASHER
|
|
| 31. |
XJDH-00303
|
[4] |
PIN-SPLIT
|
|
| 32. |
XJDH-01007
|
[1] |
CYLINDER KEY ASSY
|
|
| 33. |
XJDH-01788
|
[1] |
STRIKER
|
|
| 34. |
XJDH-00037
|
[2] |
BOLT
|
|
| 35. |
XJDH-00262
|
[2] |
WASHER
|
|
| 36. |
XJDH-01406
|
[AR] |
SHIM(2.3T)
|
|
| 37. |
XJDH-01407
|
[AR] |
SHIM(1.2T)
|
|
| 38. |
XJDH-01412
|
[1] |
BRACKET ASSY
|
|
| 39. |
XJDH-00058
|
[2] |
BOLT
|
|
| 40. |
XJDH-00264
|
[2] |
WASHER
|
|
| 41. |
XJDH-01607
|
[1] |
COVER
|
|
| 42. |
XJDH-00222
|
[4] |
SCREW-PAN HEAD
|
|
| 43. |
XJDH-01608
|
[1] |
COVER
|
|
| 44. |
XJDH-00032
|
[4] |
BOLT
|
|
| 45. |
XJDH-00276
|
[4] |
WASHER
|
|
| 46. |
XJDH-01635
|
[1] |
BRACKET-ENG COVER
|
|
| 47. |
XJDH-00070
|
[1] |
BOLT
|
|
| 48. |
XJDH-00266
|
[1] |
WASHER
|
|
| 49. |
XJDH-01637
|
[1] |
COVER-ENGINE(D)
|
|
| 50. |
XJDH-01638
|
[1] |
COVER-ENGINE(E)
|
|
| 51. |
XJDH-00032
|
[4] |
BOLT
|
|
| 52. |
XJDH-00276
|
[4] |
WASHER
|
|
| 53. |
XJDH-01145
|
[2] |
HINGE
|
|
| 54. |
XJDH-00035
|
[8] |
BOLT
|
|
| 55. |
XJDH-00276
|
[8] |
WASHER
|
|
| 56. |
XJDH-01765
|
[1] |
DAMPER
|
|
| 57. |
XJDH-00513
|
[2] |
PIN-STAY DAMPER
|
|
| 58. |
XJDH-00257
|
[2] |
WASHER
|
|
| 59. |
XJDH-00303
|
[2] |
PIN-SPLIT
|
|
| 60. |
XJDH-01612
|
[1] |
LOCK-COVWR
|
|
| 61. |
XJDH-00217
|
[3] |
SCREW-SET
|
|
| 62. |
XJDH-00238
|
[3] |
WASHER-SPRING
|
|
| 63. |
XJDH-00253
|
[3] |
WASHER
|
|
| 64. |
XJDH-00210
|
[4] |
SCREW-PANHEAD
|
|
| 65. |
XJDH-00237
|
[4] |
WASHER-SPRING
|
|
| 66. |
XJDH-00251
|
[4] |
WASHER
|
|
| 67. |
XJDH-01007
|
[1] |
CYLINDER KEY ASSY
|
|
| 68. |
XJDH-01611
|
[1] |
PLATE
|
|
| 69. |
XJDH-02464
|
[1] |
PLATE
|
|
| 70. |
XJDH-00034
|
[4] |
BOLT
|
|
| 71. |
XJDH-00276
|
[4] |
WASHER
|
|
| 72. |
XJDH-02470
|
[1] |
FOAM ASSY-URETHAN
|
|
| 73. |
XJDH-02472
|
[1] |
FOAM-URETHAN
|
|
| 74. |
XJDH-02473
|
[1] |
FOAM-URETHAN
|
|
| 75. |
XJDH-01613
|
[1] |
FOAM(C)-URETHAN
|
|
| 76. |
XJDH-02474
|
[1] |
FOAM-URETHAN
|
|
| 77. |
XJDH-01614
|
[1] |
FOAM(E)-URETHAN
|
|
| 78. |
XJDH-01615
|
[1] |
FOAM(F)-URETHAN
|
|
| 79. |
XJDH-02475
|
[1] |
FOAM-URETHAN
|
|
| 80. |
XJDH-02476
|
[1] |
FOAM-URETHAN
|
|
| 81. |
XJDH-01616
|
[1] |
FOAM(I)-URETHAN
|
|
| 82. |
XJDH-01617
|
[1] |
FOAM(J)-URETHAN
|
|
| 83. |
XJDH-02477
|
[1] |
FOAM-URETHAN
|
|
| 84. |
XJDH-02471
|
[1] |
FOAM ASSY-URETHAN
|
|
| 85. |
XJDH-01618
|
[1] |
FOAM(A)-URETHAN
|
|
| 86. |
XJDH-01619
|
[1] |
FOAM(B)-URETHAN
|
|
| 87. |
XJDH-01620
|
[1] |
FOAM(C)-URETHAN
|
|
| 88. |
XJDH-01621
|
[1] |
FOAM(D)-URETHAN
|
|
| 89. |
XJDH-01622
|
[1] |
FOAM(E)-URETHAN
|
|
| 90. |
XJDH-02479
|
[1] |
FOAM-URETHAN
|
|
| 91. |
XJDH-01623
|
[2] |
FOAM(G)-URETHAN
|
|
| 92. |
XJDH-01624
|
[2] |
FOAM(H)-URETHAN
|
|
| 93. |
XJDH-01625
|
[1] |
FOAM(I)-URETHAN
|
|
| 94. |
XJDH-01626
|
[2] |
FOAM(J)-URETHAN
|
|
| 95. |
XJDH-01627
|
[1] |
FOAM(K)-URETHAN
|
|
| 96. |
XJDH-01628
|
[2] |
FOAM(L)-URETHAN
|
|
| 97. |
XJDH-01629
|
[3] |
FOAM(M)-URETHAN
|
|
| 98. |
XJDH-01630
|
[1] |
FOAM ASSY-URETHAN
|
|
| 99. |
XJDH-01631
|
[1] |
FOAM(A)-URETHAN
|
|
| 100. |
XJDH-01632
|
[1] |
FOAM(B)-URETHAN
|
|
| 101. |
XJDH-01633
|
[1] |
FOAM(C)-URETHAN
|
|
| 102. |
XJDH-01634
|
[1] |
FOAM(C)-URETHAN
|
|
| 103. |
XJDH-01605
|
[1] |
FOAM-URETHAN
|
|
| 104. |
XJDH-01606
|
[1] |
FOAM-URETHAN
|
|
| 105. |
XJDH-00019
|
[4] |
BOLT
|
|
| 106. |
XJDH-00274
|
[4] |
WASHER
|
|
| 107. |
XJDH-02478
|
[1] |
FOAM-URETHAN
|
|
| 108. |
XJDH-02480
|
[1] |
FOAM-URETHAN
|
|
